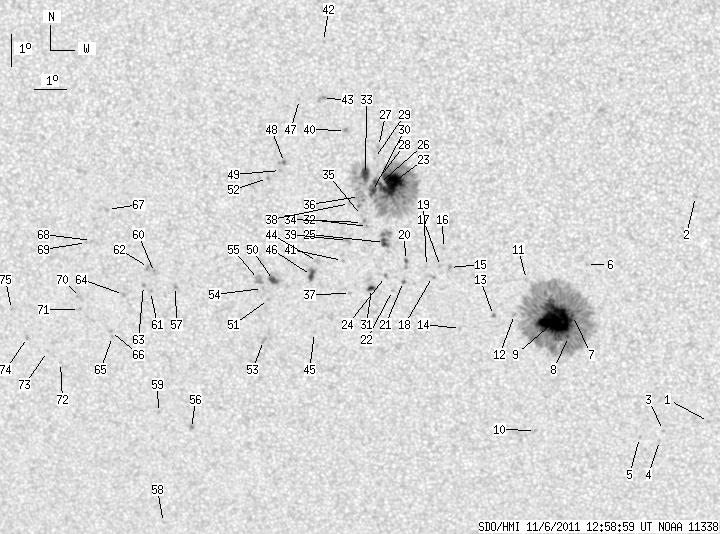

SDO HMI 2011-11-06 12:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.54 | 738.15 | 62.64 | 387.75 | -13.84 | 121.67 | -6.98 | 158.71 | 0.3328 | 467.1 | 298.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-06 12:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.60 | 129.40 | 0.75 | 181.87 | 0.3836 | 787.0 | 634.7 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -11.53 | 128.98 | 0.34 | 181.24 | 0.2663 | 851.0 | 618.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -18.89 | 127.99 | -0.66 | 178.39 | 0.3882 | 738.0 | 592.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -19.21 | 127.86 | -0.78 | 178.11 | 0.3935 | 718.0 | 516.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -19.12 | 127.23 | -1.41 | 176.58 | 0.3924 | 714.0 | 614.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.64 | 125.65 | -2.99 | 170.40 | 0.3059 | -788.0 | -645.6 | |
| 0.95 | 374.48 | 0.50 | 196.85 | -15.24 | 125.20 | -3.45 | 169.93 | 0.3333 | 1194.5 | 444.7 | |
| 0.86 | -7.00 | 0.46 | -7.00 | -15.90 | 125.06 | -3.58 | 169.91 | 0.3445 | 798.3 | 999999 | |
| 54.11 | -7.00 | 28.46 | -7.00 | -15.40 | 124.67 | -3.98 | 168.53 | 0.3375 | 1423.0 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -18.90 | 123.96 | -4.68 | 168.70 | 0.3958 | 761.0 | 688.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.12 | 123.80 | -4.84 | 165.12 | 0.3202 | 744.0 | 535.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -15.22 | 123.41 | -5.24 | 164.89 | 0.3394 | 876.0 | 635.0 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -15.25 | 122.76 | -5.89 | 163.15 | 0.3429 | 774.0 | 576.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.67 | 121.72 | -6.93 | 160.81 | 0.3547 | -753.0 | -607.5 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -13.76 | 121.44 | -7.20 | 158.03 | 0.3270 | -885.0 | -765.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.17 | 121.28 | -7.37 | 156.84 | 0.3190 | -832.0 | -577.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.73 | 121.17 | -7.48 | 157.24 | 0.3283 | -698.0 | -682.1 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -14.05 | 120.91 | -7.74 | 156.92 | 0.3347 | 509.0 | 456.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.73 | 120.73 | -7.91 | 156.07 | 0.3311 | -707.0 | -541.3 | |
| 1.21 | 3.37 | 0.63 | 1.77 | -13.55 | 120.09 | -8.55 | 154.13 | 0.3329 | -719.1 | -527.9 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -14.21 | 120.01 | -8.64 | 154.77 | 0.3432 | 792.0 | 628.9 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -14.50 | 119.65 | -8.99 | 154.25 | 0.3499 | 683.0 | 426.6 | |
| 29.86 | 215.94 | 15.50 | 112.21 | -11.18 | 119.74 | -8.90 | 149.55 | 0.3010 | 1279.9 | 431.8 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.06 | 119.45 | -9.19 | 153.18 | 0.3450 | 788.0 | 675.1 | |
| 4.06 | 13.29 | 2.13 | 6.96 | -13.00 | 119.46 | -9.18 | 151.71 | 0.3295 | -881.1 | -894.1 | |
| 1.04 | -23.00 | 0.54 | -23.00 | -11.18 | 119.37 | -9.27 | 148.54 | 0.3042 | 1054.1 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.04 | 119.38 | -9.27 | 146.45 | 0.2882 | 603.0 | 670.9 | |
| 2.07 | -23.00 | 1.08 | -23.00 | -11.15 | 119.25 | -9.39 | 148.15 | 0.3048 | 1020.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -10.41 | 119.24 | -9.40 | 146.78 | 0.2946 | 824.0 | 617.2 | |
| 4.32 | -23.00 | 2.25 | -23.00 | -11.43 | 119.15 | -9.50 | 148.36 | 0.3097 | 813.6 | 999999 | |
| 2.68 | 4.23 | 1.42 | 2.24 | -14.44 | 119.00 | -9.64 | 152.58 | 0.3539 | 662.8 | 424.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.51 | 118.96 | -9.69 | 149.65 | 0.3266 | 656.0 | 505.7 | |
| 8.54 | -23.00 | 4.44 | -23.00 | -10.91 | 118.95 | -9.69 | 146.90 | 0.3041 | 1099.4 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -12.39 | 118.81 | -9.84 | 149.07 | 0.3262 | 623.0 | 602.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.17 | 118.78 | -9.86 | 148.66 | 0.3233 | 575.0 | 421.3 | |
| 0.00 | 13.81 | 0.00 | 7.20 | -11.59 | 118.74 | -9.90 | 147.56 | 0.3155 | 351.0 | 290.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -14.60 | 118.34 | -10.31 | 151.23 | 0.3613 | 754.0 | 528.7 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -11.81 | 118.43 | -10.22 | 147.13 | 0.3213 | -283.0 | -126.6 | |
| 0.00 | 3.88 | 0.00 | 2.04 | -12.95 | 118.32 | -10.32 | 148.75 | 0.3382 | -1022.0 | -642.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.57 | 118.38 | -10.26 | 142.72 | 0.2914 | 975.0 | 861.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.58 | 118.14 | -10.51 | 149.27 | 0.3485 | -828.0 | -676.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -6.87 | 117.78 | -10.86 | 134.63 | 0.2641 | 720.0 | 516.9 | |
| 0.00 | 3.97 | 0.00 | 2.05 | -8.60 | 117.71 | -10.94 | 138.79 | 0.2861 | 858.0 | 709.8 | |
| 0.00 | 3.28 | 0.00 | 1.74 | -13.62 | 117.36 | -11.29 | 147.51 | 0.3557 | -839.0 | -719.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -15.85 | 117.15 | -11.50 | 150.25 | 0.3882 | -616.0 | -530.0 | |
| 3.97 | 6.99 | 2.11 | 3.71 | -14.06 | 117.15 | -11.50 | 147.72 | 0.3636 | -956.3 | -846.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -8.64 | 117.00 | -11.64 | 137.10 | 0.2945 | 700.0 | 597.0 | |
| 1.55 | 2.85 | 0.81 | 1.49 | -10.57 | 116.47 | -12.18 | 140.04 | 0.3242 | 961.7 | 676.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -10.82 | 116.34 | -12.31 | 140.23 | 0.3288 | 853.0 | 702.8 | |
| 4.32 | 7.68 | 2.31 | 4.10 | -14.23 | 115.95 | -12.70 | 145.38 | 0.3767 | -1065.4 | -724.3 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -14.83 | 115.76 | -12.89 | 145.90 | 0.3863 | -724.0 | -604.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -11.07 | 115.92 | -12.72 | 139.80 | 0.3363 | 949.0 | 810.1 | |
| 0.00 | 2.76 | 0.00 | 1.50 | -16.12 | 115.51 | -13.13 | 147.28 | 0.4056 | -840.0 | -708.9 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.49 | 115.59 | -13.06 | 145.03 | 0.3833 | -981.0 | -826.3 | |
| 0.00 | 6.13 | 0.00 | 3.28 | -14.21 | 115.48 | -13.17 | 144.37 | 0.3807 | -887.0 | -792.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -18.98 | 112.96 | -15.68 | 146.45 | 0.4644 | -817.0 | -770.8 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -14.47 | 112.83 | -15.81 | 139.76 | 0.4102 | -872.0 | -697.9 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -22.07 | 111.70 | -16.95 | 148.11 | 0.5135 | -655.0 | -520.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -18.48 | 111.93 | -16.71 | 144.13 | 0.4674 | -814.0 | -664.5 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -14.05 | 112.19 | -16.45 | 137.94 | 0.4119 | -793.0 | -759.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -14.65 | 112.02 | -16.63 | 138.63 | 0.4207 | -778.0 | -595.5 | |
| 0.00 | 3.45 | 0.00 | 1.88 | -13.90 | 112.01 | -16.63 | 137.37 | 0.4121 | -893.0 | -689.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -14.46 | 111.81 | -16.84 | 137.98 | 0.4208 | -926.0 | -763.7 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -14.76 | 111.14 | -17.50 | 137.37 | 0.4312 | -778.0 | -558.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -16.09 | 110.67 | -17.98 | 138.71 | 0.4513 | -805.0 | -614.4 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -15.93 | 110.62 | -18.03 | 138.39 | 0.4501 | -894.0 | -711.1 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -12.12 | 110.83 | -17.82 | 132.26 | 0.4059 | -791.0 | -673.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -13.09 | 110.25 | -18.40 | 133.12 | 0.4230 | -767.0 | -670.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -13.16 | 110.08 | -18.57 | 132.99 | 0.4256 | -756.0 | -617.1 | |
| 0.00 | 3.11 | 0.00 | 1.72 | -14.88 | 109.74 | -18.91 | 135.39 | 0.4478 | -642.0 | -500.8 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -15.26 | 109.67 | -18.97 | 135.90 | 0.4527 | -801.0 | -650.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -16.95 | 108.88 | -19.77 | 137.35 | 0.4795 | -592.0 | -406.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -16.61 | 108.48 | -20.16 | 136.29 | 0.4800 | -571.0 | -458.9 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -16.19 | 107.87 | -20.78 | 134.80 | 0.4821 | -782.0 | -610.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -15.31 | 107.43 | -21.21 | 132.85 | 0.4780 | -674.0 | -570.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
