SDO HMI 2011-11-06 14:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.94 | 751.62 | 69.03 | 393.67 | -13.81 | 121.76 | -5.79 | 161.78 | 0.3249 | 501.5 | 314.3 | |
|
previous
or next observation for the same group /

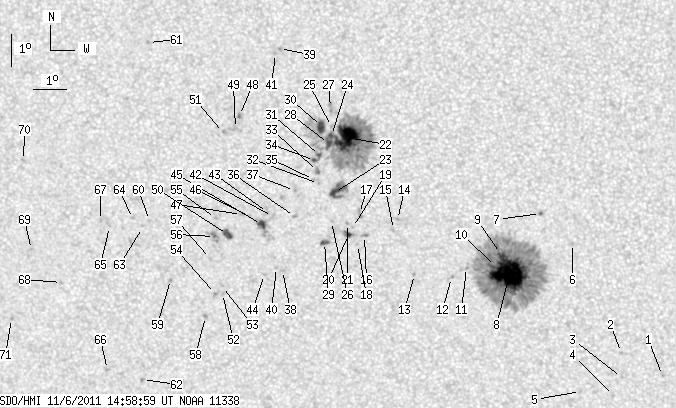

back to the solar disc SDO HMI 2011-11-06 14:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.56 | -18.63 | 129.40 | 1.85 | 184.59 | 0.3851 | 811.0 | 661.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -17.90 | 128.11 | 0.57 | 181.45 | 0.3720 | 837.0 | 658.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -18.70 | 128.12 | 0.57 | 181.40 | 0.3850 | 636.0 | 482.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -19.28 | 127.87 | 0.32 | 180.77 | 0.3943 | 659.0 | 512.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -19.15 | 126.83 | -0.72 | 178.26 | 0.3924 | 559.0 | 500.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.45 | 126.60 | -0.95 | 177.08 | 0.3156 | 862.0 | 589.7 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.51 | 125.63 | -1.92 | 173.76 | 0.3013 | -689.0 | -717.5 | |
| 59.19 | 374.56 | 31.10 | 196.71 | -15.43 | 124.65 | -2.89 | 171.61 | 0.3349 | 1437.5 | 440.0 | |
| 0.35 | -8.00 | 0.18 | -8.00 | -14.77 | 124.39 | -3.16 | 170.51 | 0.3248 | 1171.0 | 999999 | |
| 0.69 | -8.00 | 0.36 | -8.00 | -15.18 | 124.23 | -3.32 | 170.26 | 0.3319 | 1111.0 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.21 | 123.33 | -4.22 | 167.73 | 0.3353 | 756.0 | 657.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -15.53 | 122.86 | -4.69 | 166.64 | 0.3421 | 705.0 | 499.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.44 | 121.72 | -5.83 | 163.47 | 0.3456 | -861.0 | -635.8 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.72 | 121.24 | -6.31 | 160.50 | 0.3211 | -987.0 | -767.7 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -14.03 | 121.11 | -6.44 | 160.46 | 0.3267 | 477.0 | 467.7 | |
| 0.00 | 2.42 | 0.00 | 1.27 | -14.23 | 120.21 | -7.34 | 158.20 | 0.3349 | 945.0 | 676.4 | |
| 0.00 | 3.28 | 0.00 | 1.72 | -13.54 | 120.08 | -7.47 | 157.03 | 0.3253 | -848.0 | -667.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.51 | 119.98 | -7.56 | 157.93 | 0.3406 | 796.0 | 585.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -13.98 | 119.85 | -7.70 | 156.94 | 0.3335 | 696.0 | 462.4 | |
| 2.50 | 6.90 | 1.32 | 3.63 | -14.20 | 119.71 | -7.83 | 156.86 | 0.3376 | 739.0 | 526.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.86 | 119.70 | -7.85 | 156.39 | 0.3326 | 765.0 | 533.4 | |
| 31.06 | 227.02 | 16.08 | 117.64 | -11.20 | 119.75 | -7.80 | 152.78 | 0.2923 | 1273.1 | 432.4 | |
| 6.39 | 21.05 | 3.34 | 11.00 | -12.90 | 119.33 | -8.22 | 154.12 | 0.3208 | -985.4 | -872.0 | |
| 2.67 | -22.00 | 1.39 | -22.00 | -11.14 | 119.29 | -8.26 | 151.33 | 0.2951 | 1035.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.86 | 119.30 | -8.25 | 150.89 | 0.2910 | 885.0 | 680.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.80 | 119.20 | -8.34 | 155.01 | 0.3351 | 615.0 | 407.7 | |
| 0.00 | 3.37 | 0.00 | 1.74 | -10.28 | 119.28 | -8.26 | 149.82 | 0.2826 | 972.0 | 864.2 | |
| 3.28 | -22.00 | 1.70 | -22.00 | -11.39 | 119.19 | -8.36 | 151.45 | 0.2995 | 870.2 | 999999 | |
| 3.28 | 3.54 | 1.73 | 1.87 | -14.46 | 118.96 | -8.59 | 155.23 | 0.3465 | 820.7 | 509.2 | |
| 7.25 | -22.00 | 3.75 | -22.00 | -10.87 | 118.99 | -8.56 | 150.00 | 0.2935 | 1126.7 | 999999 | |
| 1.73 | 6.64 | 0.90 | 3.46 | -11.76 | 118.90 | -8.64 | 151.24 | 0.3072 | 771.2 | 504.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -12.63 | 118.84 | -8.70 | 152.42 | 0.3203 | 654.0 | 533.1 | |
| 0.00 | 3.45 | 0.00 | 1.80 | -12.25 | 118.83 | -8.72 | 151.81 | 0.3150 | 828.0 | 587.6 | |
| 1.47 | -31.00 | 0.76 | -31.00 | -11.92 | 118.74 | -8.80 | 151.05 | 0.3108 | 740.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -12.50 | 118.69 | -8.85 | 151.83 | 0.3197 | 499.0 | 379.5 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -13.66 | 118.06 | -9.48 | 151.89 | 0.3413 | -816.0 | -621.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -12.85 | 118.10 | -9.45 | 150.78 | 0.3295 | -919.0 | -648.1 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -15.35 | 117.61 | -9.93 | 153.09 | 0.3692 | -650.0 | -636.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -8.50 | 117.78 | -9.77 | 141.71 | 0.2722 | 918.0 | 807.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.26 | 117.43 | -10.12 | 152.55 | 0.3692 | -780.0 | -650.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -8.65 | 117.65 | -9.90 | 141.71 | 0.2755 | 819.0 | 643.5 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -13.67 | 117.38 | -10.17 | 150.22 | 0.3469 | -888.0 | -721.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.54 | 117.23 | -10.32 | 149.68 | 0.3464 | -922.0 | -723.3 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -15.49 | 117.04 | -10.50 | 151.96 | 0.3753 | -784.0 | -588.6 | |
| 4.75 | 11.39 | 2.51 | 6.03 | -13.92 | 117.03 | -10.52 | 149.75 | 0.3534 | -1038.1 | -642.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.68 | 116.67 | -10.88 | 148.54 | 0.3530 | -865.0 | -576.0 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -13.62 | 116.42 | -11.13 | 147.87 | 0.3543 | -885.0 | -661.7 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -10.56 | 116.49 | -11.06 | 142.68 | 0.3125 | 1152.0 | 916.3 | |
| 0.00 | 6.82 | 0.00 | 3.56 | -10.96 | 116.35 | -11.20 | 143.12 | 0.3191 | 747.0 | 588.2 | |
| 6.21 | 6.90 | 3.31 | 3.67 | -14.25 | 115.95 | -11.60 | 147.78 | 0.3670 | -1011.2 | -831.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -11.09 | 115.97 | -11.57 | 142.46 | 0.3246 | 877.0 | 743.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -16.10 | 115.69 | -11.86 | 149.83 | 0.3946 | -588.0 | -608.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -15.88 | 115.70 | -11.85 | 149.57 | 0.3915 | -850.0 | -757.7 | |
| 0.00 | 3.11 | 0.00 | 1.67 | -16.11 | 115.47 | -12.08 | 149.38 | 0.3965 | -835.0 | -695.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -13.75 | 115.60 | -11.95 | 146.24 | 0.3634 | -924.0 | -767.0 | |
| 1.12 | 7.59 | 0.60 | 4.05 | -14.32 | 115.54 | -12.01 | 146.98 | 0.3715 | -956.8 | -785.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -15.01 | 115.37 | -12.17 | 147.65 | 0.3823 | -509.0 | -422.8 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -16.84 | 115.10 | -12.45 | 149.61 | 0.4094 | -806.0 | -686.0 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -15.69 | 114.07 | -13.48 | 145.98 | 0.4028 | -809.0 | -678.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -13.85 | 113.52 | -14.02 | 142.07 | 0.3844 | -768.0 | -628.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -8.37 | 113.76 | -13.79 | 131.63 | 0.3169 | 872.0 | 646.3 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -18.89 | 112.92 | -14.63 | 148.13 | 0.4545 | -989.0 | -733.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -14.07 | 113.29 | -14.26 | 141.97 | 0.3895 | -476.0 | -555.0 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -13.79 | 112.99 | -14.56 | 140.94 | 0.3891 | -868.0 | -623.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -14.06 | 112.24 | -15.30 | 139.99 | 0.3999 | -849.0 | -725.0 | |
| 0.00 | 2.24 | 0.00 | 1.25 | -18.59 | 111.81 | -15.74 | 145.86 | 0.4600 | -651.0 | -585.9 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -13.88 | 111.97 | -15.58 | 139.19 | 0.4006 | -874.0 | -716.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -15.85 | 110.57 | -16.98 | 139.94 | 0.4383 | -777.0 | -693.9 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -14.83 | 109.69 | -17.86 | 136.91 | 0.4358 | -897.0 | -677.7 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -12.06 | 109.64 | -17.90 | 132.01 | 0.4063 | -688.0 | -466.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -17.02 | 108.83 | -18.72 | 138.98 | 0.4695 | -629.0 | -505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
