SDO HMI 2011-11-06 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.37 | 754.96 | 64.33 | 394.89 | -13.94 | 121.90 | -4.54 | 165.54 | 0.3212 | 496.0 | 308.6 | |
|
previous
or next observation for the same group /

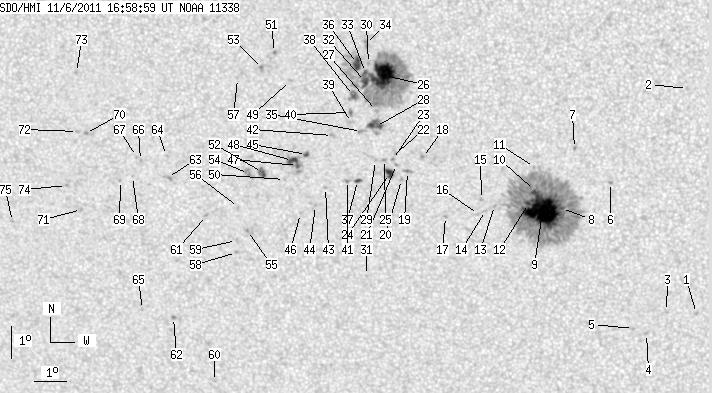

back to the solar disc SDO HMI 2011-11-06 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.67 | 129.40 | 2.95 | 187.27 | 0.3875 | 711.0 | 643.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.59 | 129.03 | 2.58 | 189.42 | 0.2709 | 918.0 | 607.8 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -18.60 | 128.45 | 2.01 | 184.98 | 0.3848 | 399.0 | 390.0 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -19.31 | 127.83 | 1.39 | 183.33 | 0.3954 | 786.0 | 587.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -19.15 | 127.42 | 0.98 | 182.37 | 0.3925 | 774.0 | 599.9 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.51 | 126.69 | 0.25 | 180.77 | 0.3162 | 812.0 | 682.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.45 | 125.59 | -0.85 | 177.22 | 0.2988 | -868.0 | -659.4 | |
| 1.12 | 392.18 | 0.59 | 205.78 | -15.33 | 125.19 | -1.26 | 176.31 | 0.3304 | 953.2 | 458.7 | |
| 51.16 | -8.00 | 26.85 | -8.00 | -15.42 | 124.60 | -1.84 | 174.62 | 0.3327 | 1515.7 | 999999 | |
| 1.04 | -8.00 | 0.54 | -8.00 | -14.76 | 124.36 | -2.08 | 173.71 | 0.3223 | 1230.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.04 | 124.37 | -2.08 | 173.46 | 0.3104 | 361.0 | 285.7 | |
| 1.73 | -8.00 | 0.90 | -8.00 | -15.17 | 124.17 | -2.27 | 173.29 | 0.3293 | 1030.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -15.24 | 123.12 | -3.32 | 170.29 | 0.3329 | 706.0 | 636.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -15.40 | 122.84 | -3.60 | 169.58 | 0.3363 | 574.0 | 471.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -15.05 | 122.73 | -3.72 | 169.04 | 0.3310 | 552.0 | 476.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -15.52 | 122.62 | -3.82 | 169.03 | 0.3390 | 736.0 | 433.1 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -15.59 | 121.60 | -4.84 | 166.25 | 0.3437 | -909.0 | -695.7 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -13.75 | 120.94 | -5.51 | 162.83 | 0.3173 | -923.0 | -658.5 | |
| 0.00 | 3.71 | 0.00 | 1.94 | -14.19 | 120.47 | -5.98 | 161.90 | 0.3266 | 1042.0 | 746.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -14.44 | 120.27 | -6.17 | 161.61 | 0.3315 | 774.0 | 588.6 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -13.97 | 120.13 | -6.31 | 160.74 | 0.3250 | 452.0 | 388.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.63 | 120.11 | -6.33 | 160.32 | 0.3197 | -853.0 | -694.6 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.82 | 120.01 | -6.43 | 160.24 | 0.3232 | -785.0 | -575.5 | |
| 5.00 | 7.59 | 2.62 | 3.98 | -14.25 | 119.91 | -6.54 | 160.41 | 0.3306 | 955.8 | 555.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.82 | 119.77 | -6.68 | 159.55 | 0.3246 | 752.0 | 539.9 | |
| 37.96 | 214.04 | 19.60 | 110.63 | -11.22 | 119.80 | -6.64 | 156.37 | 0.2843 | 1291.8 | 416.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -12.30 | 119.56 | -6.88 | 157.12 | 0.3025 | -120.0 | -91.1 | |
| 0.00 | 13.37 | 0.00 | 6.96 | -12.79 | 119.52 | -6.93 | 157.63 | 0.3103 | -1275.0 | -966.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.85 | 119.49 | -6.96 | 158.81 | 0.3268 | 765.0 | 402.6 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -10.85 | 119.36 | -7.09 | 154.41 | 0.2818 | 953.0 | 812.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.48 | 119.08 | -7.36 | 161.39 | 0.3847 | -522.0 | -407.5 | |
| 5.09 | -26.00 | 2.63 | -26.00 | -11.41 | 119.25 | -7.19 | 154.93 | 0.2910 | 876.4 | 999999 | |
| 1.21 | -26.00 | 0.62 | -26.00 | -11.13 | 119.26 | -7.19 | 154.53 | 0.2867 | 1074.2 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.55 | -10.27 | 119.28 | -7.17 | 153.22 | 0.2737 | 1004.0 | 851.0 | |
| 0.00 | 3.19 | 0.00 | 1.67 | -12.95 | 119.09 | -7.36 | 156.59 | 0.3156 | -989.0 | -675.3 | |
| 7.33 | -26.00 | 3.79 | -26.00 | -10.85 | 119.02 | -7.42 | 153.37 | 0.2844 | 1098.7 | 999999 | |
| 1.73 | 3.02 | 0.91 | 1.59 | -14.48 | 118.91 | -7.53 | 157.97 | 0.3399 | 596.3 | 448.1 | |
| 0.00 | 6.99 | 0.00 | 3.63 | -11.84 | 118.87 | -7.57 | 154.44 | 0.3002 | 907.0 | 728.7 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -12.68 | 118.79 | -7.66 | 155.37 | 0.3134 | 754.0 | 522.2 | |
| 0.00 | 2.93 | 0.00 | 1.53 | -12.37 | 118.76 | -7.68 | 154.88 | 0.3089 | 858.0 | 627.6 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -14.48 | 118.60 | -7.84 | 157.16 | 0.3419 | -919.0 | -651.2 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -13.09 | 118.19 | -8.26 | 154.28 | 0.3237 | -730.0 | -634.3 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -14.71 | 117.91 | -8.53 | 155.67 | 0.3498 | 703.0 | 472.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.28 | 117.58 | -8.87 | 155.53 | 0.3605 | -852.0 | -709.4 | |
| 0.86 | 2.42 | 0.45 | 1.27 | -13.68 | 117.36 | -9.08 | 152.94 | 0.3386 | -1092.5 | -956.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -15.54 | 117.10 | -9.35 | 154.69 | 0.3676 | -830.0 | -637.3 | |
| 2.33 | 17.08 | 1.23 | 9.01 | -14.03 | 117.07 | -9.37 | 152.68 | 0.3459 | -868.6 | -674.9 | |
| 4.14 | -47.00 | 2.18 | -47.00 | -13.88 | 116.92 | -9.52 | 152.10 | 0.3448 | -1090.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -11.40 | 116.95 | -9.49 | 148.32 | 0.3091 | 762.0 | 549.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -14.47 | 116.65 | -9.80 | 152.25 | 0.3555 | -780.0 | -566.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -10.54 | 116.49 | -9.95 | 145.51 | 0.3014 | 1125.0 | 966.2 | |
| 2.67 | 5.44 | 1.42 | 2.88 | -14.26 | 115.97 | -10.47 | 150.36 | 0.3578 | -1151.7 | -910.5 | |
| 0.00 | 3.88 | 0.00 | 2.02 | -11.04 | 116.11 | -10.34 | 145.43 | 0.3118 | 755.0 | 630.7 | |
| 0.00 | 6.73 | 0.00 | 3.57 | -14.30 | 115.53 | -10.91 | 149.40 | 0.3619 | -946.0 | -824.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -16.09 | 115.41 | -11.04 | 151.56 | 0.3879 | -942.0 | -804.4 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -15.37 | 115.16 | -11.28 | 150.08 | 0.3798 | -684.0 | -504.0 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -11.36 | 115.32 | -11.12 | 144.06 | 0.3236 | 608.0 | 526.7 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -16.79 | 115.02 | -11.43 | 151.62 | 0.4007 | -777.0 | -620.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -16.41 | 115.04 | -11.40 | 151.19 | 0.3953 | -729.0 | -572.6 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -20.96 | 114.01 | -12.44 | 154.31 | 0.4658 | -775.0 | -626.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -15.64 | 114.14 | -12.30 | 148.27 | 0.3919 | -950.0 | -658.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -18.91 | 112.85 | -13.59 | 149.98 | 0.4463 | -913.0 | -835.5 | |
| 0.00 | 3.02 | 0.00 | 1.62 | -14.46 | 112.98 | -13.46 | 144.17 | 0.3867 | -918.0 | -756.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -13.78 | 112.99 | -13.45 | 143.09 | 0.3778 | -725.0 | -587.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -18.67 | 111.87 | -14.57 | 147.94 | 0.4510 | -692.0 | -602.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -13.95 | 112.16 | -14.28 | 141.72 | 0.3881 | -968.0 | -790.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -13.82 | 112.05 | -14.40 | 141.29 | 0.3878 | -735.0 | -708.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -14.45 | 111.88 | -14.57 | 141.99 | 0.3973 | -791.0 | -623.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -14.58 | 111.49 | -14.96 | 141.48 | 0.4028 | -788.0 | -661.9 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -13.14 | 110.48 | -15.97 | 137.21 | 0.3961 | -896.0 | -757.6 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -15.52 | 110.17 | -16.27 | 140.61 | 0.4273 | -907.0 | -609.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -13.08 | 110.23 | -16.22 | 136.66 | 0.3982 | -845.0 | -661.2 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -11.25 | 110.31 | -16.14 | 133.40 | 0.3768 | -556.0 | -504.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -14.77 | 109.75 | -16.70 | 138.71 | 0.4228 | -891.0 | -731.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -15.94 | 107.90 | -18.54 | 137.61 | 0.4555 | -787.0 | -535.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
