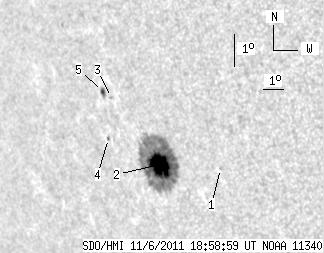

SDO HMI 2011-11-06 18:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.07 | 164.61 | 24.31 | 137.46 | -9.03 | 73.15 | -52.19 | 104.17 | 0.8071 | 777.5 | 219.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-06 18:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.81 | -9.08 | 76.16 | -49.18 | 105.02 | 0.7761 | 300.0 | 282.0 | |
| 26.74 | 156.40 | 22.27 | 130.38 | -9.11 | 73.24 | -52.10 | 104.29 | 0.8063 | 998.4 | 237.7 | |
| 0.00 | 1.04 | 0.00 | 0.90 | -7.19 | 71.19 | -54.15 | 101.51 | 0.8229 | -594.0 | -546.6 | |
| 0.00 | 1.47 | 0.00 | 1.29 | -8.45 | 70.79 | -54.55 | 102.93 | 0.8289 | 211.0 | 266.2 | |
| 2.33 | 4.66 | 2.04 | 4.08 | -7.03 | 70.75 | -54.59 | 101.23 | 0.8268 | -450.7 | -462.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
