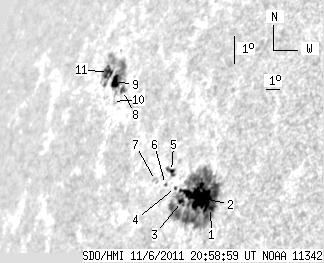

SDO HMI 2011-11-06 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.74 | 256.32 | 63.11 | 285.30 | 17.75 | 60.88 | -63.36 | 72.05 | 0.8945 | -249.2 | -73.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-06 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 185.23 | 0.68 | 188.95 | 16.54 | 64.45 | -59.79 | 73.09 | 0.8679 | -816.2 | -222.3 | |
| 34.68 | -1.00 | 35.23 | -1.00 | 16.80 | 63.62 | -60.62 | 72.87 | 0.8749 | -717.1 | 999999 | |
| 2.59 | -1.00 | 2.71 | -1.00 | 16.62 | 62.55 | -61.68 | 73.18 | 0.8832 | -296.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.29 | 17.01 | 61.93 | -62.31 | 72.79 | 0.8883 | -211.0 | -119.8 | |
| 1.47 | 5.52 | 1.60 | 6.03 | 17.48 | 61.37 | -62.86 | 72.32 | 0.8928 | -488.3 | -360.9 | |
| 0.00 | 1.29 | 0.00 | 1.42 | 17.06 | 61.21 | -63.02 | 72.79 | 0.8938 | -58.0 | 4.7 | |
| 0.00 | 2.85 | 0.00 | 3.20 | 17.14 | 60.46 | -63.77 | 72.76 | 0.8994 | 236.0 | 200.4 | |
| 2.33 | 59.79 | 3.11 | 83.82 | 19.68 | 55.97 | -68.27 | 70.32 | 0.9305 | 644.9 | 296.4 | |
| 6.82 | -8.00 | 9.46 | -8.00 | 19.91 | 55.05 | -69.18 | 70.14 | 0.9360 | 578.9 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.59 | 19.31 | 55.44 | -68.79 | 70.76 | 0.9335 | 258.0 | 279.6 | |
| 7.16 | -8.00 | 10.32 | -8.00 | 20.15 | 54.27 | -69.97 | 69.93 | 0.9405 | 287.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
