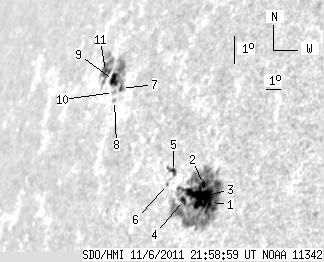

SDO HMI 2011-11-06 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.23 | 255.63 | 46.93 | 277.54 | 17.69 | 61.01 | -62.67 | 72.05 | 0.8894 | -285.5 | -95.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-06 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 191.11 | 0.84 | 191.37 | 16.65 | 64.33 | -59.35 | 72.91 | 0.8644 | -1081.9 | -259.0 | |
| 1.90 | -1.00 | 1.90 | -1.00 | 17.17 | 63.62 | -60.06 | 72.40 | 0.8706 | -504.0 | 999999 | |
| 24.16 | -1.00 | 24.16 | -1.00 | 16.76 | 63.59 | -60.09 | 72.86 | 0.8706 | -736.8 | 999999 | |
| 3.02 | -1.00 | 3.10 | -1.00 | 16.62 | 62.65 | -61.04 | 73.12 | 0.8781 | -337.3 | 999999 | |
| 3.54 | 5.95 | 3.77 | 6.37 | 17.45 | 61.51 | -62.17 | 72.28 | 0.8876 | -465.1 | -237.8 | |
| 0.00 | 1.29 | 0.00 | 1.39 | 17.04 | 61.35 | -62.33 | 72.76 | 0.8885 | -21.0 | 28.8 | |
| 1.98 | 30.63 | 2.59 | 41.04 | 19.71 | 55.98 | -67.70 | 70.25 | 0.9271 | 598.5 | 456.0 | |
| 0.00 | 1.55 | 0.00 | 2.05 | 19.32 | 55.73 | -67.95 | 70.69 | 0.9284 | 451.0 | 410.7 | |
| 6.99 | -7.00 | 9.47 | -7.00 | 19.91 | 55.11 | -68.57 | 70.09 | 0.9324 | 575.0 | 999999 | |
| 0.00 | 1.55 | 0.00 | 2.07 | 19.56 | 55.44 | -68.24 | 70.46 | 0.9303 | 423.0 | 385.9 | |
| 0.78 | 23.55 | 1.10 | 33.25 | 20.14 | 54.18 | -69.51 | 69.91 | 0.9379 | 330.1 | 171.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
