SDO HMI 2011-11-06 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.14 | 776.78 | 73.00 | 404.99 | -13.86 | 121.61 | -1.52 | 174.65 | 0.3112 | 423.9 | 295.8 | |
|
previous
or next observation for the same group /

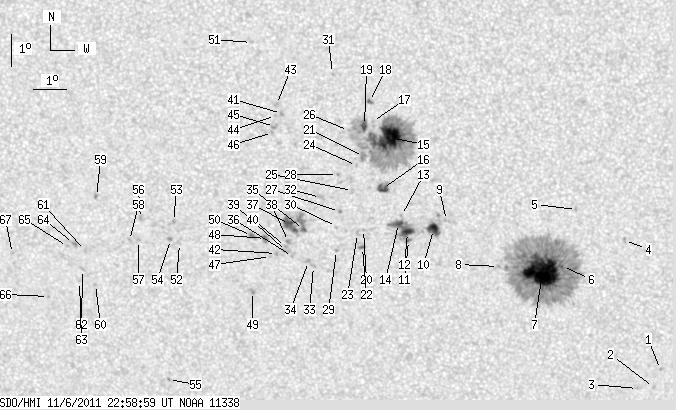

back to the solar disc SDO HMI 2011-11-06 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.65 | -18.51 | 128.24 | 5.11 | 192.55 | 0.3906 | 891.0 | 667.5 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -19.08 | 128.04 | 4.91 | 191.75 | 0.3990 | 753.0 | 568.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -19.11 | 127.54 | 4.41 | 190.56 | 0.3979 | 757.0 | 628.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -14.41 | 127.03 | 3.90 | 191.89 | 0.3210 | 975.0 | 725.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.44 | 125.54 | 2.41 | 187.86 | 0.3008 | -730.0 | -514.9 | |
| 0.52 | 372.43 | 0.27 | 195.37 | -15.22 | 125.13 | 2.00 | 185.90 | 0.3294 | 1082.5 | 454.9 | |
| 60.83 | -6.00 | 31.92 | -6.00 | -15.38 | 124.52 | 1.39 | 184.06 | 0.3311 | 1472.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.22 | 123.16 | 0.03 | 180.09 | 0.3276 | 873.0 | 644.8 | |
| 0.00 | 2.33 | 0.00 | 1.21 | -13.78 | 121.57 | -1.56 | 175.00 | 0.3048 | -484.0 | -461.7 | |
| 9.58 | 19.85 | 4.99 | 10.33 | -14.06 | 121.17 | -1.96 | 173.83 | 0.3102 | 982.4 | 433.8 | |
| 1.73 | 32.70 | 0.90 | 17.04 | -14.41 | 120.40 | -2.73 | 171.61 | 0.3175 | 703.0 | 30.1 | |
| 5.52 | -11.00 | 2.88 | -11.00 | -14.16 | 120.37 | -2.76 | 171.40 | 0.3134 | 836.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.63 | 120.20 | -2.93 | 170.58 | 0.3052 | -944.0 | -688.7 | |
| 3.37 | -11.00 | 1.75 | -11.00 | -13.88 | 120.10 | -3.03 | 170.42 | 0.3096 | -934.8 | 999999 | |
| 30.12 | 212.96 | 15.47 | 109.50 | -11.21 | 119.86 | -3.27 | 167.82 | 0.2665 | 1317.4 | 464.8 | |
| 6.21 | 9.23 | 3.22 | 4.78 | -12.79 | 119.63 | -3.50 | 168.22 | 0.2932 | -1019.7 | -656.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -10.73 | 119.35 | -3.78 | 165.53 | 0.2604 | 884.0 | 715.6 | |
| 0.43 | 2.33 | 0.22 | 1.19 | -10.11 | 119.27 | -3.86 | 164.59 | 0.2507 | 1126.2 | 921.2 | |
| 5.26 | -15.00 | 2.70 | -15.00 | -10.85 | 119.11 | -4.02 | 164.76 | 0.2635 | 1161.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.07 | 119.02 | -4.11 | 167.25 | 0.3161 | -567.0 | -430.7 | |
| 0.00 | 6.04 | 0.00 | 3.11 | -11.80 | 119.06 | -4.07 | 165.53 | 0.2792 | 912.0 | 699.3 | |
| 1.55 | 2.24 | 0.81 | 1.17 | -14.63 | 118.98 | -4.15 | 167.53 | 0.3254 | 591.9 | 461.1 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -14.19 | 118.84 | -4.29 | 166.79 | 0.3189 | -649.0 | -506.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.08 | 118.84 | -4.29 | 165.06 | 0.2847 | 746.0 | 532.1 | |
| 0.00 | 2.42 | 0.00 | 1.25 | -12.86 | 118.71 | -4.42 | 165.32 | 0.2978 | -277.0 | -300.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -11.01 | 118.62 | -4.51 | 163.19 | 0.2683 | 66.0 | 120.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.51 | 118.30 | -4.83 | 164.62 | 0.3101 | -1112.0 | -950.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -12.36 | 118.26 | -4.87 | 163.42 | 0.2919 | 729.0 | 601.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.73 | 118.18 | -4.95 | 165.29 | 0.3301 | 743.0 | 567.9 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.98 | 118.20 | -4.93 | 164.72 | 0.3180 | 308.0 | 327.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -9.26 | 118.16 | -4.97 | 159.28 | 0.2428 | -701.0 | -508.0 | |
| 0.00 | 3.02 | 0.00 | 1.57 | -13.08 | 117.73 | -5.40 | 162.47 | 0.3059 | -890.0 | -683.5 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -15.24 | 117.46 | -5.67 | 163.70 | 0.3413 | -666.0 | -534.6 | |
| 0.00 | 2.42 | 0.00 | 1.27 | -15.08 | 117.31 | -5.82 | 163.16 | 0.3396 | -872.0 | -705.9 | |
| 1.81 | 31.50 | 0.95 | 16.47 | -14.08 | 117.18 | -5.95 | 161.86 | 0.3245 | -545.6 | -858.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -14.93 | 116.82 | -6.31 | 161.68 | 0.3396 | -740.0 | -612.9 | |
| 11.48 | -35.00 | 6.01 | -35.00 | -13.93 | 116.75 | -6.38 | 160.50 | 0.3244 | -990.2 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -14.46 | 116.71 | -6.42 | 160.92 | 0.3329 | -983.0 | -841.8 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -14.77 | 116.64 | -6.49 | 161.04 | 0.3381 | -808.0 | -795.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.62 | 116.61 | -6.52 | 160.82 | 0.3359 | -994.0 | -815.4 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -10.50 | 116.59 | -6.54 | 155.61 | 0.2723 | 1210.0 | 926.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.84 | 116.32 | -6.81 | 160.27 | 0.3409 | -915.0 | -766.8 | |
| 0.00 | 2.50 | 0.00 | 1.29 | -10.22 | 116.45 | -6.68 | 154.69 | 0.2691 | 905.0 | 669.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.56 | 116.41 | -6.72 | 155.10 | 0.2745 | 721.0 | 603.9 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -10.90 | 116.37 | -6.76 | 155.50 | 0.2799 | 744.0 | 706.9 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -11.08 | 116.31 | -6.82 | 155.57 | 0.2832 | 799.0 | 598.7 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -14.93 | 116.14 | -6.99 | 159.87 | 0.3434 | -770.0 | -625.8 | |
| 0.00 | 3.97 | 0.00 | 2.09 | -14.37 | 116.00 | -7.13 | 158.90 | 0.3355 | -1204.0 | -974.9 | |
| 0.00 | 2.24 | 0.00 | 1.19 | -16.04 | 115.54 | -7.59 | 159.47 | 0.3637 | -952.0 | -780.3 | |
| 1.73 | 3.37 | 0.91 | 1.77 | -14.28 | 115.57 | -7.56 | 157.65 | 0.3368 | -988.5 | -942.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -8.34 | 115.73 | -7.40 | 148.74 | 0.2468 | 749.0 | 619.7 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -14.55 | 113.32 | -9.81 | 152.32 | 0.3564 | -759.0 | -570.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -13.87 | 113.17 | -9.96 | 150.99 | 0.3478 | -952.0 | -763.8 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -14.43 | 113.05 | -10.08 | 151.50 | 0.3568 | -961.0 | -775.1 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -18.88 | 112.75 | -10.38 | 156.10 | 0.4227 | -824.0 | -652.2 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -13.79 | 112.15 | -10.98 | 148.44 | 0.3551 | -930.0 | -772.8 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -14.48 | 112.05 | -11.08 | 149.24 | 0.3655 | -746.0 | -672.0 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -14.48 | 111.77 | -11.36 | 148.62 | 0.3679 | -756.0 | -682.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -13.12 | 110.81 | -12.32 | 144.36 | 0.3583 | -1029.0 | -813.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.88 | 110.62 | -12.51 | 148.16 | 0.3967 | -701.0 | -544.7 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.81 | 110.37 | -12.76 | 146.11 | 0.3847 | -787.0 | -666.9 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -15.41 | 110.24 | -12.89 | 146.72 | 0.3938 | -951.0 | -675.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -15.79 | 110.12 | -13.01 | 147.02 | 0.3998 | -664.0 | -456.3 | |
| 0.00 | 3.54 | 0.00 | 1.90 | -14.60 | 110.00 | -13.13 | 145.03 | 0.3852 | -1137.0 | -830.7 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -14.70 | 109.81 | -13.32 | 144.79 | 0.3883 | -789.0 | -642.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.28 | 109.10 | -14.03 | 145.74 | 0.4153 | -814.0 | -658.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -14.95 | 108.05 | -15.08 | 141.80 | 0.4083 | -840.0 | -636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
