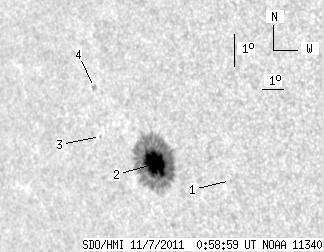

SDO HMI 2011-11-07 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.88 | 168.99 | 21.63 | 131.26 | -9.07 | 73.21 | -48.82 | 105.10 | 0.7722 | 961.8 | 281.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.44 | -9.46 | 76.51 | -45.52 | 106.60 | 0.7367 | 420.0 | 432.6 | |
| 27.88 | 165.54 | 21.63 | 128.51 | -9.10 | 73.24 | -48.79 | 105.15 | 0.7719 | 1087.2 | 292.2 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -8.41 | 70.78 | -51.25 | 103.63 | 0.7961 | 439.0 | 370.1 | |
| 0.00 | 2.07 | 0.00 | 1.68 | -6.93 | 70.74 | -51.29 | 101.79 | 0.7936 | -685.0 | -488.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
