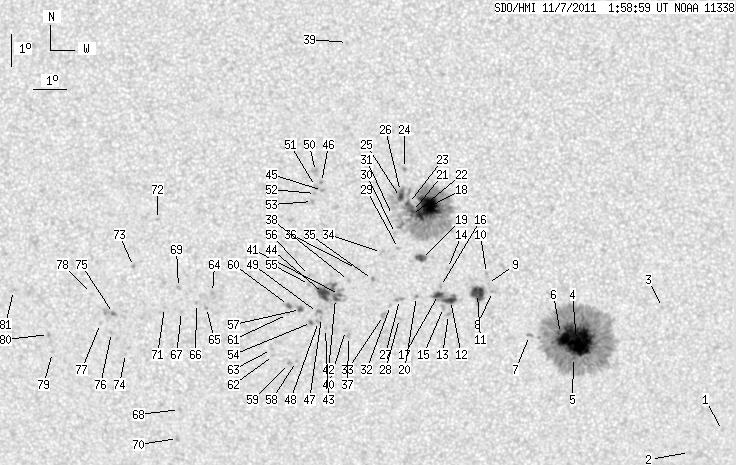

SDO HMI 2011-11-07 01:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.07 | 812.06 | 81.82 | 423.18 | -13.83 | 121.43 | -0.04 | 179.31 | 0.3093 | 371.5 | 269.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 01:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.28 | -18.26 | 129.11 | 7.63 | 198.58 | 0.3973 | 756.0 | 594.2 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -18.96 | 128.09 | 6.62 | 195.75 | 0.4032 | 788.0 | 514.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.35 | 127.10 | 5.62 | 196.97 | 0.3268 | 871.0 | 600.8 | |
| 65.51 | 385.32 | 34.40 | 202.33 | -15.37 | 124.47 | 2.99 | 188.72 | 0.3336 | 1469.2 | 418.2 | |
| 0.95 | -4.00 | 0.50 | -4.00 | -15.90 | 124.39 | 2.91 | 188.24 | 0.3421 | 745.8 | 999999 | |
| 0.69 | -4.00 | 0.36 | -4.00 | -15.15 | 123.98 | 2.50 | 187.38 | 0.3288 | 1259.4 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -15.21 | 123.02 | 1.54 | 184.57 | 0.3282 | 841.0 | 566.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -13.83 | 121.88 | 0.40 | 181.29 | 0.3043 | -632.0 | -412.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -13.58 | 121.73 | 0.25 | 180.81 | 0.3001 | -499.0 | -359.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.27 | 121.70 | 0.22 | 180.72 | 0.2948 | -898.0 | -558.3 | |
| 13.03 | 18.13 | 6.78 | 9.42 | -13.89 | 121.42 | -0.06 | 179.82 | 0.3052 | 1022.9 | 537.5 | |
| 5.35 | 19.08 | 2.79 | 9.93 | -14.11 | 120.59 | -0.88 | 177.22 | 0.3092 | 943.4 | 93.3 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -14.55 | 120.53 | -0.95 | 177.09 | 0.3166 | 847.0 | 667.4 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -13.11 | 120.51 | -0.97 | 176.75 | 0.2927 | -891.0 | -616.3 | |
| 0.00 | 2.76 | 0.00 | 1.44 | -14.33 | 120.38 | -1.10 | 176.58 | 0.3131 | 530.0 | 472.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.67 | 120.29 | -1.19 | 176.16 | 0.3023 | -955.0 | -667.1 | |
| 4.40 | -12.00 | 2.29 | -12.00 | -13.92 | 120.23 | -1.25 | 176.02 | 0.3065 | -952.3 | 999999 | |
| 32.20 | 232.79 | 16.52 | 119.53 | -11.23 | 119.91 | -1.57 | 174.08 | 0.2619 | 1327.0 | 461.7 | |
| 6.30 | 6.47 | 3.26 | 3.35 | -12.81 | 119.72 | -1.76 | 174.01 | 0.2886 | -1026.4 | -836.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.99 | 119.55 | -1.92 | 173.91 | 0.3085 | -1003.0 | -752.9 | |
| 1.55 | -18.00 | 0.80 | -18.00 | -11.35 | 119.45 | -2.03 | 172.45 | 0.2648 | 1061.3 | 999999 | |
| 0.95 | -18.00 | 0.49 | -18.00 | -11.48 | 119.42 | -2.06 | 172.40 | 0.2670 | 874.4 | 999999 | |
| 1.73 | -18.00 | 0.89 | -18.00 | -11.11 | 119.33 | -2.14 | 171.87 | 0.2610 | 1098.3 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -10.03 | 119.22 | -2.26 | 170.78 | 0.2433 | 1203.0 | 996.2 | |
| 3.80 | -18.00 | 1.95 | -18.00 | -10.92 | 119.09 | -2.39 | 170.86 | 0.2585 | 1106.1 | 999999 | |
| 0.60 | -18.00 | 0.31 | -18.00 | -10.74 | 119.09 | -2.38 | 170.75 | 0.2554 | 1091.6 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.80 | -14.08 | 119.03 | -2.45 | 172.32 | 0.3112 | -855.0 | -712.2 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -14.68 | 119.03 | -2.45 | 172.56 | 0.3210 | 483.0 | 486.5 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.50 | 119.02 | -2.46 | 171.50 | 0.2849 | 869.0 | 571.1 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -12.03 | 118.93 | -2.55 | 170.95 | 0.2775 | 577.0 | 463.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -11.48 | 118.85 | -2.63 | 170.30 | 0.2685 | 35.0 | 82.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.27 | 118.75 | -2.72 | 171.55 | 0.3149 | -784.0 | -544.4 | |
| 0.00 | 3.19 | 0.00 | 1.67 | -14.58 | 118.54 | -2.94 | 171.04 | 0.3206 | -786.0 | -674.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -12.62 | 118.50 | -2.98 | 169.83 | 0.2884 | 751.0 | 579.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -13.46 | 118.21 | -3.26 | 169.42 | 0.3031 | -955.0 | -827.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.12 | 117.73 | -3.75 | 167.65 | 0.2991 | -789.0 | -622.8 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -15.25 | 117.45 | -4.03 | 168.25 | 0.3346 | -860.0 | -637.2 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -13.50 | 117.48 | -4.00 | 167.14 | 0.3061 | -813.0 | -626.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -6.21 | 117.54 | -3.94 | 158.53 | 0.1876 | 665.0 | 589.7 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -15.06 | 117.36 | -4.12 | 167.88 | 0.3319 | -818.0 | -687.3 | |
| 1.47 | 41.43 | 0.77 | 21.61 | -13.93 | 117.19 | -4.28 | 166.60 | 0.3143 | -895.3 | -776.6 | |
| 2.24 | -41.00 | 1.17 | -41.00 | -14.06 | 117.07 | -4.41 | 166.32 | 0.3168 | -844.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -15.00 | 116.74 | -4.74 | 166.09 | 0.3332 | -743.0 | -564.9 | |
| 10.10 | -41.00 | 5.27 | -41.00 | -13.91 | 116.70 | -4.77 | 165.11 | 0.3158 | -1048.0 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.72 | 116.73 | -4.75 | 162.02 | 0.2645 | 1095.0 | 817.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.47 | 116.71 | -4.77 | 161.62 | 0.2607 | 1132.0 | 942.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -14.66 | 116.63 | -4.85 | 165.50 | 0.3282 | -931.0 | -808.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.78 | 116.53 | -4.95 | 165.32 | 0.3306 | -839.0 | -734.9 | |
| 0.00 | 3.11 | 0.00 | 1.63 | -14.50 | 116.51 | -4.97 | 165.03 | 0.3262 | -994.0 | -841.4 | |
| 0.00 | 5.09 | 0.00 | 2.61 | -10.14 | 116.53 | -4.95 | 160.56 | 0.2563 | 962.0 | 682.5 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -10.60 | 116.52 | -4.96 | 161.12 | 0.2637 | 677.0 | 565.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.81 | 116.52 | -4.96 | 161.38 | 0.2672 | 701.0 | 595.1 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -11.06 | 116.42 | -5.06 | 161.34 | 0.2716 | 791.0 | 638.2 | |
| 1.12 | 1.64 | 0.59 | 0.86 | -14.81 | 116.31 | -5.16 | 164.74 | 0.3321 | -947.2 | -925.2 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -13.63 | 116.28 | -5.20 | 163.60 | 0.3133 | -858.0 | -696.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.35 | 116.29 | -5.19 | 163.36 | 0.3088 | -957.0 | -684.9 | |
| 1.29 | 2.93 | 0.68 | 1.54 | -14.41 | 115.99 | -5.49 | 163.46 | 0.3271 | -1119.5 | -889.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -16.05 | 115.82 | -5.66 | 164.38 | 0.3537 | -837.0 | -641.5 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -16.11 | 115.60 | -5.88 | 163.86 | 0.3557 | -850.0 | -711.1 | |
| 2.50 | 3.71 | 1.31 | 1.94 | -14.29 | 115.62 | -5.86 | 162.30 | 0.3270 | -982.9 | -566.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -14.57 | 115.58 | -5.90 | 162.47 | 0.3316 | -806.0 | -592.2 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -15.86 | 115.11 | -6.37 | 162.38 | 0.3541 | -663.0 | -524.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.67 | 115.05 | -6.43 | 162.07 | 0.3515 | -832.0 | -659.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.90 | 113.28 | -8.19 | 155.49 | 0.3349 | -998.0 | -843.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -14.37 | 113.08 | -8.40 | 155.55 | 0.3433 | -809.0 | -699.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.25 | 112.78 | -8.70 | 154.62 | 0.3436 | -876.0 | -745.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -14.50 | 112.30 | -9.18 | 153.76 | 0.3508 | -811.0 | -574.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.60 | 112.09 | -9.39 | 156.88 | 0.3976 | -853.0 | -690.4 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -13.76 | 112.24 | -9.24 | 152.59 | 0.3403 | -1001.0 | -778.6 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -18.53 | 111.98 | -9.50 | 157.57 | 0.4119 | -866.0 | -682.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.39 | 111.78 | -9.70 | 152.32 | 0.3529 | -853.0 | -701.1 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -11.66 | 111.67 | -9.81 | 147.85 | 0.3150 | -795.0 | -606.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.12 | 110.87 | -10.61 | 148.26 | 0.3424 | -963.0 | -850.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.85 | 110.48 | -10.99 | 151.29 | 0.3836 | -754.0 | -621.9 | |
| 1.29 | 5.52 | 0.69 | 2.94 | -14.59 | 110.18 | -11.30 | 148.89 | 0.3687 | -1072.5 | -730.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -15.19 | 110.08 | -11.40 | 149.53 | 0.3777 | -718.0 | -658.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.91 | 109.75 | -11.73 | 148.42 | 0.3767 | -781.0 | -577.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.98 | 109.52 | -11.96 | 146.51 | 0.3660 | -566.0 | -476.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -15.85 | 108.18 | -13.30 | 146.51 | 0.4028 | -883.0 | -683.2 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -15.28 | 108.09 | -13.39 | 145.51 | 0.3962 | -929.0 | -773.2 | |
| 0.00 | 2.42 | 0.00 | 1.30 | -13.92 | 107.07 | -14.41 | 141.38 | 0.3887 | -859.0 | -684.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
