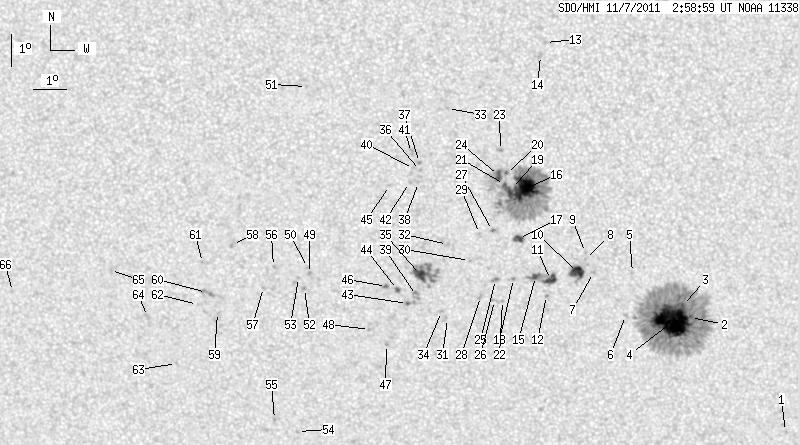

SDO HMI 2011-11-07 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.70 | 782.83 | 73.24 | 408.02 | -13.83 | 121.57 | 0.65 | 181.48 | 0.3094 | 465.9 | 296.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.70 | -18.91 | 128.08 | 7.15 | 196.99 | 0.4047 | 564.0 | 486.5 | |
| 1.29 | 389.31 | 0.68 | 204.53 | -15.26 | 125.00 | 4.07 | 191.85 | 0.3348 | 1054.6 | 437.2 | |
| 1.38 | -2.00 | 0.72 | -2.00 | -14.88 | 124.75 | 3.82 | 191.37 | 0.3279 | 1146.0 | 999999 | |
| 57.23 | -2.00 | 30.07 | -2.00 | -15.38 | 124.45 | 3.52 | 190.21 | 0.3351 | 1501.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.84 | 123.20 | 2.27 | 187.23 | 0.3067 | -633.0 | -471.4 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -15.19 | 122.99 | 2.07 | 186.10 | 0.3285 | 871.0 | 611.4 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -13.84 | 122.00 | 1.07 | 183.44 | 0.3048 | -629.0 | -509.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.44 | 121.76 | 0.83 | 182.71 | 0.2978 | -619.0 | -418.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.22 | 121.76 | 0.83 | 182.75 | 0.2942 | -738.0 | -563.7 | |
| 11.14 | 15.45 | 5.79 | 8.03 | -13.84 | 121.51 | 0.58 | 181.87 | 0.3044 | 1026.8 | 634.3 | |
| 7.16 | 21.32 | 3.73 | 11.09 | -14.06 | 120.69 | -0.24 | 179.23 | 0.3079 | 948.2 | -65.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.56 | 120.56 | -0.37 | 178.88 | 0.3163 | 792.0 | 658.8 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -6.79 | 120.54 | -0.39 | 177.91 | 0.1846 | 833.0 | 566.1 | |
| 0.00 | 2.68 | 0.00 | 1.35 | -7.18 | 120.39 | -0.54 | 177.21 | 0.1915 | 767.0 | 648.9 | |
| 2.85 | -11.00 | 1.48 | -11.00 | -13.97 | 120.23 | -0.70 | 177.77 | 0.3066 | -966.5 | 999999 | |
| 29.78 | 221.42 | 15.28 | 113.66 | -11.24 | 119.93 | -1.00 | 176.23 | 0.2611 | 1344.2 | 487.9 | |
| 5.52 | 6.56 | 2.86 | 3.39 | -12.78 | 119.71 | -1.22 | 175.85 | 0.2873 | -1055.5 | -821.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.03 | 119.55 | -1.38 | 175.65 | 0.3083 | -857.0 | -639.9 | |
| 0.78 | -16.00 | 0.40 | -16.00 | -11.24 | 119.51 | -1.42 | 174.64 | 0.2617 | 990.6 | 999999 | |
| 1.21 | -16.00 | 0.62 | -16.00 | -10.78 | 119.36 | -1.57 | 173.89 | 0.2541 | 981.5 | 999999 | |
| 1.21 | -16.00 | 0.62 | -16.00 | -11.12 | 119.30 | -1.63 | 173.80 | 0.2599 | 1082.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.72 | 119.21 | -1.72 | 174.78 | 0.3202 | 334.0 | 388.5 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -10.08 | 119.18 | -1.75 | 172.86 | 0.2426 | 1097.0 | 822.6 | |
| 5.09 | -16.00 | 2.61 | -16.00 | -10.84 | 119.12 | -1.81 | 172.99 | 0.2557 | 1128.1 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.89 | -14.06 | 119.00 | -1.93 | 173.93 | 0.3096 | -1082.0 | -778.3 | |
| 0.00 | 3.02 | 0.00 | 1.58 | -14.72 | 118.97 | -1.96 | 174.04 | 0.3206 | 604.0 | 408.2 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.54 | 118.92 | -2.01 | 173.07 | 0.2845 | 832.0 | 587.1 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -14.59 | 118.54 | -2.39 | 172.70 | 0.3193 | -728.0 | -698.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.63 | 118.53 | -2.40 | 171.76 | 0.2869 | 769.0 | 491.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.47 | 118.21 | -2.72 | 171.17 | 0.3016 | -1007.0 | -839.9 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.29 | 117.51 | -3.42 | 170.02 | 0.3333 | -552.0 | -580.7 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -12.98 | 117.55 | -3.38 | 168.72 | 0.2954 | -956.0 | -802.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -8.80 | 117.59 | -3.34 | 165.21 | 0.2263 | 974.0 | 737.4 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -15.07 | 117.33 | -3.60 | 169.37 | 0.3302 | -806.0 | -684.8 | |
| 11.57 | 37.46 | 6.03 | 19.53 | -13.91 | 116.70 | -4.22 | 166.76 | 0.3136 | -1029.5 | -828.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.70 | 116.76 | -4.17 | 164.04 | 0.2612 | 1019.0 | 844.5 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.45 | 116.73 | -4.20 | 163.67 | 0.2573 | 1179.0 | 958.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.07 | 116.69 | -4.24 | 164.19 | 0.2675 | 751.0 | 641.6 | |
| 0.00 | 5.18 | 0.00 | 2.71 | -14.57 | 116.57 | -4.36 | 166.85 | 0.3248 | -633.0 | -794.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.64 | 116.55 | -4.38 | 163.21 | 0.2612 | 613.0 | 563.6 | |
| 0.00 | 2.93 | 0.00 | 1.50 | -10.15 | 116.49 | -4.44 | 162.44 | 0.2536 | 657.0 | 667.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.07 | 116.42 | -4.51 | 163.23 | 0.2688 | 793.0 | 641.2 | |
| 0.95 | 3.54 | 0.50 | 1.86 | -14.82 | 116.29 | -4.64 | 166.22 | 0.3299 | -985.8 | -780.0 | |
| 2.07 | 2.68 | 1.08 | 1.40 | -14.39 | 115.99 | -4.94 | 165.02 | 0.3241 | -1033.2 | -853.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.16 | 115.81 | -5.12 | 161.24 | 0.2735 | 858.0 | 591.5 | |
| 1.47 | 1.99 | 0.77 | 1.04 | -14.29 | 115.65 | -5.28 | 163.97 | 0.3242 | -1031.8 | -994.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -16.12 | 115.61 | -5.32 | 165.32 | 0.3533 | -865.0 | -781.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.65 | 115.09 | -5.84 | 163.58 | 0.3481 | -857.0 | -650.6 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -13.91 | 113.29 | -7.64 | 156.96 | 0.3312 | -1020.0 | -824.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.72 | 113.23 | -7.70 | 156.58 | 0.3287 | -943.0 | -731.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.16 | 113.35 | -7.58 | 147.68 | 0.2454 | 874.0 | 565.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.38 | 113.12 | -7.81 | 157.07 | 0.3394 | -914.0 | -784.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.03 | 112.94 | -7.98 | 156.20 | 0.3354 | -767.0 | -591.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -18.92 | 112.71 | -8.22 | 160.66 | 0.4102 | -793.0 | -638.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -18.54 | 112.00 | -8.93 | 158.78 | 0.4085 | -848.0 | -716.6 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.70 | 112.18 | -8.75 | 153.77 | 0.3357 | -862.0 | -770.8 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.36 | 111.85 | -9.08 | 153.80 | 0.3478 | -924.0 | -750.8 | |
| 0.00 | 2.76 | 0.00 | 1.45 | -13.03 | 110.94 | -9.99 | 149.63 | 0.3357 | -813.0 | -719.3 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -15.16 | 110.38 | -10.55 | 151.36 | 0.3704 | -449.0 | -405.3 | |
| 0.00 | 5.78 | 0.00 | 3.07 | -14.54 | 110.06 | -10.87 | 149.78 | 0.3641 | -903.0 | -829.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.60 | 109.98 | -10.94 | 148.21 | 0.3518 | -825.0 | -663.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.92 | 109.76 | -11.17 | 149.64 | 0.3719 | -798.0 | -621.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.79 | 108.99 | -11.94 | 150.51 | 0.4040 | -853.0 | -604.9 | |
| 0.00 | 3.19 | 0.00 | 1.72 | -15.32 | 108.17 | -12.76 | 146.81 | 0.3909 | -808.0 | -611.7 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -13.89 | 107.09 | -13.84 | 142.43 | 0.3826 | -760.0 | -683.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -14.61 | 103.92 | -17.01 | 137.86 | 0.4237 | -851.0 | -678.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
