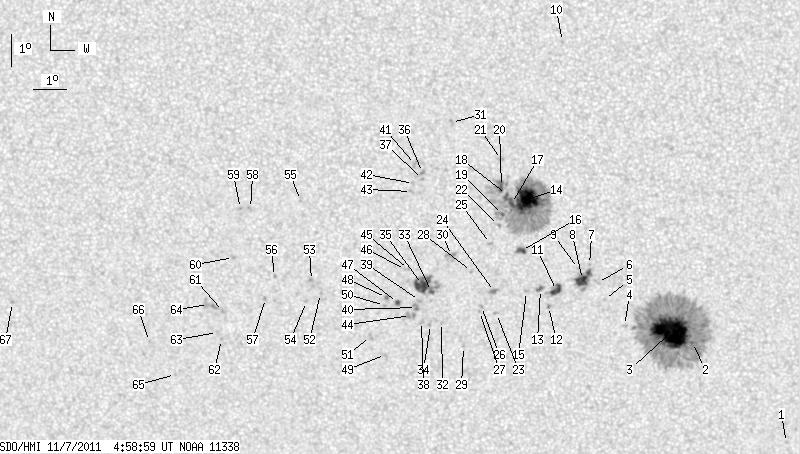

SDO HMI 2011-11-07 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.35 | 801.06 | 73.64 | 417.48 | -13.79 | 121.55 | 1.72 | 184.87 | 0.3092 | 421.4 | 288.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 04:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.52 | -18.90 | 128.13 | 8.29 | 199.52 | 0.4101 | 682.0 | 472.1 | |
| 0.86 | 390.90 | 0.46 | 205.60 | -15.69 | 125.06 | 5.23 | 194.76 | 0.3459 | 587.0 | 415.9 | |
| 64.75 | -2.00 | 34.06 | -2.00 | -15.34 | 124.40 | 4.57 | 193.21 | 0.3377 | 1481.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -15.15 | 122.95 | 3.12 | 189.19 | 0.3299 | 757.0 | 565.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.33 | 122.32 | 2.49 | 187.72 | 0.3149 | 863.0 | 557.5 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.80 | 122.10 | 2.27 | 187.26 | 0.3057 | -500.0 | -440.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.24 | 121.85 | 2.02 | 186.69 | 0.2959 | -626.0 | -469.2 | |
| 10.45 | 25.04 | 5.43 | 13.01 | -13.70 | 121.64 | 1.81 | 185.84 | 0.3032 | 1050.9 | 496.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.36 | 121.52 | 1.69 | 185.55 | 0.2973 | 704.0 | 401.2 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -6.42 | 121.01 | 1.17 | 186.55 | 0.1789 | 812.0 | 705.1 | |
| 6.65 | 11.05 | 3.46 | 5.75 | -14.05 | 120.85 | 1.02 | 183.22 | 0.3079 | 1021.3 | 598.5 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -14.55 | 120.61 | 0.77 | 182.38 | 0.3160 | 918.0 | 748.8 | |
| 1.99 | 3.63 | 1.03 | 1.89 | -14.01 | 120.36 | 0.53 | 181.67 | 0.3070 | -926.6 | -794.3 | |
| 26.85 | 233.17 | 13.77 | 119.68 | -11.23 | 119.96 | 0.13 | 180.48 | 0.2600 | 1395.0 | 470.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -14.08 | 119.93 | 0.10 | 180.31 | 0.3079 | -874.0 | -671.1 | |
| 4.06 | 5.44 | 2.10 | 2.81 | -12.80 | 119.78 | -0.05 | 179.81 | 0.2866 | -1103.9 | -780.4 | |
| 1.90 | -14.00 | 0.97 | -14.00 | -11.35 | 119.48 | -0.36 | 178.66 | 0.2622 | 1041.0 | 999999 | |
| 1.21 | -14.00 | 0.62 | -14.00 | -11.07 | 119.33 | -0.51 | 178.05 | 0.2576 | 1015.7 | 999999 | |
| 1.21 | -14.00 | 0.62 | -14.00 | -11.69 | 119.20 | -0.63 | 177.68 | 0.2680 | 857.1 | 999999 | |
| 3.63 | -14.00 | 1.86 | -14.00 | -10.83 | 119.18 | -0.66 | 177.43 | 0.2535 | 1189.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -10.00 | 119.18 | -0.66 | 177.28 | 0.2394 | 1075.0 | 786.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.03 | 119.08 | -0.75 | 177.30 | 0.2739 | 837.0 | 660.1 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -14.76 | 119.01 | -0.82 | 177.50 | 0.3197 | 782.0 | 585.9 | |
| 0.00 | 3.88 | 0.00 | 2.02 | -14.08 | 118.95 | -0.88 | 177.21 | 0.3083 | -1041.0 | -774.0 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -12.58 | 118.84 | -1.00 | 176.55 | 0.2834 | 795.0 | 554.2 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -14.55 | 118.55 | -1.28 | 176.06 | 0.3165 | -909.0 | -720.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.70 | 118.49 | -1.35 | 175.90 | 0.3191 | -782.0 | -604.9 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -13.45 | 118.25 | -1.58 | 174.82 | 0.2987 | -864.0 | -639.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -15.80 | 117.99 | -1.85 | 174.71 | 0.3380 | -768.0 | -540.8 | |
| 0.00 | 5.53 | 0.00 | 2.86 | -12.96 | 117.65 | -2.19 | 172.63 | 0.2916 | -934.0 | -766.9 | |
| 0.00 | 2.42 | 0.00 | 1.23 | -8.87 | 117.68 | -2.16 | 170.35 | 0.2231 | 796.0 | 731.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.05 | 117.32 | -2.52 | 172.51 | 0.3269 | -761.0 | -643.2 | |
| 1.04 | 29.44 | 0.54 | 15.32 | -14.08 | 117.02 | -2.81 | 171.18 | 0.3116 | -818.0 | -895.4 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -15.11 | 116.98 | -2.86 | 171.55 | 0.3287 | -698.0 | -585.7 | |
| 14.85 | -33.00 | 7.73 | -33.00 | -13.86 | 116.75 | -3.09 | 170.21 | 0.3088 | -1067.8 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.24 | -10.40 | 116.79 | -3.05 | 167.95 | 0.2515 | 1177.0 | 889.6 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.62 | 116.79 | -3.05 | 168.12 | 0.2551 | 1107.0 | 786.9 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -15.02 | 116.70 | -3.13 | 170.69 | 0.3279 | -774.0 | -623.0 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -14.36 | 116.65 | -3.18 | 170.19 | 0.3172 | -668.0 | -616.5 | |
| 0.00 | 3.80 | 0.00 | 1.99 | -14.58 | 116.55 | -3.28 | 170.03 | 0.3211 | -914.0 | -868.5 | |
| 0.00 | 3.02 | 0.00 | 1.54 | -10.16 | 116.58 | -3.25 | 166.93 | 0.2482 | 805.0 | 733.7 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.74 | 116.51 | -3.32 | 167.20 | 0.2581 | 703.0 | 553.5 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -10.99 | 116.45 | -3.38 | 167.18 | 0.2624 | 876.0 | 650.5 | |
| 0.00 | 5.96 | 0.00 | 3.12 | -14.83 | 116.37 | -3.47 | 169.61 | 0.3258 | -774.0 | -786.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -13.40 | 116.33 | -3.51 | 168.60 | 0.3024 | -875.0 | -692.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.40 | 116.23 | -3.60 | 168.31 | 0.3027 | -911.0 | -637.6 | |
| 1.90 | 2.68 | 0.99 | 1.40 | -14.43 | 115.97 | -3.86 | 168.20 | 0.3204 | -1005.9 | -838.0 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -14.27 | 115.64 | -4.20 | 167.10 | 0.3191 | -1135.0 | -970.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -16.07 | 115.57 | -4.26 | 168.11 | 0.3482 | -792.0 | -654.1 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.52 | 115.57 | -4.26 | 167.08 | 0.3234 | -820.0 | -638.9 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -15.50 | 115.12 | -4.72 | 166.50 | 0.3408 | -745.0 | -699.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.16 | 113.61 | -6.23 | 161.13 | 0.3265 | -832.0 | -691.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.76 | 113.34 | -6.49 | 159.95 | 0.3217 | -956.0 | -798.8 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.42 | 113.17 | -6.66 | 160.17 | 0.3329 | -894.0 | -717.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -11.28 | 113.07 | -6.76 | 155.99 | 0.2852 | -902.0 | -723.2 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -13.64 | 112.21 | -7.63 | 156.65 | 0.3269 | -925.0 | -758.7 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -14.33 | 111.90 | -7.93 | 156.69 | 0.3393 | -851.0 | -695.0 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -11.54 | 111.53 | -8.30 | 151.78 | 0.3004 | -772.0 | -691.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.55 | 111.23 | -8.61 | 150.91 | 0.3029 | -995.0 | -800.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.06 | 110.96 | -8.87 | 152.52 | 0.3271 | -926.0 | -783.5 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -14.75 | 110.58 | -9.25 | 153.87 | 0.3546 | -838.0 | -670.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.63 | 110.48 | -9.35 | 154.73 | 0.3682 | -842.0 | -692.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.41 | 110.37 | -9.47 | 154.19 | 0.3658 | -931.0 | -710.4 | |
| 0.00 | 7.60 | 0.00 | 4.02 | -14.54 | 110.13 | -9.71 | 152.48 | 0.3548 | -900.0 | -783.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -16.76 | 108.98 | -10.86 | 152.71 | 0.3951 | -712.0 | -507.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -15.73 | 108.22 | -11.62 | 149.76 | 0.3866 | -828.0 | -611.2 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -14.57 | 103.95 | -15.88 | 139.70 | 0.4113 | -819.0 | -657.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
