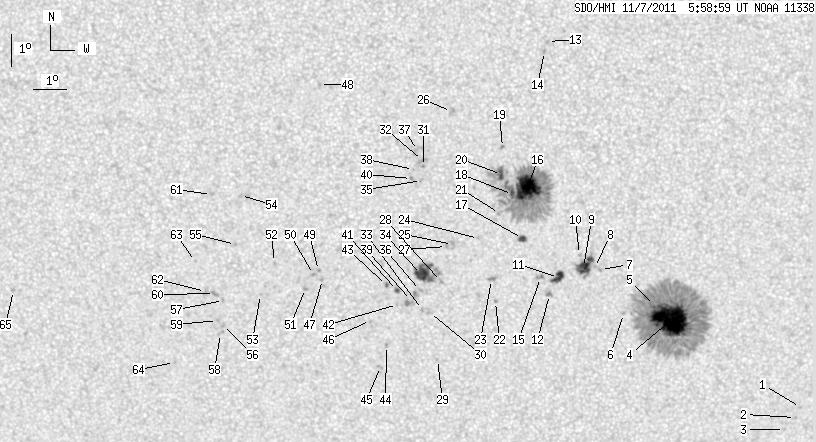

SDO HMI 2011-11-07 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.13 | 821.23 | 73.48 | 428.25 | -13.83 | 121.60 | 2.32 | 186.72 | 0.3109 | 505.1 | 276.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | -18.18 | 128.56 | 9.27 | 202.31 | 0.4049 | 828.0 | 616.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -18.50 | 128.42 | 9.13 | 201.70 | 0.4087 | 661.0 | 580.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -18.88 | 128.09 | 8.80 | 200.64 | 0.4125 | 707.0 | 511.5 | |
| 59.74 | 416.02 | 31.45 | 218.96 | -15.35 | 124.41 | 5.13 | 194.75 | 0.3399 | 1489.6 | 407.9 | |
| 0.69 | -4.00 | 0.36 | -4.00 | -14.91 | 123.88 | 4.59 | 193.59 | 0.3307 | 1174.9 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -15.16 | 122.93 | 3.64 | 190.70 | 0.3314 | 740.0 | 565.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.78 | 122.20 | 2.91 | 189.30 | 0.3067 | -633.0 | -542.4 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -13.71 | 122.01 | 2.73 | 188.75 | 0.3052 | -113.0 | -157.2 | |
| 10.27 | 20.63 | 5.34 | 10.72 | -13.71 | 121.68 | 2.39 | 187.68 | 0.3044 | 1103.1 | 455.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.31 | 121.55 | 2.26 | 187.46 | 0.2974 | 611.0 | 476.7 | |
| 8.37 | 9.84 | 4.36 | 5.12 | -14.02 | 120.92 | 1.63 | 185.16 | 0.3081 | 944.0 | 593.4 | |
| 0.00 | 2.76 | 0.00 | 1.44 | -14.55 | 120.64 | 1.36 | 184.17 | 0.3165 | 1031.0 | 760.4 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -6.78 | 120.55 | 1.26 | 186.81 | 0.1853 | 839.0 | 665.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -7.09 | 120.46 | 1.17 | 186.15 | 0.1903 | 1003.0 | 682.8 | |
| 0.00 | 3.71 | 0.00 | 1.93 | -14.02 | 120.36 | 1.08 | 183.41 | 0.3074 | -1048.0 | -739.9 | |
| 37.29 | 229.29 | 19.13 | 117.68 | -11.23 | 119.96 | 0.67 | 182.54 | 0.2602 | 1334.6 | 438.2 | |
| 3.88 | 4.75 | 2.01 | 2.45 | -12.81 | 119.81 | 0.52 | 181.79 | 0.2867 | -1082.4 | -819.9 | |
| 2.33 | -16.00 | 1.20 | -16.00 | -11.45 | 119.50 | 0.22 | 180.81 | 0.2637 | 1001.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -10.01 | 119.20 | -0.09 | 179.65 | 0.2392 | 1065.0 | 832.8 | |
| 4.23 | -16.00 | 2.17 | -16.00 | -10.83 | 119.17 | -0.12 | 179.55 | 0.2532 | 1187.2 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -12.03 | 119.11 | -0.18 | 179.36 | 0.2735 | 624.0 | 570.2 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.77 | 118.99 | -0.30 | 179.08 | 0.3194 | 781.0 | 474.7 | |
| 0.00 | 2.94 | 0.00 | 1.53 | -14.08 | 118.86 | -0.42 | 178.66 | 0.3080 | -930.0 | -808.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.81 | 118.47 | -0.82 | 177.21 | 0.2869 | 728.0 | 510.8 | |
| 0.00 | 4.06 | 0.00 | 2.10 | -12.99 | 117.68 | -1.61 | 174.57 | 0.2910 | -938.0 | -707.9 | |
| 0.00 | 3.63 | 0.00 | 1.84 | -8.91 | 117.67 | -1.62 | 172.75 | 0.2222 | 781.0 | 680.1 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -13.06 | 117.49 | -1.79 | 173.98 | 0.2923 | -990.0 | -774.5 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -14.15 | 117.33 | -1.96 | 173.86 | 0.3107 | -803.0 | -635.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -16.60 | 117.18 | -2.10 | 174.23 | 0.3513 | -679.0 | -476.8 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -15.12 | 116.95 | -2.33 | 173.07 | 0.3275 | -770.0 | -596.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -10.59 | 116.81 | -2.47 | 170.29 | 0.2527 | 1054.0 | 882.1 | |
| 0.00 | 3.63 | 0.00 | 1.85 | -10.41 | 116.78 | -2.50 | 170.05 | 0.2497 | 1121.0 | 812.9 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -15.03 | 116.74 | -2.55 | 172.40 | 0.3264 | -869.0 | -748.1 | |
| 12.00 | 32.20 | 6.24 | 16.75 | -13.93 | 116.72 | -2.57 | 171.86 | 0.3084 | -1077.8 | -860.6 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -11.02 | 116.75 | -2.54 | 170.33 | 0.2600 | 729.0 | 653.6 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -14.43 | 116.68 | -2.60 | 171.98 | 0.3167 | -930.0 | -726.0 | |
| 0.00 | 4.92 | 0.00 | 2.51 | -10.10 | 116.64 | -2.65 | 169.24 | 0.2450 | 831.0 | 653.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.68 | 116.51 | -2.78 | 169.20 | 0.2551 | 768.0 | 619.2 | |
| 0.00 | 8.89 | 0.00 | 4.65 | -14.74 | 116.40 | -2.88 | 171.29 | 0.3226 | -672.0 | -856.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -10.96 | 116.45 | -2.84 | 169.16 | 0.2599 | 868.0 | 709.6 | |
| 0.95 | 2.16 | 0.50 | 1.13 | -14.43 | 115.98 | -3.31 | 169.85 | 0.3186 | -1143.5 | -908.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.87 | 115.97 | -3.32 | 170.07 | 0.3258 | -829.0 | -623.0 | |
| 1.38 | 1.64 | 0.72 | 0.86 | -14.28 | 115.64 | -3.65 | 168.75 | 0.3171 | -961.6 | -900.7 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -16.16 | 115.61 | -3.68 | 169.75 | 0.3478 | -859.0 | -663.3 | |
| 0.00 | 2.24 | 0.00 | 1.19 | -16.83 | 115.41 | -3.88 | 169.57 | 0.3591 | -596.0 | -512.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.38 | 115.13 | -4.16 | 167.96 | 0.3367 | -616.0 | -617.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.10 | 113.68 | -5.61 | 162.82 | 0.3223 | -896.0 | -781.5 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -8.10 | 113.70 | -5.58 | 154.87 | 0.2279 | 837.0 | 564.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.82 | 113.56 | -5.73 | 162.21 | 0.3184 | -953.0 | -771.1 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -13.95 | 113.41 | -5.88 | 161.88 | 0.3212 | -1063.0 | -855.8 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -14.39 | 113.15 | -6.14 | 161.59 | 0.3295 | -798.0 | -710.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.58 | 112.21 | -7.07 | 158.10 | 0.3223 | -819.0 | -697.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.59 | 111.75 | -7.54 | 158.01 | 0.3405 | -738.0 | -572.0 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -11.52 | 111.23 | -8.06 | 152.43 | 0.2980 | -864.0 | -774.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.03 | 111.03 | -8.26 | 154.12 | 0.3220 | -926.0 | -737.1 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -15.54 | 110.56 | -8.72 | 156.11 | 0.3624 | -781.0 | -608.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -14.78 | 110.59 | -8.69 | 155.28 | 0.3510 | -868.0 | -675.9 | |
| 0.00 | 2.50 | 0.00 | 1.33 | -15.82 | 110.46 | -8.83 | 156.18 | 0.3673 | -519.0 | -537.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -15.41 | 110.38 | -8.91 | 155.52 | 0.3618 | -893.0 | -790.2 | |
| 0.00 | 3.54 | 0.00 | 1.87 | -14.57 | 110.32 | -8.96 | 154.33 | 0.3497 | -1132.0 | -871.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -11.49 | 110.34 | -8.94 | 149.87 | 0.3048 | -858.0 | -655.1 | |
| 0.00 | 3.71 | 0.00 | 1.96 | -14.51 | 110.05 | -9.24 | 153.57 | 0.3508 | -783.0 | -653.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.58 | 109.77 | -9.51 | 151.61 | 0.3393 | -827.0 | -627.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.76 | 108.97 | -10.32 | 153.86 | 0.3911 | -797.0 | -582.0 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -14.56 | 104.01 | -15.28 | 140.76 | 0.4049 | -864.0 | -642.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
