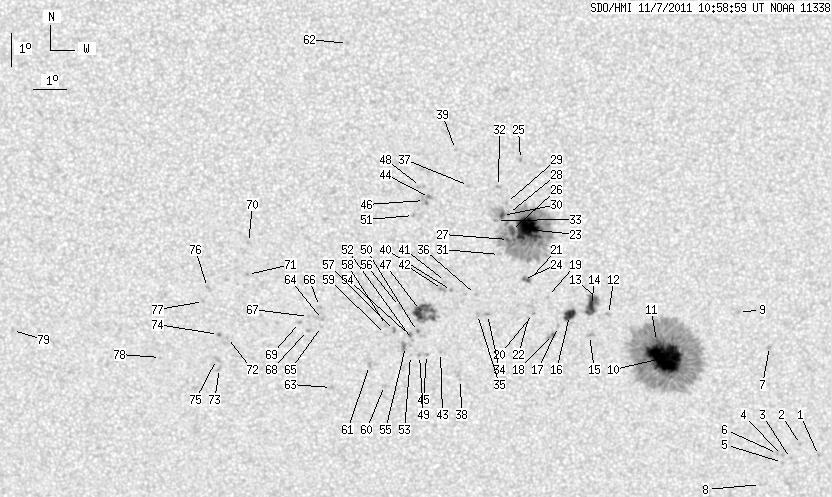

SDO HMI 2011-11-07 10:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.22 | 778.85 | 75.85 | 407.42 | -13.87 | 121.76 | 5.20 | 195.49 | 0.3198 | 413.5 | 273.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 10:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.71 | -18.48 | 129.32 | 12.76 | 209.10 | 0.4328 | 773.0 | 629.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -18.12 | 128.72 | 12.16 | 208.36 | 0.4232 | 783.0 | 656.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -18.56 | 128.43 | 11.87 | 207.28 | 0.4273 | 675.0 | 541.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -18.46 | 128.17 | 11.61 | 206.88 | 0.4240 | 796.0 | 671.0 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -18.69 | 128.18 | 11.62 | 206.66 | 0.4272 | 697.0 | 569.8 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -18.39 | 128.00 | 11.44 | 206.63 | 0.4219 | 886.0 | 640.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -14.99 | 127.54 | 10.99 | 209.91 | 0.3708 | 709.0 | 610.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -19.39 | 127.52 | 10.97 | 204.62 | 0.4326 | 656.0 | 527.7 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -13.92 | 126.53 | 9.97 | 209.06 | 0.3475 | -995.0 | -693.4 | |
| 62.73 | 391.92 | 33.18 | 207.27 | -15.30 | 124.31 | 7.76 | 201.79 | 0.3523 | 1394.8 | 391.7 | |
| 1.55 | -10.00 | 0.82 | -10.00 | -14.80 | 124.02 | 7.46 | 201.58 | 0.3428 | 1356.1 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -13.94 | 122.51 | 5.95 | 198.35 | 0.3211 | -823.0 | -527.4 | |
| 0.95 | 17.09 | 0.49 | 8.91 | -13.44 | 122.13 | 5.57 | 197.75 | 0.3112 | -372.9 | 648.6 | |
| 12.86 | -13.00 | 6.70 | -13.00 | -13.66 | 121.98 | 5.42 | 197.09 | 0.3139 | 925.2 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.27 | -14.60 | 121.94 | 5.38 | 196.12 | 0.3286 | 896.0 | 778.9 | |
| 8.80 | 10.27 | 4.59 | 5.36 | -13.97 | 121.31 | 4.75 | 194.83 | 0.3158 | 1038.4 | 729.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.31 | 120.98 | 4.42 | 193.57 | 0.3199 | 717.0 | 582.2 | |
| 1.29 | 4.40 | 0.68 | 2.30 | -14.56 | 120.83 | 4.27 | 192.95 | 0.3234 | 816.0 | 670.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.37 | 120.63 | 4.07 | 193.21 | 0.3034 | -772.0 | -692.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.90 | 120.20 | 3.65 | 191.53 | 0.3105 | -790.0 | -639.5 | |
| 1.47 | 4.06 | 0.76 | 2.10 | -12.87 | 120.04 | 3.48 | 191.70 | 0.2931 | -964.2 | -855.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -14.02 | 120.05 | 3.50 | 190.98 | 0.3120 | -604.0 | -479.2 | |
| 34.95 | 205.28 | 17.96 | 105.55 | -11.30 | 119.99 | 3.43 | 192.75 | 0.2671 | 1269.9 | 426.0 | |
| 0.95 | -21.00 | 0.49 | -21.00 | -12.84 | 119.88 | 3.33 | 191.22 | 0.2921 | -938.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -9.15 | 119.75 | 3.20 | 193.86 | 0.2308 | 1017.0 | 797.9 | |
| 4.31 | -23.00 | 2.22 | -23.00 | -11.33 | 119.50 | 2.94 | 190.97 | 0.2659 | 1083.5 | 999999 | |
| 1.21 | -23.00 | 0.62 | -23.00 | -11.60 | 119.41 | 2.86 | 190.46 | 0.2702 | 841.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -10.80 | 119.40 | 2.85 | 191.01 | 0.2569 | 971.0 | 865.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.47 | 119.34 | 2.78 | 191.02 | 0.2511 | 821.0 | 539.5 | |
| 1.90 | 11.39 | 0.97 | 5.83 | -10.86 | 119.22 | 2.67 | 190.28 | 0.2573 | 1260.1 | 718.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -12.07 | 119.14 | 2.59 | 189.21 | 0.2771 | 649.0 | 468.0 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -9.98 | 119.10 | 2.54 | 190.43 | 0.2421 | 964.0 | 775.3 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -11.02 | 119.04 | 2.49 | 189.50 | 0.2594 | 641.0 | 620.7 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -13.93 | 118.80 | 2.24 | 187.13 | 0.3071 | -850.0 | -601.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.92 | 118.49 | 1.93 | 186.16 | 0.3065 | -882.0 | -699.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.30 | 118.42 | 1.87 | 186.18 | 0.2961 | -793.0 | -439.3 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -9.94 | 118.19 | 1.63 | 186.77 | 0.2393 | 781.0 | 576.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.96 | 117.98 | 1.43 | 184.06 | 0.3394 | -637.0 | -467.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -8.84 | 117.79 | 1.24 | 185.60 | 0.2199 | 957.0 | 718.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.18 | 117.69 | 1.13 | 183.79 | 0.2929 | -936.0 | -753.6 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -12.90 | 117.51 | 0.95 | 183.23 | 0.2880 | -551.0 | -398.0 | |
| 0.00 | 3.80 | 0.00 | 1.97 | -13.15 | 117.42 | 0.86 | 182.88 | 0.2921 | -1116.0 | -773.9 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.11 | 117.36 | 0.81 | 182.41 | 0.3248 | -819.0 | -685.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -10.31 | 117.01 | 0.46 | 181.86 | 0.2440 | 976.0 | 846.8 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -15.17 | 116.93 | 0.37 | 181.12 | 0.3256 | -755.0 | -607.0 | |
| 0.00 | 2.67 | 0.00 | 1.37 | -10.40 | 116.86 | 0.31 | 181.24 | 0.2455 | 904.0 | 782.3 | |
| 12.25 | 31.58 | 6.37 | 16.41 | -13.80 | 116.75 | 0.19 | 180.61 | 0.3027 | -1137.5 | -813.5 | |
| 0.00 | 2.93 | 0.00 | 1.50 | -9.97 | 116.74 | 0.19 | 180.77 | 0.2381 | 905.0 | 710.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.21 | 116.72 | 0.16 | 180.47 | 0.3261 | -847.0 | -690.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.45 | 116.65 | 0.10 | 180.30 | 0.3136 | -941.0 | -857.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -10.86 | 116.53 | -0.02 | 179.90 | 0.2532 | 835.0 | 635.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.70 | 116.50 | -0.06 | 179.83 | 0.3178 | -623.0 | -615.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.21 | 116.44 | -0.12 | 179.65 | 0.3261 | -523.0 | -400.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.58 | 116.41 | -0.15 | 179.55 | 0.3157 | -974.0 | -895.9 | |
| 0.00 | 5.61 | 0.00 | 2.93 | -14.92 | 116.29 | -0.27 | 179.18 | 0.3214 | -945.0 | -803.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -13.67 | 116.10 | -0.45 | 178.53 | 0.3007 | -868.0 | -702.7 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -14.42 | 115.95 | -0.61 | 178.11 | 0.3132 | -1109.0 | -868.8 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -14.27 | 115.70 | -0.85 | 177.33 | 0.3108 | -870.0 | -644.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.55 | 115.67 | -0.88 | 177.27 | 0.3155 | -739.0 | -579.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -16.15 | 115.63 | -0.92 | 177.40 | 0.3421 | -838.0 | -678.1 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -15.52 | 115.17 | -1.38 | 175.97 | 0.3321 | -790.0 | -675.7 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -5.64 | 114.56 | -1.99 | 168.00 | 0.1673 | 747.0 | 644.4 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -16.22 | 113.99 | -2.56 | 172.83 | 0.3455 | -822.0 | -588.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.08 | 113.74 | -2.81 | 171.16 | 0.3110 | -857.0 | -772.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -14.30 | 113.71 | -2.85 | 171.17 | 0.3147 | -681.0 | -513.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.68 | 113.66 | -2.90 | 170.67 | 0.3046 | -651.0 | -581.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.99 | 113.32 | -3.24 | 169.79 | 0.3107 | -834.0 | -642.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.43 | 113.28 | -3.28 | 169.93 | 0.3180 | -788.0 | -688.9 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.18 | 113.04 | -3.52 | 169.05 | 0.3146 | -901.0 | -703.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.71 | 111.52 | -5.04 | 162.10 | 0.2809 | -788.0 | -612.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.69 | 111.47 | -5.08 | 162.99 | 0.2969 | -837.0 | -693.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.66 | 110.81 | -5.74 | 162.93 | 0.3313 | -810.0 | -649.2 | |
| 0.00 | 2.67 | 0.00 | 1.41 | -15.64 | 110.54 | -6.02 | 163.05 | 0.3480 | -721.0 | -589.3 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -14.57 | 110.54 | -6.02 | 162.07 | 0.3312 | -953.0 | -869.6 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -15.35 | 110.45 | -6.10 | 162.58 | 0.3440 | -915.0 | -761.3 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -13.11 | 110.24 | -6.32 | 159.67 | 0.3100 | -905.0 | -696.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.54 | 110.10 | -6.45 | 159.78 | 0.3176 | -840.0 | -681.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -15.31 | 108.72 | -7.84 | 158.00 | 0.3528 | -676.0 | -512.2 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -14.51 | 104.13 | -12.43 | 146.25 | 0.3765 | -835.0 | -572.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
