SDO HMI 2011-11-07 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.45 | 784.37 | 70.46 | 412.31 | -13.96 | 121.77 | 7.41 | 201.70 | 0.3326 | 435.0 | 269.4 | |
|
previous
or next observation for the same group /

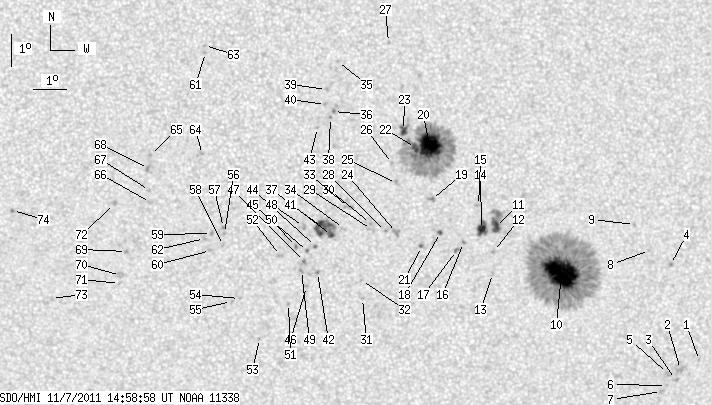

back to the solar disc SDO HMI 2011-11-07 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | -18.12 | 128.77 | 14.40 | 212.56 | 0.4411 | 702.0 | 595.6 | |
| 0.00 | 4.23 | 0.00 | 2.33 | -18.40 | 128.18 | 13.81 | 211.15 | 0.4399 | 913.0 | 755.3 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -18.72 | 128.04 | 13.68 | 210.51 | 0.4430 | 624.0 | 557.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -15.06 | 127.61 | 13.25 | 214.64 | 0.3912 | 838.0 | 673.2 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -18.52 | 127.77 | 13.40 | 210.25 | 0.4382 | 927.0 | 729.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -18.91 | 127.77 | 13.40 | 209.78 | 0.4434 | 729.0 | 562.2 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -19.10 | 127.62 | 13.26 | 209.29 | 0.4448 | 826.0 | 672.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -14.61 | 126.92 | 12.56 | 213.90 | 0.3790 | 803.0 | 587.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.79 | 126.41 | 12.05 | 214.07 | 0.3634 | -797.0 | -582.5 | |
| 60.11 | 400.41 | 31.97 | 212.92 | -15.27 | 124.20 | 9.84 | 206.93 | 0.3656 | 1426.6 | 390.1 | |
| 6.99 | 18.20 | 3.66 | 9.53 | -13.81 | 122.09 | 7.73 | 203.48 | 0.3293 | 1082.5 | 430.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -14.59 | 122.06 | 7.70 | 202.45 | 0.3409 | 1050.0 | 777.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.27 | 122.05 | 7.69 | 201.66 | 0.3513 | 731.0 | 560.1 | |
| 6.12 | 10.95 | 3.21 | 5.74 | -13.89 | 121.66 | 7.30 | 202.21 | 0.3279 | 1164.3 | 892.4 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -13.15 | 121.55 | 7.19 | 202.80 | 0.3158 | -894.0 | -707.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.30 | 121.12 | 6.76 | 200.26 | 0.3309 | 1005.0 | 844.2 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -14.54 | 120.91 | 6.55 | 199.43 | 0.3335 | 859.0 | 625.1 | |
| 1.64 | 1.90 | 0.86 | 0.99 | -13.98 | 120.40 | 6.04 | 198.58 | 0.3220 | 758.7 | 410.8 | |
| 0.00 | 2.93 | 0.00 | 1.52 | -12.95 | 120.10 | 5.74 | 198.78 | 0.3042 | -975.0 | -829.6 | |
| 34.84 | 202.75 | 17.96 | 104.57 | -11.28 | 120.01 | 5.64 | 200.44 | 0.2774 | 1324.9 | 421.7 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -14.41 | 119.83 | 5.47 | 196.53 | 0.3259 | -917.0 | -613.6 | |
| 4.14 | -20.00 | 2.13 | -20.00 | -11.34 | 119.58 | 5.22 | 198.95 | 0.2759 | 1061.7 | 999999 | |
| 5.52 | 9.31 | 2.83 | 4.78 | -10.82 | 119.21 | 4.85 | 198.29 | 0.2655 | 1081.0 | 678.0 | |
| 0.00 | 5.00 | 0.00 | 2.61 | -13.97 | 119.05 | 4.69 | 194.64 | 0.3154 | -1086.0 | -804.4 | |
| 0.00 | 2.33 | 0.00 | 1.20 | -12.45 | 119.02 | 4.66 | 195.91 | 0.2908 | 606.0 | 506.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.83 | 118.89 | 4.53 | 196.08 | 0.2802 | 783.0 | 658.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -8.13 | 118.72 | 4.36 | 200.11 | 0.2197 | 781.0 | 647.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.94 | 118.71 | 4.35 | 193.65 | 0.3135 | -799.0 | -681.9 | |
| 0.00 | 2.50 | 0.00 | 1.30 | -13.87 | 118.28 | 3.92 | 192.39 | 0.3109 | -740.0 | -727.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.69 | 118.25 | 3.89 | 192.42 | 0.3077 | -974.0 | -823.6 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -16.04 | 118.04 | 3.68 | 190.35 | 0.3451 | -693.0 | -472.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.47 | 118.00 | 3.64 | 190.55 | 0.3358 | -729.0 | -512.8 | |
| 0.00 | 3.88 | 0.00 | 2.01 | -13.19 | 117.57 | 3.21 | 190.61 | 0.2972 | -797.0 | -724.6 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -13.84 | 117.42 | 3.06 | 189.76 | 0.3075 | -685.0 | -514.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -8.70 | 117.19 | 2.83 | 192.77 | 0.2216 | 897.0 | 657.9 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.23 | 117.08 | 2.72 | 190.96 | 0.2467 | 1148.0 | 949.3 | |
| 1.12 | 25.79 | 0.58 | 13.41 | -14.05 | 117.06 | 2.70 | 188.50 | 0.3101 | -864.0 | -909.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.41 | 116.99 | 2.63 | 190.47 | 0.2495 | 967.0 | 784.7 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -9.55 | 116.86 | 2.50 | 190.62 | 0.2348 | 902.0 | 738.2 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.01 | 116.84 | 2.48 | 190.16 | 0.2423 | 872.0 | 711.6 | |
| 13.97 | -37.00 | 7.26 | -37.00 | -13.80 | 116.78 | 2.42 | 187.75 | 0.3054 | -1080.1 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -15.21 | 116.64 | 2.28 | 186.75 | 0.3283 | -908.0 | -765.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.71 | 116.60 | 2.24 | 188.75 | 0.2535 | 686.0 | 541.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.40 | 116.57 | 2.21 | 186.85 | 0.3147 | -960.0 | -853.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.55 | 116.33 | 1.97 | 186.05 | 0.3168 | -1017.0 | -859.9 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -15.65 | 116.31 | 1.95 | 185.63 | 0.3349 | -576.0 | -524.0 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.87 | 116.24 | 1.88 | 185.67 | 0.3218 | -1054.0 | -919.9 | |
| 0.00 | 3.62 | 0.00 | 1.88 | -13.77 | 116.20 | 1.84 | 185.91 | 0.3037 | -941.0 | -740.6 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -15.15 | 116.15 | 1.79 | 185.32 | 0.3264 | -908.0 | -745.3 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -14.40 | 115.99 | 1.63 | 185.06 | 0.3137 | -1006.0 | -835.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -16.19 | 115.76 | 1.39 | 183.93 | 0.3429 | -904.0 | -690.5 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -14.68 | 115.50 | 1.14 | 183.49 | 0.3177 | -746.0 | -651.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -17.30 | 114.86 | 0.50 | 181.33 | 0.3604 | -620.0 | -496.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.03 | 114.24 | -0.12 | 179.66 | 0.3395 | -739.0 | -631.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -16.12 | 113.99 | -0.37 | 178.96 | 0.3411 | -749.0 | -663.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.99 | 113.78 | -0.58 | 178.16 | 0.3059 | -869.0 | -713.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.80 | 113.75 | -0.61 | 178.04 | 0.3028 | -973.0 | -755.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -14.36 | 113.75 | -0.61 | 178.10 | 0.3121 | -829.0 | -556.9 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -13.99 | 113.39 | -0.98 | 176.89 | 0.3061 | -958.0 | -807.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.52 | 113.35 | -1.01 | 176.88 | 0.3150 | -930.0 | -593.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -8.42 | 113.22 | -1.14 | 174.67 | 0.2124 | 744.0 | 625.3 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -14.14 | 113.17 | -1.19 | 176.24 | 0.3090 | -751.0 | -652.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -8.21 | 113.20 | -1.17 | 174.44 | 0.2088 | 881.0 | 630.5 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -11.54 | 113.12 | -1.24 | 175.40 | 0.2654 | -815.0 | -636.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.58 | 111.55 | -2.82 | 169.66 | 0.2695 | -949.0 | -762.3 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -13.03 | 111.53 | -2.83 | 170.52 | 0.2936 | -501.0 | -465.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.66 | 111.50 | -2.86 | 170.21 | 0.2875 | -846.0 | -583.5 | |
| 0.00 | 3.10 | 0.00 | 1.60 | -11.98 | 111.48 | -2.88 | 169.70 | 0.2763 | -848.0 | -735.6 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -14.56 | 110.77 | -3.59 | 169.07 | 0.3209 | -1106.0 | -809.3 | |
| 0.00 | 4.40 | 0.00 | 2.31 | -15.31 | 110.58 | -3.79 | 168.95 | 0.3337 | -572.0 | -636.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.56 | 110.54 | -3.82 | 169.00 | 0.3379 | -736.0 | -573.6 | |
| 0.00 | 2.85 | 0.00 | 1.48 | -13.06 | 110.43 | -3.93 | 166.98 | 0.2977 | -983.0 | -748.8 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -16.05 | 108.42 | -5.94 | 163.61 | 0.3539 | -294.0 | -261.3 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.30 | 107.30 | -7.06 | 157.75 | 0.3174 | -904.0 | -781.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
