SDO HMI 2011-11-07 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.32 | 348.31 | 75.15 | 284.35 | 17.39 | 62.49 | -51.87 | 70.91 | 0.7948 | -307.3 | -145.9 | |
|
previous
or next observation for the same group /

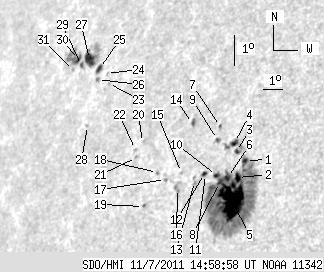

back to the solar disc SDO HMI 2011-11-07 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 253.29 | 1.68 | 197.02 | 17.66 | 64.83 | -49.53 | 70.10 | 0.7733 | -596.1 | -282.0 | |
| 3.71 | -1.00 | 2.89 | -1.00 | 17.12 | 64.64 | -49.72 | 70.82 | 0.7742 | -610.0 | 999999 | |
| 1.98 | 13.28 | 1.56 | 10.48 | 17.91 | 64.30 | -50.07 | 69.89 | 0.7793 | -581.7 | -389.5 | |
| 3.10 | -3.00 | 2.45 | -3.00 | 18.18 | 64.09 | -50.27 | 69.60 | 0.7819 | -500.1 | 999999 | |
| 53.30 | -1.00 | 41.45 | -1.00 | 16.45 | 64.59 | -49.77 | 71.70 | 0.7735 | -879.1 | 999999 | |
| 2.33 | -1.00 | 1.83 | -1.00 | 17.10 | 64.16 | -50.20 | 70.95 | 0.7792 | -357.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 18.63 | 63.21 | -51.15 | 69.21 | 0.7916 | 469.0 | 464.9 | |
| 0.43 | -1.00 | 0.34 | -1.00 | 16.93 | 63.84 | -50.53 | 71.22 | 0.7823 | -107.6 | 999999 | |
| 0.43 | 2.67 | 0.35 | 2.15 | 18.23 | 63.23 | -51.13 | 69.71 | 0.7907 | -391.0 | -319.8 | |
| 1.90 | -1.00 | 1.51 | -1.00 | 17.14 | 63.61 | -50.75 | 71.01 | 0.7849 | -314.5 | 999999 | |
| 0.26 | 2.59 | 0.21 | 2.09 | 17.14 | 63.06 | -51.30 | 71.11 | 0.7905 | 53.0 | -87.2 | |
| 1.21 | -11.00 | 0.97 | -11.00 | 17.17 | 63.00 | -51.36 | 71.09 | 0.7912 | -292.1 | 999999 | |
| 0.00 | 3.02 | 0.00 | 2.45 | 16.90 | 62.60 | -51.76 | 71.49 | 0.7948 | -391.0 | -257.7 | |
| 1.72 | 3.28 | 1.44 | 2.73 | 18.65 | 61.77 | -52.59 | 69.48 | 0.8058 | 606.7 | 470.2 | |
| 0.00 | 1.03 | 0.00 | 0.85 | 17.14 | 61.85 | -52.52 | 71.33 | 0.8027 | -433.0 | -278.5 | |
| 0.00 | 6.21 | 0.00 | 5.12 | 16.65 | 61.84 | -52.52 | 71.94 | 0.8020 | -584.0 | -327.0 | |
| 0.00 | 1.55 | 0.00 | 1.30 | 16.89 | 61.12 | -53.24 | 71.76 | 0.8094 | -371.0 | -296.7 | |
| 0.00 | 1.38 | 0.00 | 1.17 | 17.08 | 60.62 | -53.74 | 71.61 | 0.8145 | -63.0 | -50.3 | |
| 0.86 | 1.03 | 0.73 | 0.88 | 16.02 | 60.32 | -54.05 | 72.95 | 0.8161 | 455.4 | 250.5 | |
| 0.00 | 0.34 | 0.00 | 0.30 | 17.94 | 59.43 | -54.93 | 70.75 | 0.8269 | 503.0 | 450.2 | |
| 0.00 | 1.21 | 0.00 | 1.06 | 17.47 | 59.32 | -55.04 | 71.33 | 0.8273 | 549.0 | 483.6 | |
| 0.00 | 1.21 | 0.00 | 1.06 | 17.71 | 59.15 | -55.21 | 71.07 | 0.8292 | 468.0 | 413.0 | |
| 0.00 | 1.29 | 0.00 | 1.22 | 19.63 | 56.62 | -57.74 | 69.20 | 0.8541 | 573.0 | 488.5 | |
| 0.00 | 0.78 | 0.00 | 0.74 | 19.93 | 56.33 | -58.03 | 68.90 | 0.8569 | 512.0 | 509.6 | |
| 3.36 | 4.83 | 3.26 | 4.68 | 20.06 | 55.83 | -58.53 | 68.82 | 0.8612 | 611.0 | 432.3 | |
| 0.00 | 2.24 | 0.00 | 2.16 | 19.72 | 55.91 | -58.45 | 69.20 | 0.8602 | 569.0 | 461.0 | |
| 10.00 | 43.55 | 9.89 | 43.58 | 20.30 | 55.07 | -59.30 | 68.66 | 0.8678 | 705.1 | 396.9 | |
| 0.00 | 1.12 | 0.00 | 1.07 | 18.30 | 56.11 | -58.25 | 70.83 | 0.8569 | 529.0 | 468.6 | |
| 1.81 | -27.00 | 1.81 | -27.00 | 20.09 | 54.69 | -59.67 | 68.95 | 0.8705 | 449.2 | 999999 | |
| 2.76 | -27.00 | 2.78 | -27.00 | 20.26 | 54.39 | -59.97 | 68.80 | 0.8731 | 495.4 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.40 | 19.91 | 54.30 | -60.06 | 69.21 | 0.8735 | 344.0 | 310.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
