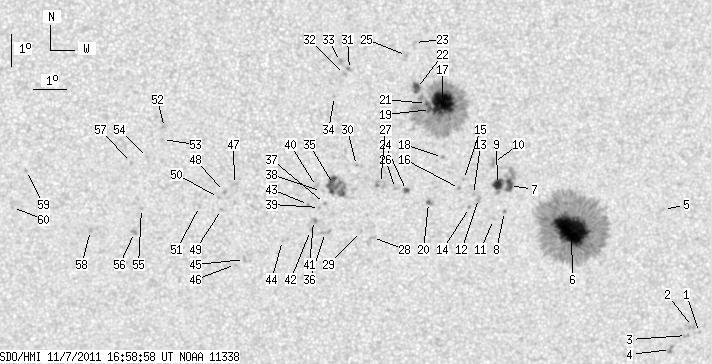

SDO HMI 2011-11-07 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.20 | 748.24 | 71.12 | 394.15 | -13.89 | 121.80 | 8.54 | 204.91 | 0.3384 | 505.9 | 290.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | -18.59 | 128.48 | 15.22 | 213.40 | 0.4541 | 664.0 | 497.2 | |
| 0.00 | 3.36 | 0.00 | 1.86 | -18.39 | 128.24 | 14.98 | 213.23 | 0.4495 | 862.0 | 776.0 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -18.67 | 128.07 | 14.81 | 212.57 | 0.4517 | 581.0 | 586.3 | |
| 0.00 | 3.36 | 0.00 | 1.87 | -19.12 | 127.59 | 14.33 | 211.19 | 0.4535 | 826.0 | 701.3 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -14.66 | 127.03 | 13.77 | 216.27 | 0.3908 | 828.0 | 669.4 | |
| 63.29 | 373.79 | 33.78 | 199.42 | -15.28 | 124.17 | 10.91 | 209.35 | 0.3740 | 1417.4 | 407.3 | |
| 6.73 | 28.20 | 3.54 | 14.82 | -13.85 | 122.17 | 8.91 | 206.53 | 0.3382 | 1020.6 | 613.7 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.66 | 122.05 | 8.79 | 205.16 | 0.3492 | 830.0 | 667.6 | |
| 7.16 | -7.00 | 3.76 | -7.00 | -13.82 | 121.80 | 8.54 | 205.61 | 0.3350 | 1203.0 | 999999 | |
| 0.00 | 4.14 | 0.00 | 2.17 | -13.13 | 121.65 | 8.39 | 206.16 | 0.3238 | -881.0 | -681.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.91 | 121.72 | 8.46 | 204.02 | 0.3506 | 772.0 | 597.1 | |
| 0.00 | 3.62 | 0.00 | 1.90 | -14.25 | 121.23 | 7.97 | 203.56 | 0.3375 | 872.0 | 741.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.12 | 121.07 | 7.81 | 203.30 | 0.3345 | 820.0 | 659.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.53 | 120.96 | 7.70 | 202.53 | 0.3400 | 798.0 | 657.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.65 | 120.74 | 7.48 | 203.00 | 0.3253 | -934.0 | -693.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.93 | 120.63 | 7.37 | 202.35 | 0.3288 | 1045.0 | 800.3 | |
| 33.71 | 213.93 | 17.41 | 110.59 | -11.29 | 120.03 | 6.77 | 204.09 | 0.2847 | 1347.3 | 414.1 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -12.96 | 120.08 | 6.82 | 201.97 | 0.3106 | -1013.0 | -804.4 | |
| 1.47 | -17.00 | 0.76 | -17.00 | -11.48 | 119.67 | 6.41 | 202.68 | 0.2851 | 989.9 | 999999 | |
| 1.12 | 3.28 | 0.59 | 1.72 | -14.36 | 119.69 | 6.43 | 199.27 | 0.3299 | -638.2 | -760.2 | |
| 1.03 | -17.00 | 0.53 | -17.00 | -11.29 | 119.55 | 6.29 | 202.54 | 0.2814 | 1087.8 | 999999 | |
| 5.43 | 7.67 | 2.80 | 3.95 | -10.83 | 119.23 | 5.97 | 202.16 | 0.2722 | 1145.4 | 765.5 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -9.42 | 119.14 | 5.89 | 204.01 | 0.2498 | 824.0 | 582.1 | |
| 2.33 | 2.85 | 1.22 | 1.49 | -13.98 | 119.00 | 5.74 | 197.71 | 0.3204 | -915.6 | -838.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -9.81 | 118.91 | 5.65 | 202.53 | 0.2543 | 832.0 | 679.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.91 | 118.66 | 5.40 | 196.78 | 0.3177 | -853.0 | -655.6 | |
| 0.00 | 6.98 | 0.00 | 3.64 | -13.76 | 118.19 | 4.93 | 195.55 | 0.3130 | -716.0 | -729.1 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -15.44 | 117.98 | 4.73 | 193.60 | 0.3392 | -711.0 | -577.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.25 | 117.64 | 4.38 | 192.77 | 0.3348 | -643.0 | -485.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.19 | 117.45 | 4.19 | 193.74 | 0.3008 | -1004.0 | -815.8 | |
| 0.00 | 2.41 | 0.00 | 1.24 | -10.23 | 117.19 | 3.93 | 195.63 | 0.2515 | 1108.0 | 846.6 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -10.39 | 117.04 | 3.78 | 194.91 | 0.2533 | 1014.0 | 808.4 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -9.99 | 116.92 | 3.66 | 194.85 | 0.2463 | 932.0 | 753.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.06 | 116.75 | 3.49 | 193.17 | 0.2632 | 778.0 | 555.0 | |
| 12.93 | 27.85 | 6.73 | 14.50 | -13.78 | 116.75 | 3.49 | 191.14 | 0.3079 | -1102.3 | -826.0 | |
| 0.00 | 4.05 | 0.00 | 2.13 | -15.28 | 116.53 | 3.27 | 189.60 | 0.3317 | -651.0 | -605.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.37 | 116.49 | 3.23 | 189.96 | 0.3167 | -1084.0 | -798.8 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -14.00 | 116.39 | 3.13 | 189.87 | 0.3103 | -598.0 | -549.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -14.50 | 116.33 | 3.08 | 189.43 | 0.3183 | -1023.0 | -788.7 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -13.84 | 116.23 | 2.97 | 189.48 | 0.3073 | -921.0 | -778.6 | |
| 0.00 | 2.93 | 0.00 | 1.53 | -14.90 | 116.16 | 2.90 | 188.69 | 0.3245 | -970.0 | -837.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.22 | 116.07 | 2.81 | 188.29 | 0.3294 | -888.0 | -761.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -14.40 | 116.00 | 2.74 | 188.45 | 0.3159 | -1019.0 | -874.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.53 | 115.21 | 1.95 | 185.67 | 0.3328 | -850.0 | -692.5 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -16.12 | 114.04 | 0.78 | 182.21 | 0.3413 | -796.0 | -627.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -16.28 | 113.76 | 0.50 | 181.41 | 0.3438 | -800.0 | -637.0 | |
| 0.00 | 2.59 | 0.00 | 1.34 | -13.77 | 113.73 | 0.47 | 181.50 | 0.3022 | -494.0 | -503.4 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -13.99 | 113.42 | 0.16 | 180.51 | 0.3057 | -943.0 | -805.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.55 | 113.33 | 0.07 | 180.21 | 0.3151 | -819.0 | -659.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.18 | 113.24 | -0.02 | 179.93 | 0.3088 | -793.0 | -582.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -14.46 | 112.65 | -0.61 | 178.12 | 0.3137 | -707.0 | -587.9 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -12.01 | 111.60 | -1.66 | 174.03 | 0.2739 | -908.0 | -759.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.38 | 111.53 | -1.73 | 173.95 | 0.2802 | -864.0 | -623.2 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -12.94 | 111.07 | -2.19 | 172.61 | 0.2904 | -873.0 | -646.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.52 | 110.87 | -2.39 | 172.67 | 0.3171 | -1069.0 | -811.0 | |
| 0.00 | 2.59 | 0.00 | 1.36 | -15.28 | 110.65 | -2.61 | 172.32 | 0.3300 | -956.0 | -803.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.09 | 110.58 | -2.68 | 171.07 | 0.2942 | -835.0 | -710.5 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -15.22 | 109.29 | -3.97 | 168.38 | 0.3328 | -920.0 | -789.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.36 | 107.37 | -5.89 | 161.20 | 0.3114 | -901.0 | -762.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.51 | 106.91 | -6.35 | 161.08 | 0.3320 | -767.0 | -617.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
