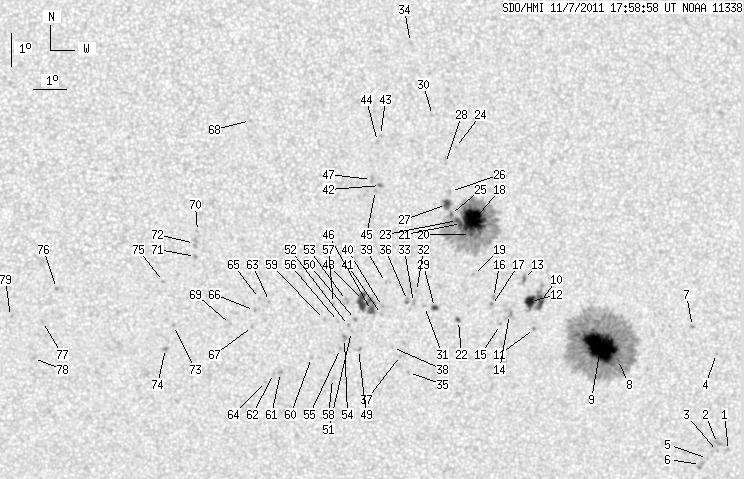

SDO HMI 2011-11-07 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.74 | 765.71 | 73.01 | 404.05 | -13.90 | 121.79 | 9.09 | 206.25 | 0.3425 | 381.2 | 294.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.91 | -18.63 | 128.48 | 15.78 | 214.28 | 0.4594 | 670.0 | 490.6 | |
| 0.00 | 6.90 | 0.00 | 3.83 | -18.39 | 128.11 | 15.40 | 213.94 | 0.4531 | 854.0 | 703.3 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -18.65 | 128.13 | 15.42 | 213.65 | 0.4566 | 710.0 | 620.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -15.53 | 127.83 | 15.13 | 217.50 | 0.4148 | 699.0 | 505.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -18.87 | 127.82 | 15.12 | 212.85 | 0.4568 | 684.0 | 569.8 | |
| 0.00 | 4.05 | 0.00 | 2.26 | -19.06 | 127.61 | 14.91 | 212.26 | 0.4575 | 705.0 | 636.5 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -14.67 | 127.01 | 14.30 | 217.30 | 0.3960 | 963.0 | 764.0 | |
| 1.55 | 382.92 | 0.83 | 204.68 | -15.67 | 124.70 | 11.99 | 211.17 | 0.3883 | 660.2 | 401.0 | |
| 59.32 | -8.00 | 31.72 | -8.00 | -15.26 | 124.14 | 11.44 | 210.55 | 0.3779 | 1432.6 | 999999 | |
| 4.57 | 28.71 | 2.41 | 15.12 | -13.82 | 122.20 | 9.49 | 208.05 | 0.3422 | 1033.2 | 659.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.67 | 122.05 | 9.34 | 206.53 | 0.3533 | 865.0 | 690.2 | |
| 8.11 | -10.00 | 4.27 | -10.00 | -13.82 | 121.89 | 9.18 | 207.27 | 0.3398 | 1180.6 | 999999 | |
| 0.00 | 4.66 | 0.00 | 2.44 | -13.13 | 121.65 | 8.94 | 207.62 | 0.3279 | -843.0 | -665.6 | |
| 0.00 | 7.76 | 0.00 | 4.09 | -14.22 | 121.26 | 8.55 | 205.12 | 0.3410 | 819.0 | 683.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.53 | 120.99 | 8.28 | 204.04 | 0.3438 | 789.0 | 629.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -13.68 | 120.74 | 8.04 | 204.46 | 0.3295 | -707.0 | -572.5 | |
| 0.00 | 2.59 | 0.00 | 1.36 | -13.93 | 120.69 | 7.98 | 204.00 | 0.3329 | 660.0 | 448.9 | |
| 33.11 | 212.37 | 17.12 | 109.90 | -11.30 | 120.06 | 7.35 | 205.87 | 0.2888 | 1350.8 | 407.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.96 | 120.10 | 7.40 | 203.64 | 0.3143 | -897.0 | -729.3 | |
| 0.95 | -18.00 | 0.49 | -18.00 | -11.73 | 119.98 | 7.27 | 204.98 | 0.2947 | 949.8 | 999999 | |
| 1.21 | -18.00 | 0.62 | -18.00 | -11.39 | 119.69 | 6.99 | 204.62 | 0.2876 | 1085.9 | 999999 | |
| 1.81 | 2.07 | 0.95 | 1.09 | -14.39 | 119.69 | 6.98 | 200.76 | 0.3336 | -900.8 | -921.0 | |
| 1.47 | -18.00 | 0.76 | -18.00 | -11.29 | 119.57 | 6.86 | 204.37 | 0.2853 | 1049.8 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -9.06 | 119.46 | 6.75 | 207.73 | 0.2507 | 680.0 | 561.0 | |
| 1.12 | -18.00 | 0.58 | -18.00 | -11.11 | 119.35 | 6.64 | 203.95 | 0.2809 | 869.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -10.40 | 119.34 | 6.63 | 204.98 | 0.2700 | 773.0 | 539.4 | |
| 5.69 | -18.00 | 2.93 | -18.00 | -10.80 | 119.22 | 6.52 | 204.00 | 0.2753 | 1094.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -9.54 | 119.17 | 6.46 | 205.83 | 0.2558 | 798.0 | 611.2 | |
| 2.07 | 3.19 | 1.08 | 1.67 | -13.98 | 118.93 | 6.23 | 199.11 | 0.3229 | -954.8 | -818.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -8.08 | 118.75 | 6.04 | 207.03 | 0.2304 | 798.0 | 545.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.95 | 118.63 | 5.92 | 198.26 | 0.3208 | -734.0 | -611.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.48 | 118.37 | 5.66 | 197.98 | 0.3121 | -757.0 | -591.7 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -13.82 | 118.28 | 5.58 | 197.40 | 0.3170 | -819.0 | -634.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -5.87 | 118.06 | 5.35 | 209.14 | 0.1915 | 842.0 | 646.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -16.01 | 118.19 | 5.48 | 195.21 | 0.3513 | -760.0 | -556.0 | |
| 0.00 | 2.59 | 0.00 | 1.35 | -13.76 | 118.10 | 5.39 | 196.91 | 0.3151 | -941.0 | -876.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.48 | 117.92 | 5.22 | 194.93 | 0.3417 | -699.0 | -560.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.22 | 117.67 | 4.96 | 194.43 | 0.3366 | -757.0 | -517.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.19 | 117.41 | 4.70 | 195.35 | 0.3029 | -777.0 | -638.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.94 | 117.34 | 4.63 | 194.48 | 0.3146 | -863.0 | -698.9 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.19 | 117.31 | 4.60 | 194.20 | 0.3185 | -688.0 | -494.7 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -10.20 | 117.21 | 4.50 | 197.81 | 0.2538 | 1172.0 | 908.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -8.68 | 117.19 | 4.48 | 199.80 | 0.2292 | 875.0 | 655.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -8.86 | 117.10 | 4.39 | 199.17 | 0.2316 | 879.0 | 712.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.36 | 117.06 | 4.35 | 197.07 | 0.2555 | 1019.0 | 770.5 | |
| 4.14 | 26.99 | 2.16 | 14.06 | -14.06 | 117.00 | 4.29 | 193.38 | 0.3153 | -849.6 | -782.3 | |
| 0.00 | 2.85 | 0.00 | 1.45 | -10.02 | 116.94 | 4.23 | 197.00 | 0.2494 | 727.0 | 685.3 | |
| 13.62 | -46.00 | 7.09 | -46.00 | -13.75 | 116.75 | 4.04 | 192.85 | 0.3092 | -1091.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -15.28 | 116.62 | 3.92 | 191.44 | 0.3336 | -671.0 | -657.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -14.34 | 116.51 | 3.81 | 191.72 | 0.3180 | -1015.0 | -734.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.72 | 116.40 | 3.69 | 191.14 | 0.3237 | -873.0 | -643.6 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.53 | 116.30 | 3.59 | 190.97 | 0.3204 | -1050.0 | -724.5 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -13.75 | 116.23 | 3.52 | 191.24 | 0.3074 | -880.0 | -805.5 | |
| 0.00 | 2.93 | 0.00 | 1.54 | -14.93 | 116.19 | 3.48 | 190.39 | 0.3266 | -1021.0 | -880.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.25 | 116.07 | 3.36 | 189.87 | 0.3314 | -963.0 | -762.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.40 | 115.99 | 3.29 | 190.12 | 0.3174 | -1026.0 | -845.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.84 | 115.83 | 3.12 | 189.95 | 0.3077 | -917.0 | -647.0 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -16.19 | 115.84 | 3.13 | 188.75 | 0.3461 | -642.0 | -460.1 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -14.34 | 115.56 | 2.85 | 188.85 | 0.3151 | -921.0 | -737.0 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -15.53 | 115.18 | 2.47 | 187.18 | 0.3338 | -697.0 | -506.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -16.00 | 114.22 | 1.52 | 184.31 | 0.3399 | -895.0 | -768.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.03 | 114.01 | 1.30 | 183.70 | 0.3402 | -806.0 | -720.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.77 | 113.87 | 1.17 | 183.76 | 0.3027 | -864.0 | -730.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.28 | 113.76 | 1.06 | 182.96 | 0.3441 | -793.0 | -564.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.68 | 113.57 | 0.86 | 182.79 | 0.3008 | -913.0 | -657.8 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -14.05 | 113.42 | 0.71 | 182.25 | 0.3069 | -927.0 | -811.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.55 | 113.36 | 0.65 | 182.00 | 0.3152 | -816.0 | -609.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -8.21 | 113.28 | 0.57 | 182.74 | 0.2081 | 798.0 | 450.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -14.49 | 112.68 | -0.03 | 179.92 | 0.3140 | -709.0 | -527.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.60 | 111.68 | -1.03 | 176.20 | 0.2662 | -883.0 | -660.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.38 | 111.62 | -1.09 | 176.17 | 0.2792 | -957.0 | -753.1 | |
| 0.00 | 4.22 | 0.00 | 2.17 | -11.97 | 111.59 | -1.12 | 175.96 | 0.2725 | -715.0 | -767.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.52 | 110.93 | -1.77 | 174.53 | 0.3159 | -1050.0 | -843.1 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -15.24 | 110.68 | -2.03 | 174.01 | 0.3283 | -1005.0 | -795.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -13.15 | 110.64 | -2.07 | 173.09 | 0.2937 | -961.0 | -750.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.38 | 107.36 | -5.34 | 162.87 | 0.3090 | -1038.0 | -873.1 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -14.41 | 106.91 | -5.80 | 162.53 | 0.3275 | -834.0 | -694.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -15.58 | 106.60 | -6.11 | 162.75 | 0.3473 | -820.0 | -645.3 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -14.27 | 105.93 | -6.78 | 159.64 | 0.3305 | -666.0 | -633.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
