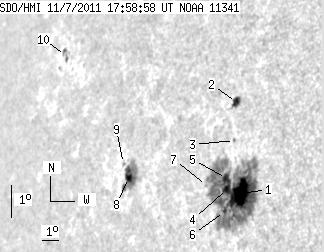

SDO HMI 2011-11-07 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.68 | 290.40 | 42.83 | 264.63 | 9.48 | 55.61 | -57.10 | 81.10 | 0.8393 | -580.9 | -231.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.33 | 245.74 | 23.98 | 217.63 | 9.29 | 56.94 | -55.77 | 81.29 | 0.8276 | -952.4 | -217.5 | |
| 4.66 | 6.55 | 4.20 | 5.91 | 11.98 | 56.01 | -56.69 | 78.11 | 0.8376 | 454.7 | 175.6 | |
| 0.00 | 1.12 | 0.00 | 1.00 | 10.84 | 56.25 | -56.46 | 79.45 | 0.8348 | -166.0 | -211.1 | |
| 4.91 | -1.00 | 4.39 | -1.00 | 9.40 | 56.26 | -56.45 | 81.18 | 0.8342 | -371.5 | 999999 | |
| 5.35 | -1.00 | 4.79 | -1.00 | 9.69 | 56.13 | -56.58 | 80.83 | 0.8355 | -386.2 | 999999 | |
| 1.72 | -1.00 | 1.54 | -1.00 | 8.71 | 56.26 | -56.45 | 82.01 | 0.8340 | -244.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.03 | 9.43 | 55.08 | -57.63 | 81.19 | 0.8452 | 261.0 | 226.4 | |
| 3.71 | 30.18 | 3.93 | 31.82 | 9.40 | 50.35 | -62.36 | 81.33 | 0.8860 | -684.8 | -477.2 | |
| 0.00 | 1.29 | 0.00 | 1.39 | 9.80 | 49.89 | -62.82 | 80.89 | 0.8897 | -291.0 | -216.7 | |
| 0.00 | 4.40 | 0.00 | 5.85 | 12.74 | 44.28 | -68.43 | 77.76 | 0.9298 | 472.0 | 283.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
