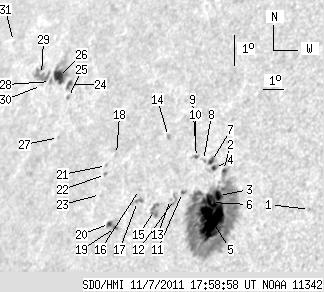

SDO HMI 2011-11-07 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.33 | 381.54 | 57.17 | 299.36 | 17.25 | 62.75 | -49.96 | 70.70 | 0.7752 | -335.3 | -181.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.84 | 16.87 | 68.99 | -43.71 | 69.70 | 0.7075 | -655.0 | -533.0 | |
| 1.55 | 277.81 | 1.17 | 208.74 | 17.88 | 64.81 | -47.90 | 69.43 | 0.7565 | -658.8 | -332.0 | |
| 4.22 | -2.00 | 3.18 | -2.00 | 17.12 | 64.85 | -47.86 | 70.42 | 0.7545 | -782.2 | 999999 | |
| 1.72 | 5.09 | 1.31 | 3.87 | 17.93 | 64.37 | -48.34 | 69.48 | 0.7613 | -616.3 | -314.8 | |
| 39.40 | -2.00 | 29.59 | -2.00 | 16.38 | 64.77 | -47.94 | 71.41 | 0.7539 | -1067.0 | 999999 | |
| 4.22 | -2.00 | 3.19 | -2.00 | 16.89 | 64.60 | -48.11 | 70.78 | 0.7567 | -671.2 | 999999 | |
| 2.50 | 4.31 | 1.91 | 3.30 | 18.13 | 64.15 | -48.55 | 69.27 | 0.7640 | -504.8 | -343.1 | |
| 0.00 | 1.72 | 0.00 | 1.33 | 18.14 | 63.77 | -48.94 | 69.34 | 0.7681 | -469.0 | -384.3 | |
| 1.12 | 2.41 | 0.87 | 1.88 | 18.22 | 63.40 | -49.30 | 69.33 | 0.7721 | -403.8 | -246.9 | |
| 0.00 | 1.38 | 0.00 | 1.08 | 18.61 | 63.20 | -49.51 | 68.87 | 0.7750 | 752.0 | 589.6 | |
| 1.29 | 2.16 | 1.00 | 1.67 | 17.13 | 63.14 | -49.57 | 70.78 | 0.7727 | -339.6 | -262.7 | |
| 0.00 | 4.74 | 0.00 | 3.70 | 16.90 | 62.83 | -49.87 | 71.14 | 0.7754 | -518.0 | -331.1 | |
| 0.00 | 0.95 | 0.00 | 0.74 | 16.89 | 62.64 | -50.06 | 71.19 | 0.7774 | -121.0 | -164.8 | |
| 0.00 | 2.59 | 0.00 | 2.08 | 18.79 | 61.80 | -50.91 | 68.96 | 0.7896 | 755.0 | 620.4 | |
| 0.00 | 7.93 | 0.00 | 6.29 | 16.52 | 62.00 | -50.71 | 71.78 | 0.7835 | -720.0 | -462.0 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 17.12 | 61.02 | -51.68 | 71.21 | 0.7944 | 268.0 | 238.4 | |
| 0.00 | 4.22 | 0.00 | 3.42 | 16.75 | 61.07 | -51.64 | 71.66 | 0.7934 | -244.0 | -294.4 | |
| 0.00 | 1.21 | 0.00 | 1.02 | 18.12 | 59.42 | -53.28 | 70.26 | 0.8117 | 286.0 | 317.8 | |
| 1.21 | 6.90 | 0.99 | 5.70 | 15.91 | 60.27 | -52.44 | 72.83 | 0.8001 | 684.3 | 543.5 | |
| 2.16 | -19.00 | 1.79 | -19.00 | 16.02 | 59.92 | -52.79 | 72.76 | 0.8037 | 625.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.95 | 17.76 | 59.05 | -53.65 | 70.76 | 0.8147 | 508.0 | 448.6 | |
| 0.00 | 1.64 | 0.00 | 1.39 | 17.48 | 59.12 | -53.59 | 71.09 | 0.8136 | 466.0 | 494.4 | |
| 0.00 | 0.86 | 0.00 | 0.73 | 16.87 | 59.12 | -53.59 | 71.84 | 0.8128 | 575.0 | 513.4 | |
| 3.71 | 4.66 | 3.44 | 4.32 | 20.11 | 55.83 | -56.88 | 68.50 | 0.8474 | 598.9 | 434.4 | |
| 0.00 | 1.81 | 0.00 | 1.67 | 19.71 | 55.99 | -56.72 | 68.94 | 0.8454 | 580.0 | 468.9 | |
| 9.23 | 26.21 | 8.73 | 24.78 | 20.32 | 55.06 | -57.65 | 68.38 | 0.8542 | 728.1 | 432.2 | |
| 0.00 | 0.78 | 0.00 | 0.71 | 18.47 | 56.07 | -56.63 | 70.39 | 0.8431 | 490.0 | 437.9 | |
| 0.00 | 1.98 | 0.00 | 1.89 | 20.15 | 54.68 | -58.03 | 68.65 | 0.8572 | 499.0 | 434.2 | |
| 0.00 | 15.18 | 0.00 | 14.77 | 20.33 | 54.02 | -58.68 | 68.53 | 0.8629 | 531.0 | 396.5 | |
| 0.00 | 1.03 | 0.00 | 1.00 | 20.00 | 54.23 | -58.48 | 68.89 | 0.8608 | 360.0 | 255.9 | |
| 0.00 | 0.69 | 0.00 | 0.72 | 21.24 | 51.64 | -61.07 | 67.84 | 0.8828 | 334.0 | 269.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
