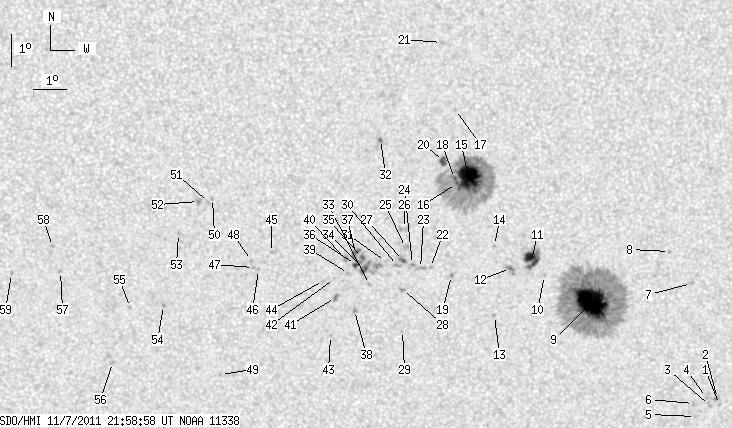

SDO HMI 2011-11-07 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.10 | 708.33 | 65.79 | 376.22 | -13.86 | 121.74 | 11.24 | 211.67 | 0.3587 | 449.7 | 277.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.73 | -18.55 | 128.49 | 18.00 | 217.92 | 0.4786 | 668.0 | 544.3 | |
| 0.00 | 3.10 | 0.00 | 1.75 | -18.36 | 128.41 | 17.91 | 218.05 | 0.4755 | 781.0 | 735.2 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -18.58 | 128.17 | 17.67 | 217.39 | 0.4758 | 610.0 | 516.2 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -18.32 | 128.04 | 17.54 | 217.55 | 0.4715 | 880.0 | 770.8 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -18.92 | 127.74 | 17.25 | 216.27 | 0.4760 | 762.0 | 638.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -18.50 | 127.63 | 17.14 | 216.66 | 0.4699 | 830.0 | 608.6 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -14.70 | 127.22 | 16.72 | 221.63 | 0.4208 | 926.0 | 704.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -13.68 | 126.44 | 15.95 | 221.99 | 0.4007 | -862.0 | -673.3 | |
| 55.71 | 353.23 | 30.03 | 190.39 | -15.24 | 124.07 | 13.58 | 215.04 | 0.3962 | 1374.8 | 420.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -14.37 | 122.54 | 12.04 | 213.19 | 0.3709 | -699.0 | -503.1 | |
| 14.14 | 23.97 | 7.51 | 12.72 | -13.86 | 122.11 | 11.61 | 213.02 | 0.3602 | 1031.6 | 739.2 | |
| 1.47 | 6.21 | 0.78 | 3.29 | -14.13 | 121.47 | 10.97 | 211.14 | 0.3584 | 872.3 | 697.0 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -15.60 | 121.04 | 10.54 | 208.12 | 0.3755 | 795.0 | 627.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.41 | 120.93 | 10.44 | 210.99 | 0.3438 | -655.0 | -503.4 | |
| 32.17 | 207.06 | 16.73 | 107.79 | -11.27 | 120.05 | 9.55 | 212.28 | 0.3061 | 1322.0 | 403.7 | |
| 0.78 | -15.00 | 0.40 | -15.00 | -11.48 | 119.69 | 9.19 | 210.92 | 0.3060 | 1047.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -9.21 | 119.59 | 9.09 | 214.98 | 0.2733 | 566.0 | 472.4 | |
| 1.38 | -15.00 | 0.72 | -15.00 | -11.33 | 119.62 | 9.12 | 211.01 | 0.3032 | 1061.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.33 | 119.64 | 9.14 | 206.48 | 0.3467 | -913.0 | -800.7 | |
| 4.92 | 5.43 | 2.55 | 2.81 | -10.80 | 119.27 | 8.77 | 210.94 | 0.2927 | 1083.2 | 880.5 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -7.18 | 119.12 | 8.62 | 218.32 | 0.2410 | 879.0 | 626.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -14.07 | 118.98 | 8.48 | 205.14 | 0.3382 | -744.0 | -518.4 | |
| 0.00 | 4.05 | 0.00 | 2.13 | -14.10 | 118.67 | 8.17 | 204.30 | 0.3365 | -903.0 | -697.1 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -13.98 | 118.42 | 7.92 | 203.79 | 0.3329 | -928.0 | -736.4 | |
| 0.00 | 2.41 | 0.00 | 1.26 | -13.44 | 118.18 | 7.69 | 203.84 | 0.3234 | -875.0 | -773.3 | |
| 0.00 | 5.52 | 0.00 | 2.88 | -12.85 | 118.13 | 7.64 | 204.48 | 0.3141 | -598.0 | -432.9 | |
| 1.55 | 3.02 | 0.81 | 1.58 | -13.85 | 118.14 | 7.64 | 203.19 | 0.3292 | -952.9 | -970.4 | |
| 0.00 | 2.59 | 0.00 | 1.36 | -14.75 | 118.14 | 7.64 | 202.12 | 0.3429 | 846.0 | 663.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -16.04 | 118.18 | 7.69 | 200.85 | 0.3627 | -698.0 | -595.0 | |
| 0.00 | 2.67 | 0.00 | 1.40 | -14.00 | 117.96 | 7.46 | 202.52 | 0.3303 | -825.0 | -657.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.88 | 117.58 | 7.08 | 201.64 | 0.3261 | -737.0 | -595.5 | |
| 1.38 | 1.72 | 0.71 | 0.89 | -10.11 | 117.33 | 6.83 | 206.16 | 0.2669 | 917.7 | 862.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -14.59 | 117.11 | 6.61 | 199.56 | 0.3343 | -335.0 | -251.4 | |
| 3.36 | 31.74 | 1.76 | 16.60 | -14.12 | 116.94 | 6.44 | 199.59 | 0.3261 | -875.7 | -790.8 | |
| 1.29 | -34.00 | 0.68 | -34.00 | -13.74 | 116.87 | 6.37 | 199.79 | 0.3199 | -1064.6 | 999999 | |
| 1.55 | -34.00 | 0.81 | -34.00 | -13.96 | 116.66 | 6.16 | 198.96 | 0.3221 | -987.8 | 999999 | |
| 4.40 | -34.00 | 2.30 | -34.00 | -13.59 | 116.65 | 6.15 | 199.33 | 0.3162 | -1024.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -15.40 | 116.67 | 6.17 | 197.58 | 0.3447 | -795.0 | -658.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.24 | 116.45 | 5.95 | 198.08 | 0.3254 | -773.0 | -546.1 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -13.77 | 116.35 | 5.85 | 198.25 | 0.3175 | -1113.0 | -898.7 | |
| 0.00 | 3.28 | 0.00 | 1.72 | -14.99 | 116.07 | 5.57 | 196.32 | 0.3353 | -1017.0 | -871.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.39 | 116.02 | 5.53 | 196.72 | 0.3257 | -927.0 | -630.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -16.18 | 115.95 | 5.45 | 195.02 | 0.3537 | -599.0 | -472.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.45 | 115.69 | 5.19 | 195.70 | 0.3251 | -721.0 | -557.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -13.57 | 114.07 | 3.58 | 191.54 | 0.3045 | -852.0 | -609.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -14.10 | 113.68 | 3.19 | 190.00 | 0.3120 | -915.0 | -788.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.04 | 113.53 | 3.03 | 189.56 | 0.3105 | -964.0 | -749.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.82 | 113.47 | 2.97 | 189.48 | 0.3067 | -902.0 | -698.9 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -17.41 | 112.55 | 2.06 | 185.43 | 0.3635 | -823.0 | -657.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.89 | 112.26 | 1.76 | 186.38 | 0.2720 | -945.0 | -813.7 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -12.02 | 112.14 | 1.64 | 185.90 | 0.2738 | -866.0 | -644.2 | |
| 0.00 | 3.62 | 0.00 | 1.86 | -11.99 | 111.83 | 1.34 | 184.82 | 0.2728 | -1002.0 | -827.2 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -12.98 | 111.23 | 0.73 | 182.49 | 0.2888 | -839.0 | -557.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -15.22 | 110.78 | 0.28 | 180.83 | 0.3260 | -995.0 | -797.8 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -15.28 | 109.76 | -0.74 | 177.82 | 0.3273 | -819.0 | -611.6 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -17.02 | 109.19 | -1.30 | 176.49 | 0.3563 | -707.0 | -552.8 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -14.16 | 107.62 | -2.88 | 170.99 | 0.3121 | -896.0 | -641.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.38 | 107.38 | -3.11 | 169.81 | 0.3000 | -1080.0 | -862.6 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -14.23 | 106.11 | -4.38 | 166.48 | 0.3181 | -782.0 | -608.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
