group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	483.88	2925.08	250.75	1516.65	19.11	104.44	-6.05	359.33	0.2926	-301.1	-115.3

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-07 21:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

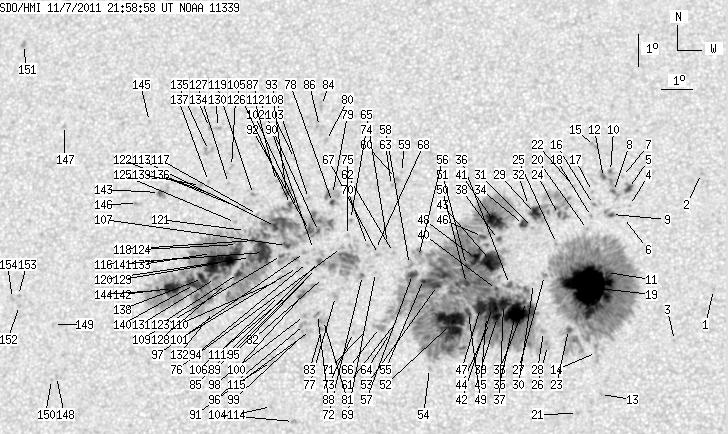

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.21	0.00	0.62	18.78	113.32	2.83	349.82	0.2653	-836.0	-674.5
2	0.00	0.95	0.00	0.50	22.38	113.00	2.51	352.80	0.3241	-760.0	-584.2
3	0.00	0.86	0.00	0.44	17.22	112.08	1.59	353.54	0.2361	-855.0	-643.0
4	0.00	0.78	0.00	0.40	21.38	110.69	0.19	359.41	0.3049	622.0	436.6
5	3.62	5.78	1.89	3.01	21.91	110.66	0.16	359.52	0.3137	1017.9	802.0
6	0.00	0.86	0.00	0.45	21.01	110.50	0.00	0.00	0.2986	-492.0	-416.4
7	0.00	0.95	0.00	0.50	22.29	110.47	-0.03	0.09	0.3200	682.0	498.2
8	1.29	15.09	0.67	7.87	21.82	110.18	-0.32	0.95	0.3122	516.3	-66.4
9	1.81	5.95	0.94	3.09	21.10	110.12	-0.38	1.19	0.3003	-805.0	-766.0
10	1.47	3.36	0.77	1.76	22.45	110.08	-0.42	1.20	0.3226	-702.9	-212.0
11	1.21	630.92	0.62	323.94	19.31	109.96	-0.53	1.87	0.2701	-1076.5	-475.7
12	1.29	-8.00	0.68	-8.00	22.26	109.86	-0.64	1.86	0.3196	-987.3	999999
13	0.00	1.12	0.00	0.57	15.58	109.79	-0.71	3.31	0.2068	-730.0	-679.6
14	0.00	7.33	0.00	3.73	16.85	109.66	-0.84	3.51	0.2288	-339.0	-640.8
15	0.00	2.33	0.00	1.22	23.23	109.56	-0.94	2.57	0.3359	-939.0	-776.4
16	0.00	1.72	0.00	0.90	21.41	109.54	-0.95	2.92	0.3058	-789.0	-606.0
17	0.00	1.38	0.00	0.72	21.82	109.51	-0.99	2.95	0.3126	-575.0	-365.7
18	0.00	1.29	0.00	0.67	21.04	109.48	-1.02	3.18	0.2996	-729.0	-576.0
19	120.73	-11.00	61.96	-11.00	18.84	109.43	-1.06	3.85	0.2628	-1603.2	999999
20	0.00	1.03	0.00	0.54	20.64	109.36	-1.14	3.66	0.2930	-544.0	-409.5
21	0.00	1.29	0.00	0.65	15.00	109.08	-1.41	6.93	0.1981	-831.0	-636.1
22	0.00	1.55	0.00	0.81	22.01	108.90	-1.60	4.71	0.3164	-811.0	-535.7
23	2.41	33.03	1.23	16.83	17.56	108.79	-1.71	6.79	0.2420	-1121.3	-594.4
24	1.81	37.77	0.94	19.66	21.10	108.43	-2.07	6.42	0.3021	-922.3	-290.5
25	0.00	1.47	0.00	0.76	20.20	108.38	-2.12	6.97	0.2872	-512.0	-395.6
26	0.00	4.05	0.00	2.07	17.07	108.14	-2.36	9.67	0.2354	-959.0	-778.0
27	0.00	2.33	0.00	1.20	19.21	108.01	-2.48	8.70	0.2716	-824.0	-677.7
28	0.00	2.76	0.00	1.41	17.49	108.01	-2.49	9.86	0.2429	-988.0	-842.5
29	9.66	30.96	5.02	16.09	21.13	107.70	-2.80	8.66	0.3042	-932.7	-522.7
30	0.00	1.03	0.00	0.53	18.96	107.67	-2.82	10.05	0.2684	-708.0	-476.8
31	0.00	1.12	0.00	0.58	20.69	107.61	-2.89	9.16	0.2972	-835.0	-693.2
32	0.00	1.29	0.00	0.67	21.38	107.47	-3.03	9.21	0.3089	-149.0	-221.3
33	0.43	1153.36	0.22	593.73	18.41	107.46	-3.03	11.20	0.2599	-738.8	-385.9
34	5.00	6.12	2.60	3.18	20.79	107.32	-3.18	10.00	0.2995	-866.2	-739.1
35	30.53	-33.00	15.63	-33.00	18.04	107.12	-3.37	12.73	0.2549	-1522.0	999999
36	3.19	-33.00	1.64	-33.00	18.93	106.92	-3.58	12.67	0.2703	-854.6	999999
37	8.54	-33.00	4.38	-33.00	18.32	106.74	-3.75	13.84	0.2609	-1248.6	999999
38	1.90	1.98	0.98	1.03	20.32	106.54	-3.96	12.76	0.2945	-993.5	-992.7
39	4.48	-33.00	2.30	-33.00	17.95	106.56	-3.93	14.86	0.2557	-1534.0	999999
40	1.21	-33.00	0.62	-33.00	18.77	106.51	-3.98	14.20	0.2694	-776.6	999999
41	17.77	-33.00	9.23	-33.00	20.88	106.40	-4.10	12.75	0.3041	-1135.3	999999
42	7.85	-33.00	4.03	-33.00	18.22	106.40	-4.10	15.15	0.2608	-1323.4	999999
43	23.03	-33.00	11.89	-33.00	19.64	106.33	-4.16	13.99	0.2842	-1189.0	999999
44	0.69	-33.00	0.35	-33.00	17.76	106.32	-4.18	15.95	0.2537	-1165.2	999999
45	0.95	-33.00	0.49	-33.00	17.94	106.22	-4.28	16.09	0.2572	-1155.0	999999
46	2.67	-33.00	1.39	-33.00	20.41	106.03	-4.47	14.26	0.2979	-883.3	999999
47	10.18	-33.00	5.22	-33.00	18.22	106.02	-4.47	16.46	0.2626	-1134.1	999999
48	6.90	-33.00	3.57	-33.00	19.73	105.83	-4.67	15.52	0.2878	-1102.2	999999
49	3.62	-33.00	1.86	-33.00	18.06	105.65	-4.84	17.93	0.2619	-1190.3	999999
50	2.85	-33.00	1.47	-33.00	18.95	105.56	-4.93	17.18	0.2766	-725.5	999999
51	1.38	-33.00	0.71	-33.00	19.51	105.55	-4.95	16.62	0.2856	-758.1	999999
52	50.28	-33.00	25.77	-33.00	17.69	105.10	-5.40	20.33	0.2591	-1262.0	999999
53	2.41	-33.00	1.25	-33.00	18.89	104.65	-5.84	20.19	0.2805	-558.8	999999
54	0.00	2.07	0.00	1.06	16.35	104.49	-6.01	24.64	0.2421	-862.0	-646.3
55	0.78	-33.00	0.40	-33.00	19.07	104.20	-6.29	21.34	0.2860	1036.0	999999
56	0.00	12.50	0.00	6.49	19.78	104.02	-6.48	20.97	0.2981	730.0	631.1
57	5.43	-33.00	2.81	-33.00	19.22	103.85	-6.65	22.21	0.2905	934.6	999999
58	0.00	5.00	0.00	2.59	19.53	103.74	-6.76	22.11	0.2959	774.0	710.0
59	0.00	0.95	0.00	0.50	22.39	103.35	-7.15	19.73	0.3421	-770.0	-585.5
60	0.00	2.16	0.00	1.13	22.20	103.20	-7.30	20.32	0.3401	-842.0	-704.2
61	0.00	1.12	0.00	0.58	17.74	103.37	-7.12	25.93	0.2713	-728.0	-584.0
62	0.00	1.21	0.00	0.63	19.90	103.22	-7.28	23.11	0.3049	886.0	680.6
63	0.00	0.78	0.00	0.41	21.98	103.05	-7.45	20.95	0.3376	-758.0	-678.1
64	0.00	2.85	0.00	1.46	17.44	103.23	-7.27	26.92	0.2678	-687.0	-450.1
65	0.00	1.55	0.00	0.81	20.17	103.01	-7.48	23.30	0.3104	738.0	579.1
66	0.00	7.33	0.00	3.77	17.59	102.88	-7.62	27.75	0.2727	143.0	216.0
67	0.00	2.16	0.00	1.12	19.83	102.74	-7.75	24.53	0.3071	866.0	683.7
68	0.00	1.21	0.00	0.63	19.98	102.64	-7.86	24.59	0.3101	825.0	652.2
69	0.00	0.78	0.00	0.40	19.27	102.67	-7.82	25.55	0.2993	-820.0	-623.6
70	0.00	1.38	0.00	0.72	20.11	102.38	-8.12	25.13	0.3137	876.0	704.9
71	0.00	1.12	0.00	0.58	17.52	102.47	-8.03	29.09	0.2750	837.0	578.5
72	0.43	2.24	0.22	1.16	19.18	102.27	-8.23	26.84	0.3008	-824.8	-485.9
73	0.00	1.12	0.00	0.58	17.43	102.07	-8.43	30.47	0.2770	840.0	642.8
74	0.00	1.55	0.00	0.81	20.91	101.79	-8.71	25.52	0.3298	786.0	664.7
75	0.00	1.55	0.00	0.81	20.41	101.72	-8.78	26.41	0.3230	660.0	510.5
76	0.00	2.24	0.00	1.17	20.04	101.55	-8.95	27.41	0.3188	955.0	783.7
77	0.00	3.71	0.00	1.92	18.52	101.44	-9.05	30.20	0.2980	-48.0	41.4
78	2.41	4.31	1.27	2.27	21.43	101.18	-9.32	26.30	0.3418	844.4	494.4
79	0.00	10.78	0.00	5.69	21.68	101.16	-9.34	25.99	0.3456	320.0	388.6
80	0.00	2.67	0.00	1.43	23.37	100.85	-9.65	24.53	0.3723	799.0	601.2
81	0.00	5.69	0.00	2.95	17.78	101.10	-9.39	32.50	0.2905	320.0	401.6
82	0.00	1.38	0.00	0.72	19.10	101.03	-9.47	30.28	0.3096	742.0	589.7
83	0.00	2.41	0.00	1.25	17.51	101.05	-9.44	33.18	0.2872	914.0	804.9
84	0.00	3.45	0.00	1.85	24.48	100.60	-9.90	23.76	0.3900	845.0	630.9
85	2.24	68.13	1.17	35.51	19.60	100.87	-9.62	29.85	0.3179	1111.3	506.9
86	0.00	5.00	0.00	2.68	23.81	100.58	-9.91	24.57	0.3805	654.0	656.8
87	1.29	663.26	0.68	349.66	20.52	100.78	-9.71	28.58	0.3318	-924.1	436.7
88	0.00	2.76	0.00	1.43	17.97	100.90	-9.59	32.69	0.2948	879.0	756.9
89	0.00	1.29	0.00	0.67	19.38	100.79	-9.71	30.42	0.3155	843.0	663.0
90	0.00	1.12	0.00	0.59	19.97	100.66	-9.84	29.78	0.3249	695.0	595.8
91	0.00	1.47	0.00	0.76	17.47	100.71	-9.79	34.19	0.2899	881.0	724.9
92	4.31	-87.00	2.27	-87.00	20.55	100.49	-10.01	29.24	0.3345	-893.9	999999
93	0.00	1.81	0.00	0.96	21.55	100.39	-10.11	27.98	0.3494	811.0	618.6
94	0.00	1.21	0.00	0.63	19.56	100.49	-10.01	30.86	0.3206	936.0	726.6
95	0.00	1.38	0.00	0.72	19.10	100.52	-9.98	31.59	0.3139	979.0	804.7
96	0.00	5.52	0.00	2.86	17.66	100.51	-9.99	34.35	0.2942	845.0	762.8
97	0.00	2.41	0.00	1.26	19.87	100.38	-10.12	30.63	0.3259	955.0	717.8
98	0.00	1.29	0.00	0.67	17.93	100.49	-10.00	33.84	0.2981	1042.0	875.5
99	0.00	2.93	0.00	1.52	17.32	100.46	-10.03	35.15	0.2901	613.0	725.6
100	2.67	22.25	1.39	11.58	18.51	100.36	-10.13	33.05	0.3072	1111.8	704.4
101	0.00	0.95	0.00	0.50	19.40	100.18	-10.32	31.90	0.3211	914.0	754.9
102	0.00	1.90	0.00	1.00	21.26	100.05	-10.44	29.18	0.3480	1084.0	888.4
103	0.00	0.95	0.00	0.51	22.79	99.84	-10.66	27.47	0.3712	696.0	508.7
104	0.00	2.41	0.00	1.24	14.70	100.32	-10.18	41.74	0.2579	1036.0	807.5
105	2.50	-87.00	1.32	-87.00	21.35	99.82	-10.68	29.57	0.3511	1007.0	999999
106	0.00	1.72	0.00	0.90	18.54	99.92	-10.58	34.12	0.3117	795.0	693.3
107	2.85	-87.00	1.49	-87.00	20.08	99.78	-10.71	31.69	0.3338	1095.2	999999
108	2.07	5.78	1.10	3.06	21.73	99.66	-10.83	29.37	0.3576	1084.1	797.9
109	2.07	14.14	1.09	7.41	19.77	99.64	-10.85	32.55	0.3308	951.8	891.2
110	0.00	2.07	0.00	1.08	19.03	99.66	-10.84	33.83	0.3206	649.0	677.2
111	0.00	1.90	0.00	0.99	18.54	99.66	-10.83	34.75	0.3141	769.0	606.5
112	0.00	1.29	0.00	0.69	22.07	99.31	-11.19	29.64	0.3652	917.0	717.2
113	2.85	-87.00	1.50	-87.00	20.66	99.39	-11.11	31.64	0.3453	1182.3	999999
114	0.00	0.78	0.00	0.40	15.15	99.61	-10.89	42.45	0.2714	661.0	514.8
115	0.00	3.71	0.00	1.92	16.51	99.53	-10.97	39.32	0.2891	191.0	428.3
116	22.85	-87.00	12.02	-87.00	19.85	99.06	-11.44	33.75	0.3372	1227.7	999999
117	0.00	1.47	0.00	0.78	21.03	98.77	-11.72	32.40	0.3555	717.0	543.4
118	2.24	-87.00	1.18	-87.00	20.22	98.71	-11.79	33.89	0.3453	984.7	999999
119	0.00	2.33	0.00	1.24	21.65	98.59	-11.90	31.80	0.3655	938.0	757.4
120	3.97	-87.00	2.09	-87.00	19.69	98.65	-11.85	34.94	0.3389	1195.5	999999
121	0.00	0.78	0.00	0.41	20.53	98.43	-12.07	33.98	0.3520	694.0	615.0
122	0.00	1.21	0.00	0.64	21.18	98.31	-12.19	33.15	0.3617	761.0	689.7
123	3.45	-87.00	1.81	-87.00	19.20	98.30	-12.19	36.63	0.3358	1269.8	999999
124	0.69	-87.00	0.36	-87.00	20.09	98.20	-12.30	35.22	0.3483	806.9	999999
125	0.00	1.47	0.00	0.78	20.77	98.08	-12.42	34.30	0.3583	795.0	611.5
126	0.00	1.90	0.00	1.02	22.52	97.79	-12.70	32.10	0.3839	826.0	659.6
127	0.00	0.95	0.00	0.51	21.98	97.75	-12.75	33.02	0.3773	848.0	674.6
128	0.00	1.81	0.00	0.95	18.88	97.94	-12.56	38.02	0.3355	750.0	604.4
129	48.55	-87.00	25.61	-87.00	19.53	97.76	-12.74	37.17	0.3454	1242.0	999999
130	0.00	2.41	0.00	1.31	23.74	97.21	-13.29	31.45	0.4050	758.0	650.6
131	1.55	-87.00	0.82	-87.00	19.03	97.57	-12.92	38.51	0.3410	1264.6	999999
132	0.00	1.98	0.00	1.04	18.02	97.59	-12.91	40.51	0.3285	897.0	612.1
133	1.29	-87.00	0.68	-87.00	19.80	97.38	-13.11	37.45	0.3526	753.6	999999
134	0.00	1.72	0.00	0.93	23.73	96.94	-13.55	31.95	0.4072	725.0	574.7
135	0.00	5.78	0.00	3.12	23.01	96.99	-13.51	32.93	0.3973	514.0	681.7
136	0.00	1.64	0.00	0.88	21.66	97.12	-13.38	34.77	0.3787	844.0	657.0
137	0.00	1.03	0.00	0.55	22.04	97.08	-13.41	34.24	0.3839	851.0	669.8
138	5.26	-87.00	2.77	-87.00	19.03	97.16	-13.34	39.39	0.3453	1191.0	999999
139	0.00	1.55	0.00	0.83	21.91	96.83	-13.67	34.92	0.3845	889.0	690.6
140	11.99	-87.00	6.32	-87.00	18.84	96.91	-13.58	40.25	0.3456	1105.1	999999
141	0.00	1.03	0.00	0.55	19.66	96.52	-13.98	39.43	0.3597	-142.0	-124.2
142	15.18	-87.00	8.03	-87.00	18.70	96.21	-14.28	41.89	0.3515	1145.8	999999
143	2.33	8.71	1.25	4.69	21.67	95.50	-14.99	37.77	0.3943	831.4	742.7
144	1.47	-87.00	0.78	-87.00	18.63	95.73	-14.76	42.94	0.3560	776.2	999999
145	0.00	0.95	0.00	0.52	23.89	94.91	-15.59	35.29	0.4271	729.0	497.5
146	0.00	3.28	0.00	1.77	21.31	94.81	-15.68	39.58	0.3969	932.0	669.7
147	0.00	1.55	0.00	0.86	23.72	92.05	-18.45	40.02	0.4525	609.0	534.4
148	0.00	1.38	0.00	0.73	15.95	92.70	-17.79	53.81	0.3656	747.0	668.2
149	0.00	1.29	0.00	0.69	17.53	92.45	-18.05	50.69	0.3834	640.0	527.3
150	0.00	1.12	0.00	0.60	15.86	92.55	-17.95	54.25	0.3668	740.0	507.4
151	0.00	2.93	0.00	1.67	26.27	90.20	-20.29	38.78	0.4986	830.0	709.5
152	0.00	1.55	0.00	0.84	18.09	91.27	-19.23	51.19	0.4034	892.0	666.7
153	0.00	1.38	0.00	0.75	18.40	91.20	-19.29	50.67	0.4071	838.0	691.8
154	0.00	2.16	0.00	1.17	18.30	91.02	-19.48	51.11	0.4085	791.0	668.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
