SDO HMI 2011-11-07 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.60 | 449.83 | 91.77 | 337.18 | 17.13 | 62.85 | -47.65 | 70.34 | 0.7506 | -396.1 | -146.5 | |
|
previous
or next observation for the same group /

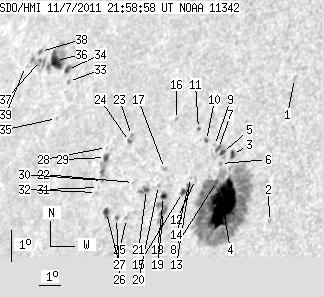

back to the solar disc SDO HMI 2011-11-07 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.47 | 20.40 | 66.76 | -43.73 | 64.87 | 0.7180 | -703.0 | -554.9 | |
| 0.00 | 1.81 | 0.00 | 1.26 | 15.99 | 67.07 | -43.43 | 70.84 | 0.7020 | -636.0 | -545.1 | |
| 2.76 | 3.45 | 2.00 | 2.50 | 17.95 | 64.86 | -45.64 | 68.75 | 0.7321 | -699.4 | -650.9 | |
| 75.55 | 305.80 | 54.37 | 220.05 | 16.42 | 64.90 | -45.60 | 70.81 | 0.7280 | -1001.8 | -285.9 | |
| 1.98 | 10.35 | 1.45 | 7.57 | 17.99 | 64.39 | -46.11 | 68.82 | 0.7374 | -688.7 | -513.7 | |
| 0.00 | 1.29 | 0.00 | 0.94 | 17.65 | 64.41 | -46.08 | 69.27 | 0.7363 | -514.0 | -400.1 | |
| 2.33 | -5.00 | 1.71 | -5.00 | 18.11 | 64.17 | -46.33 | 68.73 | 0.7400 | -433.7 | 999999 | |
| 0.60 | -4.00 | 0.44 | -4.00 | 17.10 | 64.42 | -46.08 | 70.01 | 0.7350 | -234.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 18.19 | 63.96 | -46.54 | 68.68 | 0.7426 | -151.0 | -162.4 | |
| 0.60 | 1.47 | 0.45 | 1.09 | 18.32 | 63.55 | -46.95 | 68.61 | 0.7474 | -414.4 | -273.6 | |
| 0.95 | 1.21 | 0.71 | 0.91 | 18.67 | 63.05 | -47.45 | 68.28 | 0.7535 | 515.8 | 398.7 | |
| 0.00 | 2.07 | 0.00 | 1.53 | 17.12 | 63.46 | -47.04 | 70.22 | 0.7456 | -274.0 | -215.2 | |
| 0.00 | 0.95 | 0.00 | 0.71 | 17.17 | 63.21 | -47.29 | 70.21 | 0.7484 | -337.0 | -299.3 | |
| 1.55 | 5.78 | 1.15 | 4.30 | 16.92 | 63.20 | -47.30 | 70.54 | 0.7480 | -479.5 | -466.7 | |
| 2.50 | -14.00 | 1.86 | -14.00 | 16.70 | 63.00 | -47.50 | 70.88 | 0.7497 | -466.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 18.90 | 61.93 | -48.57 | 68.27 | 0.7659 | 669.0 | 580.4 | |
| 0.00 | 2.67 | 0.00 | 2.04 | 17.38 | 61.92 | -48.57 | 70.23 | 0.7627 | -501.0 | -424.1 | |
| 2.07 | 20.01 | 1.57 | 15.11 | 16.54 | 62.17 | -48.33 | 71.28 | 0.7584 | -547.4 | -318.8 | |
| 3.45 | -18.00 | 2.60 | -18.00 | 16.08 | 62.32 | -48.18 | 71.84 | 0.7559 | -490.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 16.86 | 61.82 | -48.67 | 70.93 | 0.7627 | -371.0 | -188.0 | |
| 1.90 | 6.04 | 1.46 | 4.66 | 16.71 | 61.31 | -49.19 | 71.23 | 0.7680 | -418.1 | -222.4 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 16.89 | 60.62 | -49.88 | 71.14 | 0.7755 | -259.0 | -202.5 | |
| 0.00 | 1.55 | 0.00 | 1.23 | 18.31 | 59.98 | -50.52 | 69.47 | 0.7848 | 592.0 | 484.5 | |
| 0.60 | 1.90 | 0.48 | 1.51 | 18.12 | 59.95 | -50.55 | 69.71 | 0.7847 | 755.4 | 588.2 | |
| 0.00 | 1.29 | 0.00 | 1.01 | 15.79 | 60.66 | -49.83 | 72.54 | 0.7732 | 320.0 | 343.7 | |
| 0.00 | 1.12 | 0.00 | 0.88 | 15.77 | 60.19 | -50.31 | 72.65 | 0.7781 | 689.0 | 597.5 | |
| 3.97 | 5.09 | 3.15 | 4.04 | 15.92 | 59.65 | -50.85 | 72.55 | 0.7840 | 651.8 | 620.1 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 17.89 | 58.90 | -51.60 | 70.22 | 0.7948 | 390.0 | 335.3 | |
| 3.02 | 12.76 | 2.44 | 10.33 | 17.58 | 58.97 | -51.53 | 70.59 | 0.7936 | 546.3 | 506.1 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 16.88 | 59.10 | -51.40 | 71.44 | 0.7912 | 674.0 | 606.6 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 16.66 | 58.98 | -51.52 | 71.74 | 0.7920 | 369.0 | 388.7 | |
| 0.00 | 1.21 | 0.00 | 0.97 | 16.50 | 58.94 | -51.56 | 71.94 | 0.7922 | 679.0 | 431.9 | |
| 0.00 | 1.98 | 0.00 | 1.73 | 19.80 | 56.03 | -54.47 | 68.44 | 0.8255 | 547.0 | 413.0 | |
| 3.45 | 5.52 | 3.03 | 4.84 | 20.16 | 55.79 | -54.71 | 68.05 | 0.8283 | 611.5 | 422.0 | |
| 0.00 | 0.78 | 0.00 | 0.68 | 18.64 | 55.95 | -54.55 | 69.85 | 0.8244 | 494.0 | 423.9 | |
| 11.47 | 32.86 | 10.28 | 29.43 | 20.40 | 54.99 | -55.50 | 67.92 | 0.8358 | 726.7 | 446.4 | |
| 1.21 | 9.92 | 1.11 | 9.10 | 20.36 | 54.16 | -56.33 | 68.11 | 0.8431 | 558.3 | 434.2 | |
| 1.64 | 2.07 | 1.51 | 1.90 | 20.63 | 54.01 | -56.49 | 67.82 | 0.8448 | 370.8 | 399.0 | |
| 0.00 | 0.52 | 0.00 | 0.48 | 20.13 | 53.42 | -57.08 | 68.51 | 0.8492 | 192.0 | 191.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
