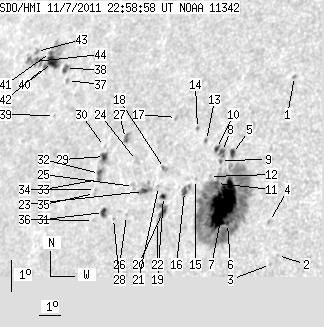

SDO HMI 2011-11-07 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.05 | 447.17 | 88.27 | 332.60 | 17.12 | 62.75 | -47.19 | 70.24 | 0.7455 | -361.3 | -144.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-07 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.21 | 20.45 | 66.76 | -43.18 | 64.60 | 0.7122 | -696.0 | -571.2 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 14.97 | 67.66 | -42.28 | 71.97 | 0.6858 | -724.0 | -572.8 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 14.69 | 67.44 | -42.51 | 72.44 | 0.6879 | -557.0 | -452.7 | |
| 0.00 | 1.98 | 0.00 | 1.36 | 15.98 | 67.07 | -42.88 | 70.69 | 0.6955 | -657.0 | -498.5 | |
| 3.36 | 3.88 | 2.41 | 2.78 | 17.98 | 64.87 | -45.07 | 68.56 | 0.7258 | -680.6 | -591.7 | |
| 0.95 | 295.57 | 0.67 | 210.60 | 15.84 | 65.30 | -44.64 | 71.35 | 0.7158 | -1059.2 | -309.4 | |
| 67.01 | -6.00 | 47.74 | -6.00 | 16.41 | 64.96 | -44.98 | 70.66 | 0.7210 | -1048.7 | 999999 | |
| 2.33 | 7.85 | 1.68 | 5.69 | 18.02 | 64.42 | -45.53 | 68.63 | 0.7311 | -724.8 | -539.4 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 17.74 | 64.42 | -45.53 | 69.00 | 0.7303 | -546.0 | -334.7 | |
| 2.33 | -8.00 | 1.69 | -8.00 | 18.10 | 64.12 | -45.83 | 68.61 | 0.7345 | -409.9 | 999999 | |
| 1.03 | -6.00 | 0.75 | -6.00 | 17.03 | 64.47 | -45.48 | 69.94 | 0.7281 | -201.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 17.23 | 64.09 | -45.86 | 69.77 | 0.7328 | 35.0 | -8.0 | |
| 0.00 | 1.47 | 0.00 | 1.08 | 18.32 | 63.59 | -46.36 | 68.45 | 0.7409 | -430.0 | -374.2 | |
| 0.00 | 1.12 | 0.00 | 0.83 | 18.67 | 63.05 | -46.89 | 68.14 | 0.7476 | 621.0 | 516.2 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 17.11 | 63.50 | -46.45 | 70.08 | 0.7391 | -507.0 | -390.4 | |
| 1.98 | 6.73 | 1.46 | 4.95 | 16.73 | 63.12 | -46.82 | 70.68 | 0.7424 | -569.6 | -433.4 | |
| 0.00 | 1.81 | 0.00 | 1.37 | 18.96 | 61.97 | -47.98 | 68.05 | 0.7599 | 670.0 | 549.3 | |
| 0.00 | 2.85 | 0.00 | 2.15 | 17.38 | 61.98 | -47.96 | 70.09 | 0.7562 | -533.0 | -438.4 | |
| 1.98 | 2.93 | 1.48 | 2.20 | 16.53 | 62.22 | -47.72 | 71.15 | 0.7519 | -475.8 | -278.5 | |
| 5.35 | 9.83 | 3.99 | 7.34 | 16.05 | 62.33 | -47.61 | 71.76 | 0.7497 | -572.7 | -452.0 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 16.82 | 61.89 | -48.05 | 70.84 | 0.7560 | -119.0 | -117.3 | |
| 0.00 | 1.29 | 0.00 | 0.97 | 15.76 | 62.19 | -47.75 | 72.16 | 0.7507 | -352.0 | -282.6 | |
| 3.19 | 11.47 | 2.43 | 8.74 | 16.64 | 61.25 | -48.69 | 71.21 | 0.7626 | -462.5 | 93.3 | |
| 0.00 | 3.02 | 0.00 | 2.34 | 17.56 | 60.59 | -49.36 | 70.17 | 0.7713 | 262.0 | 271.8 | |
| 0.00 | 2.93 | 0.00 | 2.26 | 16.77 | 60.73 | -49.21 | 71.16 | 0.7683 | 56.0 | -46.1 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 15.88 | 60.70 | -49.24 | 72.31 | 0.7670 | 518.0 | 482.6 | |
| 2.85 | 5.09 | 2.24 | 4.01 | 18.20 | 59.81 | -50.14 | 69.52 | 0.7806 | 632.2 | 484.4 | |
| 0.00 | 1.03 | 0.00 | 0.80 | 15.76 | 60.12 | -49.82 | 72.57 | 0.7730 | 771.0 | 626.7 | |
| 3.97 | 8.19 | 3.18 | 6.55 | 17.61 | 59.01 | -50.94 | 70.44 | 0.7877 | 517.5 | 293.3 | |
| 0.00 | 0.78 | 0.00 | 0.62 | 17.91 | 58.89 | -51.06 | 70.08 | 0.7895 | 461.0 | 341.6 | |
| 3.79 | 6.04 | 2.98 | 4.74 | 15.92 | 59.58 | -50.36 | 72.47 | 0.7789 | 612.1 | 621.7 | |
| 2.67 | 6.30 | 2.14 | 5.03 | 17.08 | 58.96 | -50.98 | 71.11 | 0.7873 | 740.6 | 591.6 | |
| 0.34 | -32.00 | 0.28 | -32.00 | 16.90 | 58.98 | -50.96 | 71.33 | 0.7867 | 818.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.48 | 16.59 | 58.95 | -51.00 | 71.73 | 0.7866 | 537.0 | 477.3 | |
| 0.00 | 1.03 | 0.00 | 0.83 | 16.47 | 58.95 | -51.00 | 71.88 | 0.7864 | 727.0 | 531.2 | |
| 0.00 | 1.03 | 0.00 | 0.82 | 15.65 | 59.19 | -50.76 | 72.87 | 0.7827 | -185.0 | -120.2 | |
| 0.00 | 1.64 | 0.00 | 1.41 | 19.83 | 56.11 | -53.83 | 68.28 | 0.8197 | 608.0 | 461.3 | |
| 3.71 | 4.31 | 3.22 | 3.74 | 20.19 | 55.82 | -54.12 | 67.90 | 0.8230 | 645.0 | 473.9 | |
| 0.00 | 0.78 | 0.00 | 0.67 | 18.73 | 55.95 | -54.00 | 69.64 | 0.8195 | 464.0 | 402.7 | |
| 8.28 | 32.17 | 7.32 | 28.44 | 20.33 | 55.03 | -54.91 | 67.88 | 0.8304 | 799.3 | 445.0 | |
| 1.12 | -40.00 | 1.00 | -40.00 | 20.63 | 54.76 | -55.19 | 67.57 | 0.8334 | 455.8 | 999999 | |
| 1.81 | -40.00 | 1.61 | -40.00 | 20.19 | 54.72 | -55.23 | 68.11 | 0.8330 | 517.6 | 999999 | |
| 0.00 | 2.67 | 0.00 | 2.43 | 20.63 | 53.97 | -55.97 | 67.73 | 0.8403 | 444.0 | 343.2 | |
| 0.00 | 13.02 | 0.00 | 11.80 | 20.31 | 54.03 | -55.91 | 68.09 | 0.8393 | 536.0 | 407.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
