SDO HMI 2011-11-08 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.55 | 703.71 | 67.04 | 375.74 | -13.83 | 121.66 | 12.82 | 215.32 | 0.3720 | 549.7 | 269.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

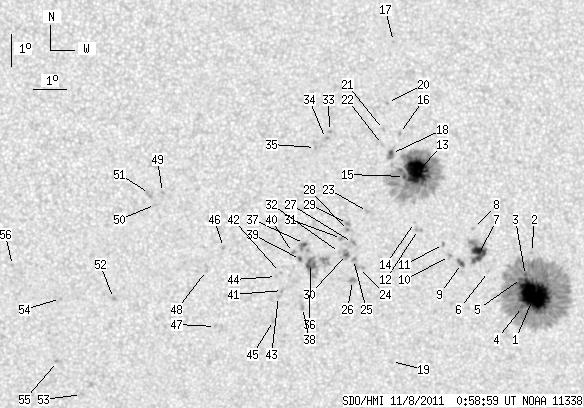

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.33 | 358.52 | 30.57 | 194.60 | -15.19 | 124.01 | 15.17 | 218.14 | 0.4106 | 1368.6 | 397.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -13.87 | 123.82 | 14.98 | 219.93 | 0.3926 | 867.0 | 691.2 | |
| 1.73 | -1.00 | 0.93 | -1.00 | -14.59 | 123.68 | 14.84 | 218.49 | 0.3999 | 1123.1 | 999999 | |
| 0.86 | -1.00 | 0.47 | -1.00 | -15.56 | 123.65 | 14.81 | 216.92 | 0.4117 | 792.3 | 999999 | |
| 1.04 | -1.00 | 0.56 | -1.00 | -14.68 | 123.56 | 14.72 | 218.11 | 0.3999 | 1219.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -14.45 | 122.50 | 13.66 | 216.44 | 0.3866 | -591.0 | -382.1 | |
| 15.10 | 28.81 | 8.06 | 15.38 | -13.91 | 122.15 | 13.31 | 216.61 | 0.3763 | 1008.3 | 516.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -13.10 | 121.95 | 13.11 | 217.55 | 0.3640 | -795.0 | -649.2 | |
| 3.28 | 3.80 | 1.75 | 2.03 | -14.18 | 121.63 | 12.79 | 215.09 | 0.3750 | 909.5 | 726.0 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -13.96 | 121.24 | 12.40 | 214.63 | 0.3684 | 842.0 | 761.5 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.58 | 121.04 | 12.19 | 214.78 | 0.3615 | -625.0 | -477.8 | |
| 0.00 | 3.28 | 0.00 | 1.73 | -13.10 | 120.23 | 11.39 | 213.75 | 0.3477 | -457.0 | -461.1 | |
| 34.25 | 187.80 | 17.91 | 98.27 | -11.31 | 120.12 | 11.28 | 216.66 | 0.3227 | 1252.3 | 438.4 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -12.89 | 120.10 | 11.26 | 213.80 | 0.3435 | 416.0 | 251.0 | |
| 1.04 | -13.00 | 0.54 | -13.00 | -11.46 | 119.73 | 10.89 | 215.41 | 0.3209 | 1061.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.14 | 119.53 | 10.68 | 217.47 | 0.3013 | 646.0 | 534.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -7.34 | 119.26 | 10.42 | 223.30 | 0.2627 | 784.0 | 616.4 | |
| 1.90 | 6.04 | 0.99 | 3.14 | -10.75 | 119.30 | 10.46 | 215.67 | 0.3072 | 1057.6 | 909.0 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -17.24 | 119.61 | 10.76 | 206.59 | 0.4002 | 463.0 | 433.5 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -9.19 | 119.13 | 10.29 | 218.45 | 0.2847 | 877.0 | 756.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.01 | 119.03 | 10.19 | 216.43 | 0.2946 | 659.0 | 462.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.47 | 119.02 | 10.17 | 215.47 | 0.3006 | 916.0 | 677.5 | |
| 0.00 | 2.33 | 0.00 | 1.22 | -12.53 | 118.63 | 9.78 | 210.78 | 0.3256 | 748.0 | 608.4 | |
| 0.00 | 4.40 | 0.00 | 2.32 | -14.27 | 118.45 | 9.61 | 207.75 | 0.3490 | -797.0 | -628.7 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -14.01 | 118.25 | 9.41 | 207.61 | 0.3439 | -933.0 | -728.1 | |
| 0.00 | 4.14 | 0.00 | 2.19 | -14.67 | 118.25 | 9.41 | 206.71 | 0.3534 | 998.0 | 838.4 | |
| 0.00 | 2.93 | 0.00 | 1.54 | -13.48 | 118.20 | 9.36 | 208.23 | 0.3358 | -894.0 | -748.8 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -13.11 | 118.06 | 9.22 | 208.42 | 0.3293 | -912.0 | -735.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -12.89 | 118.02 | 9.18 | 208.65 | 0.3259 | -995.0 | -795.2 | |
| 1.73 | 6.47 | 0.91 | 3.41 | -13.86 | 118.03 | 9.19 | 207.27 | 0.3399 | -1011.0 | -813.4 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -13.36 | 117.86 | 9.01 | 207.53 | 0.3313 | -968.0 | -818.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.79 | 117.81 | 8.97 | 206.80 | 0.3373 | -974.0 | -786.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -10.05 | 117.38 | 8.54 | 211.67 | 0.2797 | 978.0 | 841.2 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -10.27 | 117.27 | 8.42 | 210.92 | 0.2818 | 789.0 | 689.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -10.54 | 116.97 | 8.12 | 209.53 | 0.2832 | 898.0 | 750.5 | |
| 5.78 | 36.58 | 3.04 | 19.22 | -14.12 | 116.93 | 8.08 | 204.06 | 0.3360 | -899.5 | -628.0 | |
| 1.04 | -36.00 | 0.54 | -36.00 | -13.50 | 116.72 | 7.88 | 204.30 | 0.3252 | -1059.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -15.50 | 116.73 | 7.89 | 201.94 | 0.3554 | -616.0 | -600.2 | |
| 1.47 | 2.07 | 0.77 | 1.09 | -14.00 | 116.61 | 7.77 | 203.38 | 0.3320 | -955.4 | -731.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -13.78 | 116.36 | 7.52 | 202.97 | 0.3270 | -1032.0 | -869.1 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -14.96 | 116.09 | 7.25 | 200.88 | 0.3434 | -986.0 | -777.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.40 | 116.01 | 7.17 | 201.29 | 0.3343 | -833.0 | -682.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.15 | 115.97 | 7.13 | 200.37 | 0.3456 | -813.0 | -601.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.52 | 115.89 | 7.05 | 200.82 | 0.3355 | -679.0 | -530.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -15.90 | 115.84 | 7.00 | 199.28 | 0.3565 | -592.0 | -516.1 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -13.60 | 114.23 | 5.39 | 197.07 | 0.3122 | -890.0 | -734.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -16.08 | 114.05 | 5.20 | 194.45 | 0.3507 | -829.0 | -634.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.32 | 113.72 | 4.88 | 194.94 | 0.3213 | -596.0 | -580.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.89 | 112.34 | 3.49 | 192.52 | 0.2764 | -1019.0 | -798.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -12.26 | 112.13 | 3.29 | 191.52 | 0.2818 | -620.0 | -486.4 | |
| 0.00 | 4.49 | 0.00 | 2.31 | -11.92 | 111.94 | 3.10 | 191.12 | 0.2755 | -775.0 | -763.1 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -15.18 | 110.88 | 2.03 | 186.04 | 0.3268 | -934.0 | -754.0 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -18.23 | 109.91 | 1.07 | 182.71 | 0.3754 | -718.0 | -591.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -15.18 | 109.25 | 0.40 | 181.20 | 0.3251 | -855.0 | -678.6 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -17.17 | 109.16 | 0.31 | 180.84 | 0.3579 | -791.0 | -542.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.15 | 107.77 | -1.07 | 176.62 | 0.3084 | -855.0 | -627.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
