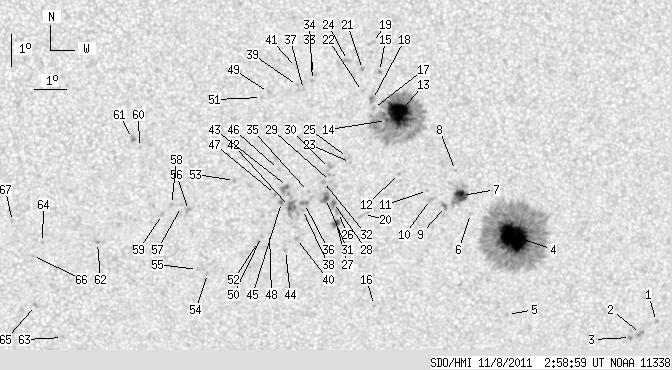

SDO HMI 2011-11-08 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.35 | 703.78 | 58.11 | 377.73 | -13.83 | 121.74 | 13.99 | 217.77 | 0.3828 | 480.1 | 296.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.04 | -17.96 | 128.93 | 21.19 | 223.31 | 0.5032 | 877.0 | 687.0 | |
| 0.00 | 2.85 | 0.00 | 1.63 | -18.33 | 128.44 | 20.70 | 222.13 | 0.5022 | 854.0 | 723.8 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -18.45 | 128.12 | 20.38 | 221.53 | 0.5003 | 865.0 | 752.8 | |
| 50.90 | 355.64 | 27.77 | 194.04 | -15.16 | 123.97 | 16.22 | 220.07 | 0.4206 | 1423.4 | 416.7 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -17.63 | 123.98 | 16.24 | 216.44 | 0.4506 | 679.0 | 559.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -14.42 | 122.54 | 14.79 | 218.71 | 0.3972 | -605.0 | -365.3 | |
| 9.92 | 27.26 | 5.33 | 14.62 | -13.85 | 122.22 | 14.47 | 219.04 | 0.3869 | 1077.8 | 573.3 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -13.07 | 121.98 | 14.24 | 219.92 | 0.3749 | -659.0 | -533.5 | |
| 1.12 | 3.97 | 0.60 | 2.13 | -14.18 | 121.73 | 13.99 | 217.54 | 0.3863 | 1020.5 | 742.5 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -13.96 | 121.25 | 13.50 | 216.94 | 0.3786 | 903.0 | 740.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.68 | 121.13 | 13.39 | 217.18 | 0.3740 | -378.0 | -299.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.13 | 120.23 | 12.48 | 216.18 | 0.3582 | -633.0 | -460.8 | |
| 33.04 | 188.09 | 17.35 | 98.84 | -11.28 | 120.11 | 12.36 | 219.28 | 0.3331 | 1317.2 | 416.9 | |
| 1.21 | -13.00 | 0.63 | -13.00 | -11.49 | 119.74 | 12.00 | 218.05 | 0.3321 | 1033.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -9.98 | 119.47 | 11.72 | 220.42 | 0.3100 | 870.0 | 755.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -17.27 | 119.68 | 11.94 | 209.01 | 0.4092 | 704.0 | 512.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -11.12 | 119.33 | 11.58 | 217.78 | 0.3230 | 983.0 | 770.0 | |
| 0.00 | 4.06 | 0.00 | 2.12 | -10.84 | 119.28 | 11.54 | 218.23 | 0.3190 | 1152.0 | 955.1 | |
| 0.00 | 2.85 | 0.00 | 1.48 | -9.10 | 119.22 | 11.48 | 221.78 | 0.2962 | 771.0 | 633.0 | |
| 0.00 | 3.54 | 0.00 | 1.88 | -14.40 | 119.17 | 11.42 | 211.83 | 0.3654 | -466.0 | -401.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.92 | 118.94 | 11.20 | 219.28 | 0.3035 | 943.0 | 720.3 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -10.59 | 118.97 | 11.22 | 217.95 | 0.3125 | 942.0 | 772.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.77 | 118.68 | 10.94 | 213.27 | 0.3389 | 685.0 | 524.9 | |
| 0.00 | 2.59 | 0.00 | 1.34 | -9.64 | 118.47 | 10.73 | 218.68 | 0.2950 | -851.0 | -596.2 | |
| 0.00 | 2.42 | 0.00 | 1.27 | -12.62 | 118.58 | 10.84 | 213.29 | 0.3359 | 514.0 | 616.7 | |
| 0.00 | 3.45 | 0.00 | 1.83 | -14.32 | 118.38 | 10.64 | 210.14 | 0.3578 | -533.0 | -510.1 | |
| 3.62 | 5.09 | 1.92 | 2.70 | -14.67 | 118.34 | 10.59 | 209.55 | 0.3622 | 985.5 | 760.1 | |
| 0.43 | 3.88 | 0.23 | 2.05 | -14.01 | 118.21 | 10.47 | 210.20 | 0.3520 | -867.0 | -775.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -13.35 | 118.09 | 10.35 | 210.90 | 0.3418 | -793.0 | -576.7 | |
| 0.00 | 5.26 | 0.00 | 2.77 | -12.95 | 118.04 | 10.30 | 211.41 | 0.3357 | -797.0 | -662.6 | |
| 3.02 | 6.82 | 1.59 | 3.60 | -13.88 | 117.96 | 10.21 | 209.78 | 0.3481 | -996.7 | -853.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -13.35 | 117.87 | 10.13 | 210.37 | 0.3399 | -1001.0 | -870.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -10.05 | 117.44 | 9.70 | 215.05 | 0.2902 | 993.0 | 720.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.23 | 117.42 | 9.67 | 214.61 | 0.2925 | 909.0 | 742.4 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -13.66 | 117.42 | 9.68 | 208.79 | 0.3406 | -828.0 | -619.2 | |
| 0.00 | 3.45 | 0.00 | 1.82 | -14.03 | 117.31 | 9.57 | 207.99 | 0.3451 | -940.0 | -842.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -10.51 | 117.15 | 9.41 | 213.34 | 0.2937 | 851.0 | 588.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.22 | 117.26 | 9.51 | 207.60 | 0.3474 | -409.0 | -452.4 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -10.38 | 116.96 | 9.22 | 213.05 | 0.2903 | 851.0 | 701.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -15.12 | 117.11 | 9.37 | 206.04 | 0.3594 | -538.0 | -446.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -9.83 | 116.92 | 9.17 | 214.00 | 0.2822 | 834.0 | 578.0 | |
| 3.45 | 14.49 | 1.82 | 7.64 | -14.12 | 116.85 | 9.11 | 206.72 | 0.3429 | -970.6 | -698.8 | |
| 0.43 | 4.57 | 0.23 | 2.40 | -13.50 | 116.76 | 9.02 | 207.36 | 0.3331 | -1130.2 | -990.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -15.50 | 116.78 | 9.04 | 204.79 | 0.3626 | -757.0 | -618.6 | |
| 1.21 | 1.38 | 0.64 | 0.73 | -13.99 | 116.60 | 8.85 | 206.25 | 0.3392 | -1022.8 | -913.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.96 | 116.47 | 8.72 | 207.35 | 0.3231 | -701.0 | -565.6 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -13.74 | 116.40 | 8.66 | 206.08 | 0.3341 | -1095.0 | -822.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -14.96 | 116.26 | 8.52 | 204.17 | 0.3511 | -672.0 | -563.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -10.59 | 116.08 | 8.34 | 210.11 | 0.2855 | 876.0 | 702.2 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -15.05 | 116.02 | 8.27 | 203.44 | 0.3509 | -1036.0 | -746.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -10.74 | 115.87 | 8.13 | 209.22 | 0.2859 | 786.0 | 595.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.21 | 115.93 | 8.19 | 203.04 | 0.3526 | -905.0 | -764.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.29 | 115.12 | 7.38 | 203.21 | 0.3185 | -888.0 | -712.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -16.20 | 114.38 | 6.64 | 198.09 | 0.3589 | -833.0 | -644.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -16.07 | 114.06 | 6.32 | 197.40 | 0.3553 | -784.0 | -584.6 | |
| 0.00 | 3.11 | 0.00 | 1.63 | -14.22 | 113.73 | 5.99 | 198.23 | 0.3247 | -800.0 | -646.1 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -14.09 | 113.51 | 5.77 | 197.73 | 0.3216 | -614.0 | -713.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -14.03 | 113.20 | 5.46 | 196.90 | 0.3190 | -843.0 | -722.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.34 | 112.93 | 5.19 | 195.83 | 0.3227 | -778.0 | -650.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.25 | 112.19 | 4.44 | 195.43 | 0.2859 | -757.0 | -682.3 | |
| 0.00 | 3.02 | 0.00 | 1.56 | -11.97 | 111.97 | 4.23 | 194.97 | 0.2804 | -1010.0 | -838.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -15.20 | 110.95 | 3.21 | 189.47 | 0.3295 | -904.0 | -748.8 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.21 | 109.91 | 2.16 | 185.49 | 0.3762 | -792.0 | -650.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.20 | 109.26 | 1.51 | 184.50 | 0.3260 | -874.0 | -698.1 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -17.19 | 109.05 | 1.31 | 183.50 | 0.3585 | -832.0 | -632.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -15.61 | 108.95 | 1.21 | 183.51 | 0.3324 | -739.0 | -567.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.54 | 108.33 | 0.59 | 181.81 | 0.3143 | -870.0 | -575.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
