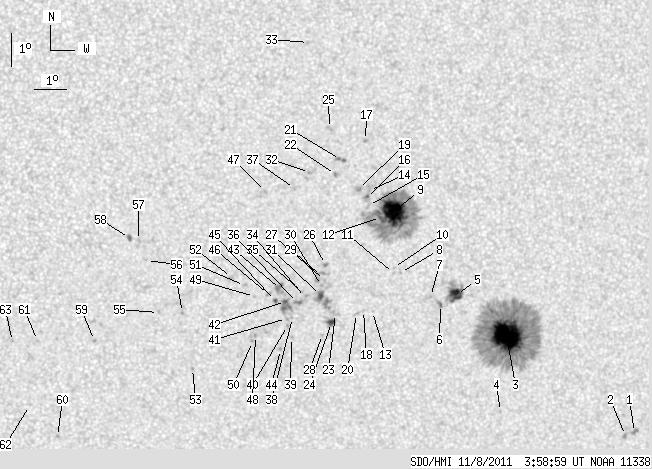

SDO HMI 2011-11-08 03:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.40 | 699.80 | 58.79 | 376.29 | -13.78 | 121.69 | 14.49 | 218.89 | 0.3870 | 474.1 | 280.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 03:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.97 | 0.00 | 2.28 | -18.35 | 128.47 | 21.27 | 222.88 | 0.5082 | 791.0 | 684.7 | |
| 0.00 | 2.67 | 0.00 | 1.53 | -18.44 | 128.18 | 20.98 | 222.37 | 0.5061 | 855.0 | 644.4 | |
| 50.47 | 349.68 | 27.61 | 191.28 | -15.18 | 123.93 | 16.74 | 220.93 | 0.4261 | 1427.2 | 420.4 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -17.58 | 123.95 | 16.76 | 217.36 | 0.4548 | 766.0 | 533.3 | |
| 11.39 | 25.37 | 6.13 | 13.64 | -13.87 | 122.24 | 15.04 | 220.10 | 0.3929 | 1026.5 | 646.3 | |
| 1.21 | 2.85 | 0.65 | 1.53 | -14.17 | 121.75 | 14.56 | 218.68 | 0.3917 | 961.5 | 837.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -13.91 | 121.42 | 14.23 | 218.46 | 0.3852 | 956.0 | 843.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -13.15 | 120.43 | 13.24 | 217.76 | 0.3657 | -734.0 | -570.7 | |
| 34.34 | 185.84 | 18.07 | 97.87 | -11.26 | 120.12 | 12.92 | 220.57 | 0.3388 | 1322.9 | 419.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -12.99 | 120.20 | 13.01 | 217.56 | 0.3614 | -466.0 | -450.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.18 | 120.21 | 13.02 | 217.26 | 0.3639 | -626.0 | -424.2 | |
| 0.52 | -9.00 | 0.27 | -9.00 | -11.44 | 119.72 | 12.53 | 219.35 | 0.3368 | 1010.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.36 | 119.62 | 12.43 | 214.09 | 0.3736 | -650.0 | -457.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -10.61 | 119.35 | 12.15 | 220.14 | 0.3223 | 837.0 | 622.1 | |
| 0.00 | 2.59 | 0.00 | 1.36 | -11.07 | 119.33 | 12.14 | 219.19 | 0.3280 | 782.0 | 602.3 | |
| 0.00 | 4.14 | 0.00 | 2.17 | -10.85 | 119.26 | 12.07 | 219.46 | 0.3245 | 1006.0 | 867.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -9.08 | 119.17 | 11.97 | 223.03 | 0.3015 | 939.0 | 792.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -14.32 | 119.34 | 12.14 | 213.53 | 0.3705 | -446.0 | -275.0 | |
| 0.00 | 2.67 | 0.00 | 1.40 | -10.54 | 119.00 | 11.81 | 219.47 | 0.3179 | 852.0 | 789.7 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -14.41 | 119.12 | 11.93 | 212.93 | 0.3698 | -207.0 | -274.0 | |
| 0.00 | 3.97 | 0.00 | 2.06 | -9.65 | 118.42 | 11.22 | 219.93 | 0.3003 | -816.0 | -727.4 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -10.11 | 118.28 | 11.08 | 218.61 | 0.3047 | 984.0 | 726.6 | |
| 0.00 | 3.19 | 0.00 | 1.70 | -14.40 | 118.46 | 11.27 | 211.48 | 0.3640 | -414.0 | -424.1 | |
| 3.71 | 7.51 | 1.97 | 3.99 | -14.68 | 118.35 | 11.16 | 210.82 | 0.3670 | 944.4 | 486.6 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -8.70 | 118.05 | 10.85 | 221.13 | 0.2843 | 666.0 | 603.7 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -12.87 | 118.08 | 10.88 | 212.98 | 0.3397 | -875.0 | -715.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -13.37 | 118.07 | 10.88 | 212.16 | 0.3464 | -832.0 | -588.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -15.05 | 118.09 | 10.90 | 209.70 | 0.3700 | -474.0 | -419.2 | |
| 0.00 | 7.94 | 0.00 | 4.18 | -13.24 | 117.97 | 10.78 | 212.12 | 0.3438 | -220.0 | -703.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.52 | 117.99 | 10.79 | 211.71 | 0.3478 | -921.0 | -772.5 | |
| 3.97 | 13.55 | 2.10 | 7.17 | -13.83 | 117.97 | 10.77 | 211.19 | 0.3520 | -1002.6 | -763.9 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -10.03 | 117.48 | 10.28 | 216.68 | 0.2956 | 1012.0 | 768.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -6.09 | 117.35 | 10.15 | 226.11 | 0.2443 | 745.0 | 466.7 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -13.89 | 117.50 | 10.31 | 210.01 | 0.3489 | -836.0 | -746.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.73 | 117.40 | 10.21 | 210.00 | 0.3458 | -832.0 | -671.0 | |
| 0.00 | 2.24 | 0.00 | 1.19 | -14.04 | 117.26 | 10.07 | 209.20 | 0.3491 | -908.0 | -779.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -10.52 | 117.03 | 9.84 | 214.52 | 0.2978 | 832.0 | 629.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.51 | 117.13 | 9.93 | 208.22 | 0.3547 | -538.0 | -439.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -15.14 | 117.13 | 9.93 | 207.37 | 0.3636 | -530.0 | -431.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.76 | 116.98 | 9.79 | 207.54 | 0.3571 | -529.0 | -352.3 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -14.54 | 116.94 | 9.75 | 207.73 | 0.3537 | -604.0 | -499.2 | |
| 1.90 | 10.61 | 1.00 | 5.60 | -14.01 | 116.89 | 9.69 | 208.34 | 0.3456 | -1021.9 | -763.3 | |
| 0.00 | 7.51 | 0.00 | 3.95 | -13.63 | 116.72 | 9.52 | 208.45 | 0.3389 | -917.0 | -934.9 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -15.51 | 116.80 | 9.60 | 206.13 | 0.3666 | -783.0 | -626.5 | |
| 1.29 | 1.98 | 0.68 | 1.05 | -13.97 | 116.58 | 9.38 | 207.62 | 0.3427 | -900.0 | -868.5 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -13.78 | 116.35 | 9.16 | 207.31 | 0.3383 | -856.0 | -758.2 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -10.60 | 116.15 | 8.95 | 211.89 | 0.2908 | 968.0 | 750.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.06 | 116.00 | 8.80 | 204.76 | 0.3545 | -1002.0 | -801.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.84 | 115.92 | 8.72 | 206.13 | 0.3359 | -868.0 | -718.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.25 | 115.91 | 8.72 | 204.32 | 0.3567 | -941.0 | -730.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -13.50 | 115.60 | 8.40 | 205.75 | 0.3285 | -846.0 | -720.5 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -13.24 | 115.19 | 7.99 | 204.99 | 0.3218 | -812.0 | -650.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.08 | 114.08 | 6.88 | 198.83 | 0.3583 | -831.0 | -616.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.32 | 113.71 | 6.52 | 199.61 | 0.3290 | -827.0 | -683.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.32 | 112.97 | 5.78 | 197.54 | 0.3250 | -764.0 | -653.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.70 | 112.57 | 5.37 | 197.96 | 0.2973 | -743.0 | -539.9 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -12.08 | 112.31 | 5.11 | 197.81 | 0.2862 | -778.0 | -659.9 | |
| 0.60 | 2.85 | 0.31 | 1.47 | -12.01 | 112.03 | 4.84 | 196.98 | 0.2838 | -1096.3 | -829.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.18 | 111.02 | 3.82 | 191.26 | 0.3309 | -859.0 | -746.7 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.22 | 109.92 | 2.73 | 186.91 | 0.3772 | -891.0 | -616.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.18 | 109.26 | 2.07 | 186.15 | 0.3264 | -662.0 | -589.3 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -17.23 | 109.04 | 1.84 | 184.91 | 0.3597 | -663.0 | -587.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.21 | 108.49 | 1.30 | 183.86 | 0.3258 | -735.0 | -597.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
