SDO HMI 2011-11-08 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.69 | 311.92 | 44.31 | 243.32 | 9.51 | 55.63 | -50.47 | 80.67 | 0.7723 | -692.8 | -297.2 | |
|
previous
or next observation for the same group /

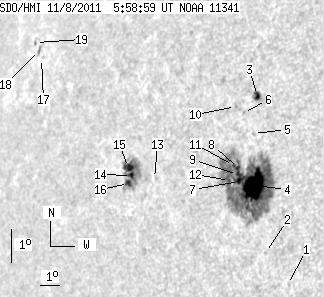

back to the solar disc SDO HMI 2011-11-08 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.38 | 6.47 | 58.90 | -47.20 | 84.56 | 0.7347 | -417.0 | -461.5 | |
| 0.00 | 1.04 | 0.00 | 0.77 | 7.38 | 57.79 | -48.31 | 83.37 | 0.7479 | -643.0 | -548.8 | |
| 3.62 | 5.95 | 2.78 | 4.56 | 12.03 | 56.51 | -49.60 | 77.32 | 0.7657 | 526.9 | 180.0 | |
| 35.46 | 255.40 | 26.85 | 194.60 | 9.34 | 56.91 | -49.19 | 80.81 | 0.7589 | -1056.0 | -295.2 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 10.89 | 56.59 | -49.51 | 78.81 | 0.7636 | -510.0 | -401.8 | |
| 0.00 | 0.95 | 0.00 | 0.73 | 11.49 | 55.98 | -50.12 | 78.08 | 0.7709 | -751.0 | -602.5 | |
| 1.64 | -4.00 | 1.26 | -4.00 | 9.43 | 56.24 | -49.86 | 80.74 | 0.7664 | -489.8 | 999999 | |
| 1.21 | -4.00 | 0.93 | -4.00 | 9.81 | 56.12 | -49.98 | 80.25 | 0.7680 | -499.1 | 999999 | |
| 1.64 | -4.00 | 1.26 | -4.00 | 9.63 | 56.11 | -49.99 | 80.49 | 0.7680 | -384.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 11.65 | 55.56 | -50.55 | 77.92 | 0.7757 | -575.0 | -438.8 | |
| 0.86 | -4.00 | 0.67 | -4.00 | 9.89 | 55.87 | -50.24 | 80.17 | 0.7708 | -246.9 | 999999 | |
| 0.95 | -4.00 | 0.74 | -4.00 | 9.44 | 55.77 | -50.33 | 80.77 | 0.7716 | -372.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.58 | 9.31 | 52.09 | -54.01 | 81.14 | 0.8103 | 387.0 | 367.0 | |
| 2.16 | 40.21 | 1.87 | 34.82 | 9.34 | 50.88 | -55.22 | 81.16 | 0.8224 | -941.0 | -460.9 | |
| 5.78 | -14.00 | 5.03 | -14.00 | 9.57 | 50.67 | -55.44 | 80.89 | 0.8246 | -612.0 | 999999 | |
| 3.37 | -14.00 | 2.92 | -14.00 | 9.09 | 50.78 | -55.32 | 81.46 | 0.8233 | -588.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.53 | 12.54 | 44.64 | -61.46 | 77.71 | 0.8797 | 420.0 | 459.3 | |
| 0.00 | 3.19 | 0.00 | 3.32 | 12.77 | 44.41 | -61.69 | 77.46 | 0.8816 | 482.0 | 382.1 | |
| 0.00 | 1.29 | 0.00 | 1.36 | 12.99 | 44.06 | -62.05 | 77.22 | 0.8845 | 129.0 | 113.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
