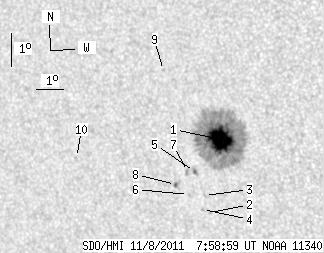

SDO HMI 2011-11-08 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.30 | 238.01 | 22.99 | 142.81 | -9.00 | 72.99 | -32.02 | 111.77 | 0.5663 | 801.8 | 344.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.37 | 224.14 | 21.19 | 134.31 | -8.93 | 73.07 | -31.94 | 111.71 | 0.5648 | 1222.8 | 367.4 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -11.18 | 72.46 | -32.55 | 114.98 | 0.5846 | -348.0 | -327.1 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -10.66 | 72.30 | -32.71 | 114.07 | 0.5838 | 431.0 | 344.2 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -11.09 | 72.18 | -32.83 | 114.68 | 0.5877 | -596.0 | -543.9 | |
| 1.38 | 2.67 | 0.84 | 1.63 | -9.94 | 72.03 | -32.98 | 112.74 | 0.5836 | 598.5 | 554.7 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -10.65 | 71.73 | -33.28 | 113.69 | 0.5912 | -572.0 | -546.3 | |
| 0.00 | 2.59 | 0.00 | 1.58 | -9.95 | 71.78 | -33.23 | 112.60 | 0.5870 | 510.0 | 389.0 | |
| 1.55 | 2.93 | 0.96 | 1.80 | -10.36 | 71.29 | -33.72 | 112.97 | 0.5953 | -752.9 | -454.4 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -6.90 | 71.21 | -33.80 | 107.33 | 0.5807 | -723.0 | -600.6 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -9.67 | 67.70 | -37.31 | 110.00 | 0.6382 | -349.0 | -288.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
