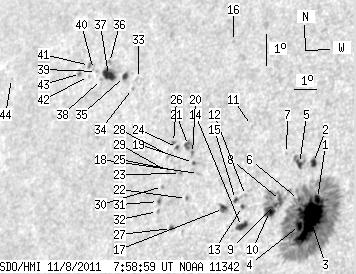

SDO HMI 2011-11-08 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.55 | 459.84 | 70.94 | 310.08 | 16.85 | 63.65 | -41.36 | 68.92 | 0.6789 | -331.8 | -244.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.28 | 320.34 | 2.15 | 210.37 | 16.95 | 65.39 | -39.62 | 68.18 | 0.6594 | -879.7 | -382.9 | |
| 3.71 | 4.40 | 2.46 | 2.92 | 18.04 | 64.94 | -40.07 | 66.76 | 0.6685 | -635.9 | -489.0 | |
| 44.35 | -1.00 | 29.12 | -1.00 | 16.31 | 65.27 | -39.74 | 69.18 | 0.6588 | -1114.4 | 999999 | |
| 3.88 | -1.00 | 2.56 | -1.00 | 16.11 | 64.87 | -40.14 | 69.61 | 0.6631 | -771.4 | 999999 | |
| 3.02 | 10.70 | 2.02 | 7.17 | 17.99 | 64.38 | -40.63 | 67.04 | 0.6750 | -722.4 | -499.4 | |
| 1.04 | -1.00 | 0.69 | -1.00 | 16.89 | 64.63 | -40.38 | 68.54 | 0.6684 | -227.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 18.27 | 63.76 | -41.25 | 66.86 | 0.6833 | -485.0 | -376.3 | |
| 3.36 | 39.77 | 2.26 | 26.78 | 16.83 | 63.91 | -41.10 | 68.87 | 0.6769 | -598.5 | -116.2 | |
| 1.12 | -8.00 | 0.75 | -8.00 | 16.70 | 63.73 | -41.28 | 69.11 | 0.6786 | -559.5 | 999999 | |
| 8.28 | -8.00 | 5.58 | -8.00 | 16.48 | 63.54 | -41.47 | 69.50 | 0.6803 | -543.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 19.07 | 62.03 | -42.98 | 66.36 | 0.7058 | 519.0 | 432.7 | |
| 0.00 | 1.38 | 0.00 | 0.95 | 16.93 | 62.42 | -42.59 | 69.21 | 0.6949 | -594.0 | -406.7 | |
| 0.78 | 1.64 | 0.53 | 1.12 | 16.59 | 62.39 | -42.62 | 69.70 | 0.6943 | -704.7 | -543.9 | |
| 6.56 | 7.59 | 4.48 | 5.19 | 15.98 | 62.51 | -42.50 | 70.52 | 0.6913 | -658.0 | -275.4 | |
| 1.47 | 3.80 | 1.01 | 2.62 | 16.79 | 62.03 | -42.98 | 69.52 | 0.6990 | -503.6 | -427.3 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 21.62 | 60.32 | -44.69 | 63.52 | 0.7328 | -374.0 | -299.6 | |
| 3.45 | 5.95 | 2.40 | 4.13 | 16.49 | 61.60 | -43.41 | 70.06 | 0.7033 | -553.1 | -430.0 | |
| 0.00 | 1.38 | 0.00 | 0.98 | 17.51 | 60.22 | -44.79 | 69.05 | 0.7218 | 245.0 | 218.5 | |
| 1.12 | 2.33 | 0.81 | 1.67 | 17.83 | 59.89 | -45.12 | 68.70 | 0.7263 | 677.5 | 326.1 | |
| 0.00 | 2.50 | 0.00 | 1.80 | 18.11 | 59.76 | -45.25 | 68.38 | 0.7285 | 756.0 | 613.3 | |
| 0.00 | 6.21 | 0.00 | 4.50 | 18.34 | 59.50 | -45.51 | 68.13 | 0.7320 | 905.0 | 736.6 | |
| 0.00 | 1.38 | 0.00 | 0.99 | 16.73 | 59.93 | -45.08 | 70.19 | 0.7232 | -411.0 | -295.9 | |
| 0.00 | 1.29 | 0.00 | 0.94 | 17.47 | 59.43 | -45.58 | 69.32 | 0.7306 | 767.0 | 653.5 | |
| 1.04 | 1.90 | 0.76 | 1.39 | 18.26 | 59.03 | -45.98 | 68.37 | 0.7369 | 568.9 | 529.0 | |
| 0.00 | 1.55 | 0.00 | 1.13 | 17.56 | 59.18 | -45.83 | 69.27 | 0.7336 | 748.0 | 577.7 | |
| 0.69 | 1.81 | 0.51 | 1.33 | 18.40 | 58.80 | -46.21 | 68.25 | 0.7398 | 464.2 | 407.0 | |
| 1.47 | 1.90 | 1.05 | 1.36 | 15.79 | 59.54 | -45.47 | 71.56 | 0.7254 | 717.6 | 652.4 | |
| 0.00 | 2.33 | 0.00 | 1.71 | 18.00 | 58.76 | -46.25 | 68.79 | 0.7393 | 563.0 | 480.4 | |
| 0.00 | 1.81 | 0.00 | 1.32 | 17.51 | 58.83 | -46.18 | 69.43 | 0.7373 | 483.0 | 367.6 | |
| 0.00 | 1.38 | 0.00 | 1.01 | 17.04 | 58.76 | -46.25 | 70.06 | 0.7370 | 761.0 | 599.1 | |
| 1.21 | 2.24 | 0.88 | 1.64 | 16.58 | 58.72 | -46.29 | 70.69 | 0.7364 | 643.9 | 497.4 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 16.28 | 58.77 | -46.24 | 71.09 | 0.7352 | 605.0 | 473.9 | |
| 0.00 | 0.60 | 0.00 | 0.47 | 20.29 | 56.44 | -48.57 | 66.44 | 0.7695 | 416.0 | 429.4 | |
| 0.00 | 1.21 | 0.00 | 0.93 | 19.97 | 56.29 | -48.72 | 66.89 | 0.7703 | 530.0 | 431.8 | |
| 2.76 | 3.71 | 2.16 | 2.90 | 20.32 | 55.75 | -49.26 | 66.59 | 0.7766 | 675.4 | 559.9 | |
| 0.00 | 2.33 | 0.00 | 1.86 | 20.72 | 54.83 | -50.18 | 66.33 | 0.7866 | 599.0 | 495.5 | |
| 8.45 | 11.91 | 6.72 | 9.46 | 20.31 | 54.97 | -50.04 | 66.79 | 0.7844 | 781.6 | 734.2 | |
| 0.00 | 1.55 | 0.00 | 1.24 | 20.18 | 54.68 | -50.33 | 67.04 | 0.7870 | 514.0 | 441.1 | |
| 0.00 | 1.04 | 0.00 | 0.83 | 20.41 | 54.32 | -50.69 | 66.83 | 0.7910 | 605.0 | 470.1 | |
| 0.00 | 1.90 | 0.00 | 1.54 | 20.46 | 54.15 | -50.86 | 66.81 | 0.7928 | 524.0 | 448.2 | |
| 1.73 | 2.07 | 1.40 | 1.68 | 20.58 | 53.89 | -51.12 | 66.73 | 0.7956 | 405.9 | 369.2 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 20.24 | 54.00 | -51.01 | 67.13 | 0.7938 | 448.0 | 420.1 | |
| 0.78 | 2.93 | 0.64 | 2.40 | 20.31 | 53.56 | -51.45 | 67.14 | 0.7983 | 410.3 | 396.9 | |
| 0.00 | 0.69 | 0.00 | 0.61 | 19.98 | 50.05 | -54.96 | 68.27 | 0.8305 | 422.0 | 327.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
