SDO HMI 2011-11-08 08:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.77 | 241.64 | 23.70 | 144.07 | -8.97 | 72.97 | -31.49 | 112.05 | 0.5589 | 858.2 | 324.6 | |
|
previous
or next observation for the same group /

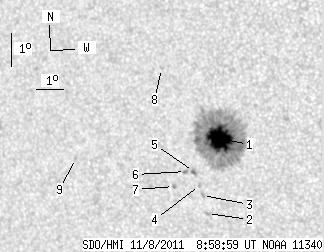

back to the solar disc SDO HMI 2011-11-08 08:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.99 | 228.86 | 23.23 | 136.30 | -8.91 | 73.05 | -31.41 | 112.00 | 0.5575 | 1180.4 | 346.6 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -11.22 | 72.37 | -32.09 | 115.36 | 0.5789 | -657.0 | -582.5 | |
| 0.00 | 1.64 | 0.00 | 0.99 | -10.68 | 72.26 | -32.21 | 114.41 | 0.5773 | 455.0 | 290.5 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -10.37 | 72.19 | -32.28 | 113.87 | 0.5766 | 519.0 | 502.3 | |
| 0.78 | 2.59 | 0.47 | 1.57 | -9.95 | 72.02 | -32.44 | 113.08 | 0.5766 | 558.4 | 511.8 | |
| 0.00 | 2.16 | 0.00 | 1.31 | -9.96 | 71.73 | -32.73 | 112.92 | 0.5804 | 655.0 | 477.4 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -10.44 | 71.24 | -33.22 | 113.38 | 0.5893 | -831.0 | -760.7 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -6.86 | 71.17 | -33.29 | 107.50 | 0.5736 | -675.0 | -546.7 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -9.71 | 67.72 | -36.75 | 110.33 | 0.6312 | -501.0 | -415.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
