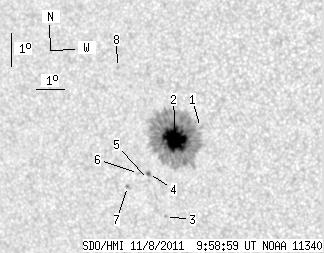

SDO HMI 2011-11-08 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.38 | 226.09 | 22.73 | 133.96 | -8.95 | 73.03 | -30.89 | 112.39 | 0.5507 | 860.9 | 337.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.01 | -8.53 | 73.98 | -29.94 | 112.29 | 0.5356 | 306.0 | 266.9 | |
| 37.78 | 216.93 | 22.37 | 128.47 | -8.93 | 73.07 | -30.85 | 112.38 | 0.5500 | 1158.8 | 360.5 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -11.30 | 72.46 | -31.46 | 115.90 | 0.5711 | -734.0 | -539.0 | |
| 0.60 | 1.64 | 0.36 | 0.99 | -10.00 | 72.01 | -31.91 | 113.49 | 0.5698 | 638.0 | 506.8 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -10.18 | 71.99 | -31.93 | 113.78 | 0.5711 | 199.0 | 178.7 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -10.01 | 71.65 | -32.27 | 113.28 | 0.5746 | 587.0 | 449.5 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -10.42 | 71.21 | -32.71 | 113.67 | 0.5825 | -808.0 | -686.2 | |
| 0.00 | 1.38 | 0.00 | 0.83 | -6.81 | 71.20 | -32.71 | 107.70 | 0.5655 | -744.0 | -577.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
