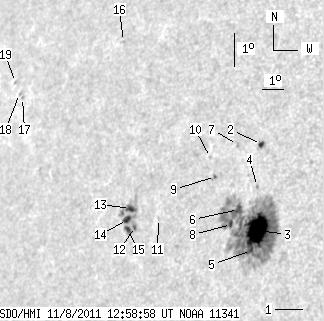

SDO HMI 2011-11-08 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.03 | 322.46 | 45.56 | 232.17 | 9.49 | 55.93 | -46.35 | 80.34 | 0.7257 | -647.5 | -286.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.52 | 7.05 | 59.36 | -42.91 | 83.53 | 0.6824 | -721.0 | -633.1 | |
| 2.33 | 3.54 | 1.66 | 2.52 | 11.88 | 56.63 | -45.65 | 76.95 | 0.7206 | 552.1 | 409.5 | |
| 39.66 | 272.45 | 27.97 | 193.09 | 9.31 | 56.95 | -45.33 | 80.49 | 0.7139 | -987.0 | -289.5 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 10.62 | 56.71 | -45.56 | 78.69 | 0.7181 | -513.0 | -432.0 | |
| 0.95 | -3.00 | 0.67 | -3.00 | 8.70 | 56.79 | -45.49 | 81.35 | 0.7154 | -691.5 | 999999 | |
| 5.09 | -3.00 | 3.65 | -3.00 | 9.90 | 56.02 | -46.26 | 79.77 | 0.7255 | -443.2 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.44 | 11.83 | 55.58 | -46.69 | 77.17 | 0.7328 | -709.0 | -546.5 | |
| 2.24 | -3.00 | 1.61 | -3.00 | 9.44 | 55.80 | -46.48 | 80.42 | 0.7278 | -312.8 | 999999 | |
| 1.29 | 2.50 | 0.95 | 1.84 | 10.83 | 54.82 | -47.46 | 78.62 | 0.7405 | -541.1 | -402.9 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 11.39 | 54.47 | -47.81 | 77.92 | 0.7451 | 192.0 | 228.0 | |
| 0.00 | 1.12 | 0.00 | 0.86 | 9.46 | 52.48 | -49.79 | 80.66 | 0.7658 | 556.0 | 453.8 | |
| 0.69 | 34.23 | 0.54 | 27.00 | 9.17 | 51.45 | -50.83 | 81.11 | 0.7769 | -609.6 | -435.8 | |
| 3.88 | -12.00 | 3.06 | -12.00 | 9.70 | 51.10 | -51.18 | 80.46 | 0.7810 | -701.5 | 999999 | |
| 3.88 | -12.00 | 3.07 | -12.00 | 9.36 | 51.03 | -51.25 | 80.89 | 0.7816 | -767.9 | 999999 | |
| 3.02 | -12.00 | 2.38 | -12.00 | 9.07 | 51.09 | -51.19 | 81.27 | 0.7808 | -623.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 14.66 | 49.37 | -52.91 | 74.38 | 0.8035 | 582.0 | 473.1 | |
| 0.00 | 0.95 | 0.00 | 0.88 | 12.72 | 44.60 | -57.68 | 77.24 | 0.8473 | 644.0 | 523.5 | |
| 0.00 | 1.12 | 0.00 | 1.04 | 12.83 | 44.38 | -57.89 | 77.12 | 0.8493 | 399.0 | 402.8 | |
| 0.00 | 0.60 | 0.00 | 0.57 | 13.14 | 44.03 | -58.24 | 76.78 | 0.8527 | 346.0 | 351.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
