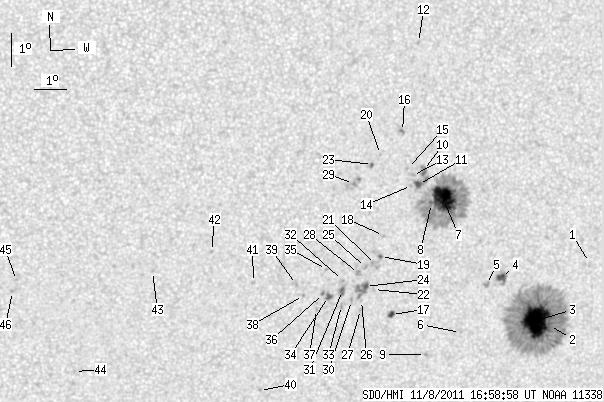

SDO HMI 2011-11-08 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.07 | 604.62 | 60.50 | 338.47 | -13.64 | 121.77 | 21.70 | 230.78 | 0.4651 | 647.4 | 291.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | -13.36 | 125.30 | 25.23 | 235.38 | 0.5059 | 491.0 | 446.8 | |
| 0.69 | 319.23 | 0.40 | 182.59 | -15.30 | 124.18 | 24.11 | 231.01 | 0.5089 | 739.4 | 389.7 | |
| 52.92 | -2.00 | 30.27 | -2.00 | -15.13 | 123.72 | 23.65 | 230.76 | 0.5020 | 1346.7 | 999999 | |
| 5.43 | 8.88 | 3.05 | 4.99 | -13.75 | 122.40 | 22.33 | 231.46 | 0.4738 | 1028.0 | 674.6 | |
| 0.00 | 3.02 | 0.00 | 1.69 | -13.96 | 121.93 | 21.86 | 230.52 | 0.4700 | 931.0 | 804.7 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -15.44 | 121.23 | 21.15 | 227.16 | 0.4763 | 670.0 | 567.5 | |
| 35.59 | 176.25 | 19.46 | 96.42 | -11.29 | 120.30 | 20.22 | 233.20 | 0.4251 | 1246.2 | 357.3 | |
| 0.86 | -7.00 | 0.47 | -7.00 | -11.41 | 119.92 | 19.84 | 232.47 | 0.4214 | 916.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -16.11 | 120.14 | 20.07 | 224.64 | 0.4712 | 736.0 | 577.0 | |
| 0.00 | 4.40 | 0.00 | 2.38 | -10.39 | 119.59 | 19.51 | 234.03 | 0.4078 | 609.0 | 854.7 | |
| 3.62 | 8.70 | 1.96 | 4.72 | -10.82 | 119.46 | 19.38 | 232.99 | 0.4100 | 1050.4 | 803.6 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -6.50 | 119.23 | 19.15 | 242.16 | 0.3702 | 832.0 | 601.6 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -10.54 | 119.25 | 19.17 | 233.25 | 0.4047 | 916.0 | 727.4 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -10.84 | 119.24 | 19.16 | 232.62 | 0.4074 | 785.0 | 622.2 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -10.32 | 119.07 | 19.00 | 233.45 | 0.4004 | 908.0 | 618.4 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -9.18 | 118.85 | 18.77 | 235.51 | 0.3871 | -970.0 | -840.3 | |
| 2.84 | 3.36 | 1.57 | 1.86 | -14.83 | 118.90 | 18.83 | 224.90 | 0.4439 | 859.1 | 637.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -12.36 | 118.45 | 18.37 | 228.52 | 0.4127 | 533.0 | 360.8 | |
| 1.21 | 1.72 | 0.66 | 0.94 | -13.01 | 118.40 | 18.32 | 227.26 | 0.4189 | -695.1 | -529.7 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -9.87 | 118.19 | 18.11 | 233.07 | 0.3848 | 774.0 | 588.8 | |
| 0.00 | 5.43 | 0.00 | 2.96 | -13.26 | 118.26 | 18.18 | 226.60 | 0.4198 | -565.0 | -589.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -14.03 | 118.25 | 18.18 | 225.24 | 0.4281 | -495.0 | -416.6 | |
| 1.03 | 2.24 | 0.55 | 1.20 | -10.17 | 117.95 | 17.88 | 232.08 | 0.3847 | 903.2 | 609.4 | |
| 2.24 | 13.53 | 1.22 | 7.39 | -13.93 | 117.99 | 17.91 | 224.99 | 0.4240 | -805.7 | -820.5 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -13.34 | 117.94 | 17.87 | 225.95 | 0.4171 | -858.0 | -709.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -14.37 | 117.90 | 17.82 | 224.11 | 0.4278 | -509.0 | -455.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -14.65 | 117.89 | 17.81 | 223.62 | 0.4308 | -473.0 | -170.5 | |
| 0.00 | 3.27 | 0.00 | 1.78 | -13.52 | 117.73 | 17.66 | 225.30 | 0.4167 | -926.0 | -843.8 | |
| 0.00 | 10.69 | 0.00 | 5.73 | -10.74 | 117.38 | 17.31 | 230.00 | 0.3832 | 989.0 | 736.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -14.36 | 117.57 | 17.50 | 223.60 | 0.4242 | -720.0 | -601.5 | |
| 0.00 | 4.48 | 0.00 | 2.44 | -14.04 | 117.26 | 17.18 | 223.63 | 0.4172 | -1069.0 | -917.4 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -13.73 | 117.23 | 17.16 | 224.13 | 0.4134 | -945.0 | -719.4 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -14.51 | 117.26 | 17.19 | 222.85 | 0.4225 | -626.0 | -439.4 | |
| 1.64 | 3.71 | 0.89 | 2.02 | -14.22 | 116.82 | 16.75 | 222.60 | 0.4145 | -927.8 | -824.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -13.38 | 116.70 | 16.62 | 223.84 | 0.4035 | -942.0 | -709.0 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -14.13 | 116.66 | 16.58 | 222.48 | 0.4116 | -1185.0 | -998.9 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -14.62 | 116.47 | 16.40 | 221.34 | 0.4153 | -702.0 | -629.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -14.18 | 116.02 | 15.95 | 221.30 | 0.4054 | -939.0 | -719.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -13.83 | 115.78 | 15.70 | 221.45 | 0.3987 | -903.0 | -762.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -17.14 | 114.84 | 14.77 | 214.65 | 0.4303 | -630.0 | -540.4 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -13.74 | 114.41 | 14.33 | 219.04 | 0.3834 | -763.0 | -614.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.76 | 113.03 | 12.96 | 217.95 | 0.3572 | -776.0 | -521.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.36 | 111.22 | 11.15 | 212.90 | 0.3479 | -751.0 | -557.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.46 | 108.94 | 8.86 | 203.33 | 0.3747 | -837.0 | -526.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.59 | 107.03 | 6.95 | 201.72 | 0.3194 | -672.0 | -567.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.93 | 106.92 | 6.84 | 201.00 | 0.3240 | -967.0 | -762.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
