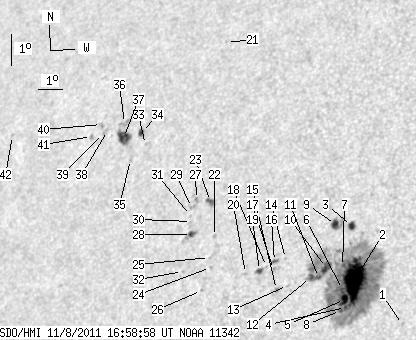

SDO HMI 2011-11-08 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.28 | 467.39 | 66.28 | 293.21 | 16.76 | 63.97 | -36.11 | 67.03 | 0.6139 | -433.8 | -312.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.67 | 15.04 | 67.51 | -32.56 | 68.22 | 0.5619 | -551.0 | -417.2 | |
| 50.68 | 384.04 | 31.14 | 236.52 | 16.35 | 65.49 | -34.59 | 67.02 | 0.5939 | -1219.9 | -397.1 | |
| 4.05 | 5.00 | 2.52 | 3.11 | 17.99 | 65.02 | -35.06 | 64.63 | 0.6069 | -790.4 | -531.5 | |
| 1.03 | -2.00 | 0.63 | -2.00 | 15.49 | 65.32 | -34.76 | 68.49 | 0.5928 | -946.9 | 999999 | |
| 5.17 | -2.00 | 3.18 | -2.00 | 15.73 | 65.23 | -34.84 | 68.14 | 0.5948 | -941.5 | 999999 | |
| 0.26 | -2.00 | 0.16 | -2.00 | 16.03 | 65.10 | -34.98 | 67.71 | 0.5977 | -505.0 | 999999 | |
| 0.26 | -2.00 | 0.16 | -2.00 | 16.73 | 64.95 | -35.12 | 66.66 | 0.6023 | -157.7 | 999999 | |
| 1.72 | -2.00 | 1.06 | -2.00 | 15.39 | 65.15 | -34.92 | 68.72 | 0.5946 | -722.3 | 999999 | |
| 4.83 | 9.65 | 3.02 | 6.04 | 18.00 | 64.40 | -35.67 | 64.92 | 0.6146 | -772.2 | -683.8 | |
| 7.07 | -2.00 | 4.41 | -2.00 | 16.67 | 64.36 | -35.72 | 67.01 | 0.6098 | -755.8 | 999999 | |
| 1.98 | -2.00 | 1.24 | -2.00 | 16.36 | 64.12 | -35.96 | 67.61 | 0.6116 | -683.4 | 999999 | |
| 2.76 | -2.00 | 1.73 | -2.00 | 16.35 | 63.81 | -36.26 | 67.76 | 0.6155 | -575.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 16.07 | 62.98 | -37.09 | 68.53 | 0.6250 | -562.0 | -385.9 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 16.89 | 62.72 | -37.35 | 67.38 | 0.6313 | -600.0 | -516.5 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 15.94 | 62.58 | -37.49 | 68.90 | 0.6296 | -918.0 | -725.9 | |
| 1.72 | 2.41 | 1.10 | 1.54 | 16.78 | 62.31 | -37.76 | 67.70 | 0.6360 | -558.4 | -356.5 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 16.54 | 62.33 | -37.74 | 68.07 | 0.6349 | -748.0 | -498.9 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 16.62 | 62.04 | -38.04 | 68.06 | 0.6388 | -417.0 | -317.8 | |
| 2.67 | 3.96 | 1.72 | 2.55 | 16.49 | 61.79 | -38.28 | 68.36 | 0.6414 | -621.6 | -435.8 | |
| 0.00 | 1.55 | 0.00 | 1.01 | 16.38 | 61.26 | -38.81 | 68.72 | 0.6477 | -742.0 | -518.4 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 23.45 | 58.28 | -41.79 | 59.92 | 0.7088 | -325.0 | -294.2 | |
| 0.00 | 1.47 | 0.00 | 0.97 | 17.45 | 59.74 | -40.34 | 67.69 | 0.6698 | 700.0 | 542.5 | |
| 3.53 | 4.74 | 2.38 | 3.19 | 18.51 | 59.28 | -40.80 | 66.33 | 0.6788 | 825.8 | 747.0 | |
| 0.00 | 1.47 | 0.00 | 0.97 | 16.50 | 59.82 | -40.25 | 69.04 | 0.6658 | -693.0 | -412.9 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 16.80 | 59.70 | -40.37 | 68.64 | 0.6681 | -499.0 | -416.0 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 15.79 | 59.63 | -40.44 | 70.15 | 0.6660 | 639.0 | 479.4 | |
| 0.00 | 1.98 | 0.00 | 1.35 | 18.55 | 58.68 | -41.39 | 66.50 | 0.6859 | 750.0 | 665.5 | |
| 3.02 | 5.08 | 2.03 | 3.43 | 17.47 | 58.78 | -41.29 | 67.99 | 0.6813 | 824.4 | 558.0 | |
| 0.00 | 2.41 | 0.00 | 1.64 | 18.30 | 58.55 | -41.53 | 66.90 | 0.6866 | 739.0 | 618.6 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 17.87 | 58.67 | -41.40 | 67.46 | 0.6838 | 557.0 | 497.7 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 18.05 | 58.58 | -41.50 | 67.24 | 0.6855 | 673.0 | 505.6 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 16.34 | 58.72 | -41.36 | 69.64 | 0.6787 | 750.0 | 563.7 | |
| 0.00 | 1.12 | 0.00 | 0.80 | 20.15 | 55.97 | -44.11 | 65.25 | 0.7218 | 555.0 | 437.7 | |
| 2.76 | 3.62 | 1.98 | 2.60 | 20.51 | 55.66 | -44.41 | 64.88 | 0.7263 | 664.2 | 527.8 | |
| 0.00 | 1.38 | 0.00 | 0.99 | 19.66 | 55.48 | -44.60 | 66.07 | 0.7257 | 509.0 | 438.0 | |
| 0.00 | 4.83 | 0.00 | 3.52 | 20.75 | 54.80 | -45.27 | 64.84 | 0.7363 | 609.0 | 520.6 | |
| 10.77 | 14.39 | 7.82 | 10.45 | 20.32 | 54.92 | -45.15 | 65.37 | 0.7337 | 777.0 | 540.0 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 20.50 | 54.13 | -45.95 | 65.38 | 0.7428 | 311.0 | 374.4 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 20.40 | 53.94 | -46.14 | 65.57 | 0.7445 | 548.0 | 535.1 | |
| 0.00 | 1.81 | 0.00 | 1.34 | 20.68 | 53.78 | -46.29 | 65.26 | 0.7470 | 576.0 | 483.0 | |
| 0.00 | 1.98 | 0.00 | 1.48 | 20.29 | 53.47 | -46.60 | 65.86 | 0.7491 | 647.0 | 471.2 | |
| 0.00 | 1.03 | 0.00 | 0.83 | 20.15 | 49.74 | -50.33 | 67.05 | 0.7870 | 288.0 | 384.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
