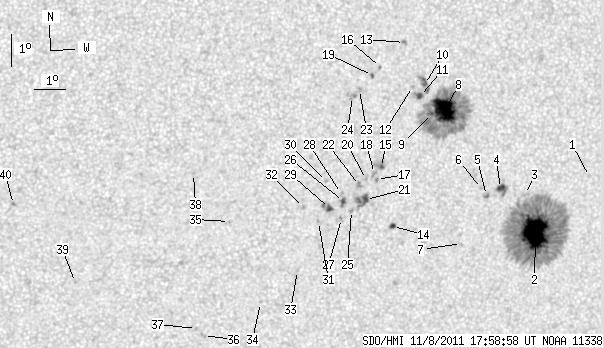

SDO HMI 2011-11-08 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.56 | 613.87 | 59.28 | 345.37 | -13.74 | 121.85 | 22.32 | 231.42 | 0.4737 | 645.9 | 295.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.89 | -13.44 | 125.33 | 25.81 | 235.85 | 0.5138 | 617.0 | 422.9 | |
| 50.50 | 332.75 | 29.01 | 191.13 | -15.14 | 123.71 | 24.18 | 231.35 | 0.5084 | 1331.3 | 385.1 | |
| 0.00 | 2.59 | 0.00 | 1.47 | -13.95 | 123.23 | 23.71 | 232.77 | 0.4922 | 129.0 | 154.8 | |
| 3.96 | 8.36 | 2.24 | 4.72 | -13.74 | 122.38 | 22.85 | 232.12 | 0.4800 | 1038.0 | 721.7 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -13.94 | 121.93 | 22.41 | 231.24 | 0.4765 | 825.0 | 792.3 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -13.72 | 121.75 | 22.22 | 231.39 | 0.4722 | 741.0 | 526.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -15.43 | 121.26 | 21.74 | 227.96 | 0.4828 | 667.0 | 508.1 | |
| 33.70 | 173.05 | 18.49 | 95.03 | -11.28 | 120.32 | 20.80 | 234.00 | 0.4323 | 1273.2 | 359.5 | |
| 1.03 | -8.00 | 0.57 | -8.00 | -11.36 | 119.91 | 20.38 | 233.30 | 0.4277 | 982.3 | 999999 | |
| 0.00 | 9.57 | 0.00 | 5.21 | -10.46 | 119.62 | 20.09 | 234.66 | 0.4159 | 1013.0 | 799.4 | |
| 3.02 | 6.89 | 1.64 | 3.75 | -10.83 | 119.48 | 19.96 | 233.76 | 0.4175 | 1057.3 | 722.6 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -10.52 | 119.23 | 19.71 | 234.04 | 0.4115 | 817.0 | 561.4 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -9.17 | 118.89 | 19.37 | 236.38 | 0.3950 | -986.0 | -792.7 | |
| 2.67 | 3.19 | 1.48 | 1.77 | -14.84 | 118.94 | 19.41 | 225.74 | 0.4505 | 844.3 | 646.7 | |
| 1.64 | 7.67 | 0.90 | 4.19 | -12.99 | 118.42 | 18.90 | 228.16 | 0.4254 | -573.4 | -322.4 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -9.91 | 118.17 | 18.65 | 233.78 | 0.3922 | 843.0 | 585.6 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -13.36 | 118.29 | 18.77 | 227.30 | 0.4277 | -723.0 | -632.0 | |
| 0.00 | 3.45 | 0.00 | 1.88 | -13.17 | 118.21 | 18.69 | 227.52 | 0.4248 | -683.0 | -561.1 | |
| 1.29 | 1.81 | 0.70 | 0.97 | -10.15 | 117.93 | 18.41 | 232.93 | 0.3913 | 901.1 | 859.0 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -13.36 | 117.96 | 18.44 | 226.83 | 0.4238 | -788.0 | -677.6 | |
| 2.93 | 11.98 | 1.61 | 6.57 | -13.98 | 117.98 | 18.46 | 225.77 | 0.4307 | -789.1 | -803.0 | |
| 0.00 | 3.45 | 0.00 | 1.88 | -13.54 | 117.75 | 18.23 | 226.18 | 0.4234 | -977.0 | -825.3 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -10.57 | 117.55 | 18.02 | 231.48 | 0.3904 | 850.0 | 745.2 | |
| 0.00 | 3.27 | 0.00 | 1.76 | -10.78 | 117.34 | 17.81 | 230.73 | 0.3899 | 970.0 | 856.5 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -14.31 | 117.56 | 18.04 | 224.55 | 0.4295 | -740.0 | -575.0 | |
| 1.55 | 3.79 | 0.85 | 2.07 | -14.03 | 117.28 | 17.76 | 224.59 | 0.4233 | -958.9 | -814.7 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -14.56 | 117.26 | 17.74 | 223.66 | 0.4289 | -552.0 | -378.3 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -13.77 | 117.19 | 17.67 | 224.89 | 0.4196 | -922.0 | -729.4 | |
| 3.27 | 6.64 | 1.79 | 3.62 | -14.23 | 116.85 | 17.32 | 223.53 | 0.4208 | -882.7 | -847.0 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -13.39 | 116.69 | 17.16 | 224.73 | 0.4097 | -895.0 | -667.0 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -14.63 | 116.52 | 17.00 | 222.34 | 0.4219 | -842.0 | -697.4 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -14.19 | 116.01 | 16.49 | 222.22 | 0.4112 | -881.0 | -601.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -16.16 | 115.98 | 16.45 | 219.00 | 0.4341 | -667.0 | -528.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -17.15 | 114.87 | 15.35 | 215.66 | 0.4357 | -646.0 | -461.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -14.58 | 113.69 | 14.16 | 217.33 | 0.3922 | -671.0 | -506.5 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -18.18 | 113.12 | 13.60 | 211.14 | 0.4337 | -683.0 | -577.8 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -17.95 | 112.88 | 13.35 | 210.98 | 0.4287 | -744.0 | -471.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -13.07 | 112.46 | 12.94 | 217.37 | 0.3610 | -837.0 | -668.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -16.44 | 108.94 | 9.42 | 204.65 | 0.3780 | -821.0 | -570.1 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -13.97 | 106.92 | 7.39 | 202.49 | 0.3279 | -870.0 | -681.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
