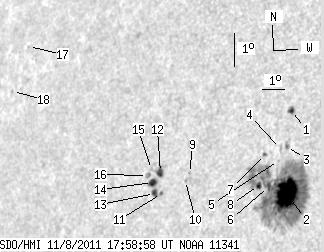

SDO HMI 2011-11-08 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.89 | 297.93 | 41.32 | 203.45 | 9.44 | 56.24 | -43.28 | 80.07 | 0.6885 | -779.7 | -331.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 3.62 | 1.64 | 2.46 | 11.81 | 56.70 | -42.82 | 76.56 | 0.6864 | 540.1 | 439.9 | |
| 39.21 | 261.73 | 26.42 | 177.03 | 9.33 | 56.93 | -42.59 | 80.15 | 0.6802 | -1175.4 | -341.6 | |
| 0.43 | 3.02 | 0.29 | 2.04 | 10.73 | 56.70 | -42.82 | 78.13 | 0.6848 | -698.4 | -525.5 | |
| 0.00 | 1.90 | 0.00 | 1.29 | 10.66 | 56.46 | -43.06 | 78.27 | 0.6876 | -542.0 | -359.2 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 10.30 | 56.44 | -43.08 | 78.80 | 0.6874 | -539.0 | -474.6 | |
| 2.33 | -2.00 | 1.59 | -2.00 | 9.51 | 56.16 | -43.36 | 79.98 | 0.6900 | -507.9 | 999999 | |
| 0.34 | 1.29 | 0.24 | 0.89 | 10.45 | 55.83 | -43.69 | 78.66 | 0.6952 | -549.2 | -403.8 | |
| 2.59 | -2.00 | 1.78 | -2.00 | 9.52 | 55.74 | -43.78 | 80.02 | 0.6953 | -439.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 9.75 | 52.73 | -46.79 | 80.02 | 0.7317 | 605.0 | 467.2 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 9.53 | 52.60 | -46.93 | 80.33 | 0.7331 | 535.0 | 426.4 | |
| 0.60 | 1.12 | 0.45 | 0.83 | 9.10 | 51.60 | -47.92 | 81.00 | 0.7444 | -790.7 | -804.2 | |
| 4.31 | 7.07 | 3.20 | 5.24 | 9.72 | 51.44 | -48.08 | 80.18 | 0.7467 | -744.8 | -490.8 | |
| 3.36 | 4.22 | 2.50 | 3.14 | 9.08 | 51.29 | -48.23 | 81.05 | 0.7479 | -628.0 | -584.2 | |
| 4.31 | 5.69 | 3.21 | 4.24 | 9.40 | 51.14 | -48.38 | 80.63 | 0.7499 | -753.5 | -455.9 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 9.79 | 51.02 | -48.50 | 80.13 | 0.7515 | -381.0 | -298.4 | |
| 0.00 | 2.84 | 0.00 | 2.13 | 9.60 | 50.87 | -48.65 | 80.39 | 0.7531 | -466.0 | -344.4 | |
| 0.00 | 0.34 | 0.00 | 0.30 | 13.16 | 44.05 | -55.48 | 76.52 | 0.8272 | 483.0 | 378.8 | |
| 0.00 | 1.12 | 0.00 | 0.99 | 11.77 | 43.63 | -55.90 | 78.22 | 0.8302 | 366.0 | 346.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
