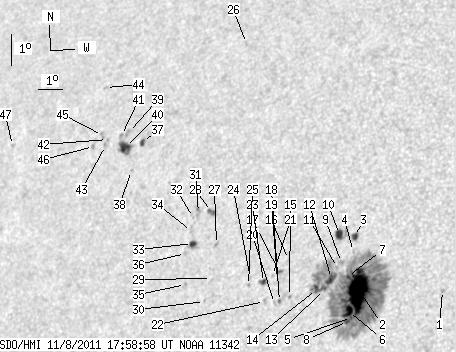

SDO HMI 2011-11-08 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.42 | 474.52 | 66.35 | 295.95 | 16.80 | 63.90 | -35.62 | 66.74 | 0.6078 | -455.1 | -305.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 17:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.87 | 16.43 | 68.57 | -30.96 | 64.96 | 0.5467 | -672.0 | -562.4 | |
| 51.36 | 378.25 | 31.36 | 231.34 | 16.36 | 65.49 | -34.03 | 66.72 | 0.5868 | -1220.2 | -403.0 | |
| 3.45 | 4.65 | 2.13 | 2.87 | 17.97 | 65.00 | -34.52 | 64.38 | 0.6001 | -819.7 | -578.1 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 17.51 | 65.06 | -34.46 | 65.08 | 0.5972 | -618.0 | -497.7 | |
| 1.21 | -2.00 | 0.74 | -2.00 | 15.51 | 65.40 | -34.13 | 68.17 | 0.5846 | -965.0 | 999999 | |
| 6.21 | -2.00 | 3.79 | -2.00 | 15.68 | 65.25 | -34.27 | 67.95 | 0.5872 | -923.9 | 999999 | |
| 1.47 | -2.00 | 0.90 | -2.00 | 16.74 | 65.00 | -34.52 | 66.34 | 0.5947 | -434.8 | 999999 | |
| 2.41 | -2.00 | 1.47 | -2.00 | 15.38 | 65.27 | -34.25 | 68.44 | 0.5857 | -816.2 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.65 | 17.16 | 64.68 | -34.84 | 65.82 | 0.6005 | -560.0 | -396.1 | |
| 6.03 | 11.29 | 3.75 | 7.02 | 18.01 | 64.42 | -35.10 | 64.61 | 0.6076 | -767.4 | -609.4 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 17.01 | 64.57 | -34.96 | 66.13 | 0.6014 | -395.0 | -425.5 | |
| 6.64 | -2.00 | 4.11 | -2.00 | 16.66 | 64.41 | -35.11 | 66.75 | 0.6020 | -762.6 | 999999 | |
| 1.38 | -2.00 | 0.85 | -2.00 | 16.32 | 64.22 | -35.30 | 67.39 | 0.6031 | -691.1 | 999999 | |
| 3.45 | -2.00 | 2.14 | -2.00 | 16.31 | 63.92 | -35.61 | 67.54 | 0.6069 | -618.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 16.06 | 62.93 | -36.59 | 68.35 | 0.6186 | -550.0 | -436.0 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 17.18 | 62.64 | -36.88 | 66.73 | 0.6264 | -521.0 | -405.8 | |
| 1.47 | 2.15 | 0.93 | 1.37 | 16.80 | 62.38 | -37.14 | 67.42 | 0.6283 | -580.6 | -445.6 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 15.89 | 62.58 | -36.94 | 68.75 | 0.6225 | -858.0 | -750.7 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 16.56 | 62.36 | -37.16 | 67.81 | 0.6277 | -657.0 | -510.3 | |
| 0.00 | 1.98 | 0.00 | 1.25 | 15.83 | 62.40 | -37.12 | 68.92 | 0.6245 | -623.0 | -490.0 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 16.67 | 62.14 | -37.39 | 67.72 | 0.6309 | -344.0 | -263.2 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 15.87 | 62.00 | -37.52 | 69.00 | 0.6298 | -467.0 | -386.0 | |
| 2.50 | 3.79 | 1.60 | 2.42 | 16.45 | 61.84 | -37.69 | 68.19 | 0.6339 | -635.8 | -419.3 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 16.55 | 61.30 | -38.22 | 68.24 | 0.6409 | -452.0 | -401.5 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 16.33 | 61.27 | -38.25 | 68.57 | 0.6405 | -687.0 | -499.9 | |
| 0.00 | 1.64 | 0.00 | 1.13 | 23.79 | 58.94 | -40.58 | 58.93 | 0.6974 | -544.0 | -493.5 | |
| 0.00 | 1.90 | 0.00 | 1.25 | 17.53 | 59.69 | -39.83 | 67.39 | 0.6640 | 761.0 | 609.7 | |
| 1.55 | 4.14 | 1.04 | 2.76 | 18.53 | 59.21 | -40.31 | 66.12 | 0.6731 | 894.5 | 793.3 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 16.49 | 59.76 | -39.77 | 68.89 | 0.6598 | -603.0 | -499.0 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 15.78 | 59.65 | -39.88 | 69.98 | 0.6590 | 434.0 | 520.1 | |
| 0.00 | 3.45 | 0.00 | 2.32 | 18.48 | 58.69 | -40.83 | 66.39 | 0.6791 | 815.0 | 664.8 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 18.32 | 58.53 | -40.99 | 66.68 | 0.6805 | 685.0 | 599.6 | |
| 3.19 | 6.38 | 2.14 | 4.27 | 17.52 | 58.71 | -40.81 | 67.75 | 0.6757 | 856.2 | 523.0 | |
| 0.00 | 1.29 | 0.00 | 0.87 | 17.89 | 58.57 | -40.95 | 67.28 | 0.6786 | 749.0 | 614.5 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 16.27 | 58.75 | -40.77 | 69.56 | 0.6713 | 765.0 | 685.6 | |
| 0.00 | 2.67 | 0.00 | 1.79 | 17.21 | 58.51 | -41.01 | 68.28 | 0.6771 | 489.0 | 389.4 | |
| 2.76 | 3.45 | 1.96 | 2.45 | 20.53 | 55.63 | -43.89 | 64.67 | 0.7207 | 655.6 | 522.5 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 19.65 | 55.46 | -44.07 | 65.91 | 0.7198 | 623.0 | 563.3 | |
| 0.00 | 3.45 | 0.00 | 2.49 | 20.81 | 54.90 | -44.62 | 64.54 | 0.7295 | 623.0 | 540.4 | |
| 10.34 | 11.55 | 7.44 | 8.31 | 20.34 | 54.94 | -44.58 | 65.15 | 0.7276 | 778.2 | 614.9 | |
| 0.00 | 1.90 | 0.00 | 1.37 | 20.70 | 54.63 | -44.89 | 64.78 | 0.7322 | 493.0 | 406.8 | |
| 0.00 | 1.38 | 0.00 | 1.01 | 20.55 | 54.05 | -45.47 | 65.16 | 0.7379 | 691.0 | 555.5 | |
| 0.00 | 1.64 | 0.00 | 1.20 | 20.37 | 54.03 | -45.49 | 65.42 | 0.7375 | 599.0 | 523.7 | |
| 0.00 | 1.72 | 0.00 | 1.29 | 22.16 | 53.31 | -46.21 | 63.32 | 0.7506 | 423.0 | 381.8 | |
| 0.00 | 2.07 | 0.00 | 1.52 | 20.67 | 53.78 | -45.74 | 65.10 | 0.7411 | 565.0 | 496.2 | |
| 0.00 | 1.98 | 0.00 | 1.46 | 20.31 | 53.51 | -46.02 | 65.65 | 0.7430 | 485.0 | 406.4 | |
| 0.00 | 2.07 | 0.00 | 1.63 | 20.17 | 49.72 | -49.80 | 66.89 | 0.7818 | 507.0 | 349.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
