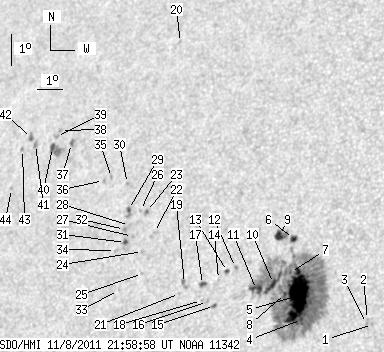

SDO HMI 2011-11-08 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.41 | 500.03 | 65.03 | 303.04 | 16.70 | 64.11 | -33.20 | 65.71 | 0.5766 | -567.4 | -288.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 21:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.70 | 15.42 | 68.31 | -29.00 | 65.57 | 0.5155 | -760.0 | -690.1 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 15.57 | 68.11 | -29.20 | 65.43 | 0.5189 | -650.0 | -570.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.44 | 68.09 | -29.22 | 65.66 | 0.5185 | -804.0 | -663.8 | |
| 0.86 | 412.45 | 0.51 | 246.08 | 15.49 | 65.76 | -31.55 | 66.91 | 0.5503 | -1191.8 | -403.6 | |
| 64.65 | -4.00 | 38.49 | -4.00 | 16.22 | 65.52 | -31.79 | 65.79 | 0.5568 | -1227.8 | 999999 | |
| 3.45 | 4.57 | 2.08 | 2.75 | 17.95 | 65.00 | -32.31 | 63.19 | 0.5719 | -830.2 | -496.5 | |
| 1.03 | -4.00 | 0.62 | -4.00 | 16.91 | 65.10 | -32.21 | 64.86 | 0.5655 | -443.8 | 999999 | |
| 1.47 | -4.00 | 0.88 | -4.00 | 16.26 | 65.04 | -32.27 | 65.98 | 0.5634 | -463.4 | 999999 | |
| 5.86 | 9.48 | 3.55 | 5.75 | 18.02 | 64.47 | -32.84 | 63.38 | 0.5791 | -754.5 | -652.4 | |
| 9.57 | -4.00 | 5.76 | -4.00 | 16.55 | 64.54 | -32.77 | 65.76 | 0.5712 | -754.5 | 999999 | |
| 6.64 | -4.00 | 4.02 | -4.00 | 16.35 | 63.95 | -33.36 | 66.40 | 0.5780 | -549.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.00 | 16.99 | 63.04 | -34.27 | 65.81 | 0.5926 | -759.0 | -649.8 | |
| 1.47 | 1.72 | 0.90 | 1.06 | 16.86 | 62.77 | -34.55 | 66.16 | 0.5956 | -549.3 | -343.3 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 16.60 | 62.48 | -34.83 | 66.70 | 0.5982 | -408.0 | -339.4 | |
| 0.60 | 2.24 | 0.37 | 1.38 | 15.81 | 62.49 | -34.82 | 67.98 | 0.5949 | -843.4 | -664.9 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 15.92 | 62.20 | -35.11 | 67.92 | 0.5991 | -627.0 | -396.8 | |
| 2.33 | 2.84 | 1.44 | 1.77 | 16.43 | 61.91 | -35.40 | 67.24 | 0.6049 | -716.8 | -597.7 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 15.94 | 61.97 | -35.34 | 67.99 | 0.6022 | -477.0 | -422.7 | |
| 0.00 | 4.40 | 0.00 | 2.75 | 16.44 | 61.22 | -36.09 | 67.53 | 0.6137 | -574.0 | -539.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 23.87 | 58.98 | -38.34 | 57.69 | 0.6735 | -343.0 | -422.9 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 16.13 | 61.09 | -36.22 | 68.08 | 0.6142 | -548.0 | -431.2 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 17.95 | 59.70 | -37.61 | 65.87 | 0.6386 | 729.0 | 519.8 | |
| 1.03 | 2.41 | 0.67 | 1.56 | 18.58 | 59.22 | -38.09 | 65.14 | 0.6469 | 720.6 | 676.3 | |
| 0.00 | 1.72 | 0.00 | 1.11 | 17.35 | 59.37 | -37.94 | 66.90 | 0.6403 | 756.0 | 634.2 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 16.68 | 59.53 | -37.78 | 67.85 | 0.6359 | -532.0 | -422.9 | |
| 0.00 | 1.12 | 0.00 | 0.73 | 18.60 | 58.97 | -38.34 | 65.21 | 0.6499 | 775.0 | 652.4 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 17.79 | 58.86 | -38.45 | 66.45 | 0.6482 | 694.0 | 628.5 | |
| 0.00 | 1.81 | 0.00 | 1.18 | 18.12 | 58.66 | -38.65 | 66.04 | 0.6519 | 733.0 | 607.5 | |
| 1.72 | 4.40 | 1.13 | 2.87 | 18.61 | 58.49 | -38.83 | 65.40 | 0.6558 | 733.8 | 731.7 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 19.41 | 58.22 | -39.09 | 64.35 | 0.6620 | 737.0 | 570.1 | |
| 1.55 | 4.22 | 1.01 | 2.74 | 17.60 | 58.63 | -38.68 | 66.83 | 0.6503 | 894.8 | 454.5 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 17.99 | 58.49 | -38.82 | 66.30 | 0.6535 | 815.0 | 765.6 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 16.13 | 58.71 | -38.60 | 69.00 | 0.6443 | 628.0 | 627.7 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 17.34 | 58.30 | -39.01 | 67.35 | 0.6535 | 723.0 | 592.6 | |
| 0.00 | 1.12 | 0.00 | 0.75 | 19.56 | 57.52 | -39.79 | 64.42 | 0.6709 | 729.0 | 625.5 | |
| 0.00 | 1.55 | 0.00 | 1.04 | 19.46 | 57.22 | -40.09 | 64.69 | 0.6740 | 677.0 | 595.1 | |
| 1.21 | 2.93 | 0.83 | 2.02 | 20.55 | 55.54 | -41.78 | 63.85 | 0.6973 | 691.5 | 635.0 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 20.93 | 54.93 | -42.38 | 63.56 | 0.7055 | 574.0 | 457.1 | |
| 0.00 | 2.41 | 0.00 | 1.68 | 20.74 | 54.83 | -42.48 | 63.86 | 0.7060 | 698.0 | 510.9 | |
| 3.19 | 11.64 | 2.22 | 8.08 | 20.39 | 54.77 | -42.54 | 64.35 | 0.7053 | 658.3 | 720.8 | |
| 0.00 | 2.93 | 0.00 | 2.07 | 20.45 | 54.01 | -43.30 | 64.55 | 0.7140 | 809.0 | 601.4 | |
| 0.78 | 3.36 | 0.55 | 2.38 | 20.63 | 53.78 | -43.54 | 64.39 | 0.7172 | 692.7 | 529.4 | |
| 0.00 | 1.64 | 0.00 | 1.16 | 20.27 | 53.51 | -43.80 | 64.97 | 0.7190 | 616.0 | 472.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 19.06 | 53.44 | -43.87 | 66.63 | 0.7159 | 566.0 | 507.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
