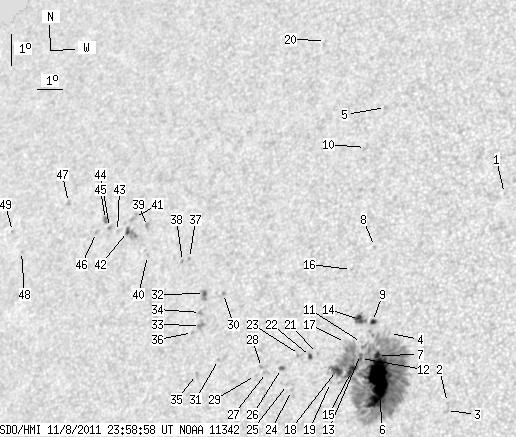

SDO HMI 2011-11-08 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.60 | 504.67 | 55.35 | 302.06 | 16.69 | 64.16 | -32.05 | 65.08 | 0.5616 | -550.8 | -316.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-08 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.40 | 22.03 | 68.95 | -27.25 | 52.75 | 0.5354 | -718.0 | -533.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 15.56 | 68.09 | -28.12 | 64.72 | 0.5041 | -586.0 | -522.8 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 15.31 | 68.09 | -28.12 | 65.18 | 0.5028 | -566.0 | -588.1 | |
| 0.00 | 1.29 | 0.00 | 0.76 | 17.59 | 65.69 | -30.52 | 62.67 | 0.5471 | -7.0 | -26.3 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 24.61 | 63.87 | -32.34 | 52.93 | 0.6118 | -672.0 | -526.1 | |
| 57.94 | 415.81 | 34.08 | 245.09 | 16.12 | 65.55 | -30.66 | 65.30 | 0.5413 | -1249.3 | -433.6 | |
| 2.24 | -6.00 | 1.32 | -6.00 | 16.91 | 65.38 | -30.83 | 64.04 | 0.5476 | -891.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 20.25 | 64.58 | -31.62 | 59.02 | 0.5760 | -546.0 | -385.1 | |
| 2.16 | 3.02 | 1.28 | 1.80 | 17.94 | 65.00 | -31.21 | 62.52 | 0.5578 | -835.7 | -759.5 | |
| 0.00 | 1.55 | 0.00 | 0.97 | 23.32 | 63.47 | -32.74 | 55.08 | 0.6080 | -683.0 | -578.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 17.29 | 64.73 | -31.48 | 63.78 | 0.5580 | -425.0 | -358.5 | |
| 0.95 | -6.00 | 0.56 | -6.00 | 16.80 | 64.78 | -31.43 | 64.58 | 0.5548 | -566.9 | 999999 | |
| 1.21 | -6.00 | 0.72 | -6.00 | 16.92 | 64.76 | -31.45 | 64.39 | 0.5557 | -539.5 | 999999 | |
| 4.83 | 8.79 | 2.89 | 5.26 | 17.99 | 64.51 | -31.69 | 62.74 | 0.5643 | -833.6 | -619.2 | |
| 6.72 | -6.00 | 4.00 | -6.00 | 16.39 | 64.53 | -31.68 | 65.42 | 0.5562 | -784.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 19.51 | 63.89 | -32.32 | 60.65 | 0.5803 | -495.0 | -380.4 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 17.27 | 64.14 | -32.07 | 64.16 | 0.5655 | 213.0 | 181.8 | |
| 5.95 | -6.00 | 3.56 | -6.00 | 16.41 | 63.98 | -32.23 | 65.70 | 0.5636 | -564.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 16.04 | 63.83 | -32.38 | 66.41 | 0.5639 | -528.0 | -437.1 | |
| 0.00 | 0.34 | 0.00 | 0.23 | 26.67 | 60.82 | -35.39 | 52.14 | 0.6578 | -577.0 | -462.5 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 16.90 | 63.18 | -33.03 | 65.30 | 0.5762 | -696.0 | -540.5 | |
| 2.07 | 2.67 | 1.25 | 1.62 | 16.80 | 62.94 | -33.27 | 65.59 | 0.5789 | -598.4 | -457.1 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 16.85 | 62.52 | -33.69 | 65.73 | 0.5845 | -270.0 | -279.5 | |
| 0.00 | 1.29 | 0.00 | 0.79 | 15.75 | 62.44 | -33.77 | 67.59 | 0.5809 | -777.0 | -572.9 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 15.92 | 62.26 | -33.95 | 67.38 | 0.5841 | -562.0 | -518.6 | |
| 1.72 | 2.41 | 1.06 | 1.48 | 16.40 | 61.94 | -34.27 | 66.75 | 0.5902 | -747.9 | -635.0 | |
| 0.00 | 2.50 | 0.00 | 1.54 | 16.26 | 61.40 | -34.81 | 67.23 | 0.5965 | -361.0 | -330.5 | |
| 0.00 | 1.38 | 0.00 | 0.85 | 16.40 | 61.18 | -35.03 | 67.10 | 0.6000 | -669.0 | -525.1 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 16.15 | 61.01 | -35.20 | 67.58 | 0.6012 | -489.0 | -427.2 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 18.61 | 59.21 | -37.00 | 64.58 | 0.6338 | 858.0 | 682.7 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 16.59 | 59.50 | -36.71 | 67.55 | 0.6222 | -610.0 | -512.8 | |
| 1.55 | 5.35 | 1.00 | 3.45 | 18.58 | 58.47 | -37.74 | 64.96 | 0.6427 | 723.9 | 724.9 | |
| 0.00 | 5.43 | 0.00 | 3.48 | 17.60 | 58.56 | -37.65 | 66.40 | 0.6377 | 923.0 | 733.7 | |
| 0.00 | 1.81 | 0.00 | 1.16 | 17.99 | 58.46 | -37.75 | 65.84 | 0.6405 | 846.0 | 770.6 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 16.10 | 58.75 | -37.46 | 68.60 | 0.6299 | 733.0 | 628.0 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 17.37 | 58.30 | -37.91 | 66.85 | 0.6401 | 834.0 | 630.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 19.63 | 57.58 | -38.63 | 63.81 | 0.6576 | 705.0 | 639.6 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 19.53 | 57.32 | -38.89 | 64.07 | 0.6602 | 706.0 | 632.9 | |
| 0.00 | 2.50 | 0.00 | 1.69 | 20.55 | 55.57 | -40.64 | 63.37 | 0.6846 | 765.0 | 640.3 | |
| 0.00 | 1.12 | 0.00 | 0.75 | 19.66 | 55.85 | -40.36 | 64.51 | 0.6780 | 615.0 | 464.8 | |
| 0.00 | 3.71 | 0.00 | 2.54 | 20.81 | 54.93 | -41.28 | 63.27 | 0.6928 | 589.0 | 474.0 | |
| 2.59 | 9.48 | 1.77 | 6.48 | 20.36 | 54.78 | -41.42 | 63.95 | 0.6928 | 707.3 | 703.2 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 20.35 | 54.36 | -41.84 | 64.14 | 0.6975 | 500.0 | 348.6 | |
| 0.00 | 1.72 | 0.00 | 1.20 | 20.46 | 53.98 | -42.22 | 64.13 | 0.7021 | 809.0 | 687.4 | |
| 2.67 | 3.45 | 1.86 | 2.40 | 20.70 | 53.73 | -42.48 | 63.90 | 0.7058 | 622.3 | 453.8 | |
| 0.00 | 1.72 | 0.00 | 1.20 | 20.28 | 53.48 | -42.72 | 64.56 | 0.7071 | 550.0 | 422.8 | |
| 0.00 | 2.33 | 0.00 | 1.67 | 21.16 | 51.94 | -44.27 | 63.94 | 0.7270 | 576.0 | 499.3 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 19.56 | 50.42 | -45.79 | 66.55 | 0.7385 | 722.0 | 656.7 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 20.15 | 49.78 | -46.42 | 65.96 | 0.7470 | 468.0 | 414.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
