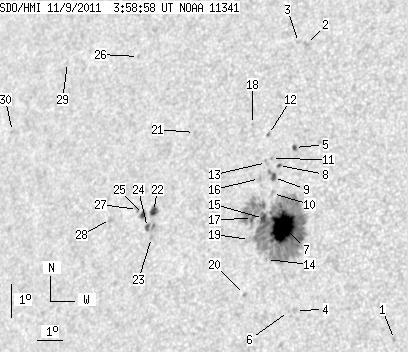

SDO HMI 2011-11-09 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.46 | 330.76 | 40.07 | 208.02 | 9.55 | 56.27 | -37.74 | 79.01 | 0.6170 | -756.6 | -368.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.91 | 6.15 | 61.31 | -32.70 | 84.17 | 0.5420 | -529.0 | -405.3 | |
| 0.00 | 2.76 | 0.00 | 1.74 | 14.85 | 56.93 | -37.08 | 70.38 | 0.6211 | -814.0 | -562.1 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 14.90 | 56.61 | -37.40 | 70.41 | 0.6254 | -596.0 | -504.1 | |
| 0.00 | 2.85 | 0.00 | 1.75 | 6.88 | 57.66 | -36.35 | 83.23 | 0.5949 | -540.0 | -507.3 | |
| 1.64 | 2.24 | 1.02 | 1.40 | 11.74 | 57.02 | -36.99 | 75.31 | 0.6112 | 540.8 | 512.1 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 6.84 | 57.40 | -36.61 | 83.32 | 0.5984 | -574.0 | -455.0 | |
| 41.48 | 272.00 | 25.83 | 169.83 | 9.36 | 56.90 | -37.11 | 79.21 | 0.6083 | -1262.6 | -381.8 | |
| 1.29 | 1.90 | 0.81 | 1.19 | 11.18 | 56.50 | -37.51 | 76.35 | 0.6170 | -580.7 | -413.0 | |
| 3.10 | 4.92 | 1.95 | 3.09 | 10.81 | 56.36 | -37.65 | 76.97 | 0.6181 | -816.7 | -604.0 | |
| 0.00 | 2.24 | 0.00 | 1.41 | 10.33 | 56.39 | -37.62 | 77.73 | 0.6168 | -637.0 | -521.0 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 11.38 | 56.20 | -37.81 | 76.10 | 0.6214 | -789.0 | -651.4 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 12.09 | 55.97 | -38.04 | 75.03 | 0.6261 | 553.0 | 476.0 | |
| 0.00 | 2.24 | 0.00 | 1.42 | 11.25 | 56.03 | -37.98 | 76.35 | 0.6235 | -658.0 | -482.1 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 8.36 | 56.42 | -37.59 | 80.93 | 0.6135 | -32.0 | -41.8 | |
| 3.62 | -7.00 | 2.28 | -7.00 | 9.57 | 56.15 | -37.86 | 79.00 | 0.6188 | -574.7 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.36 | 10.76 | 55.83 | -38.18 | 77.17 | 0.6251 | -619.0 | -393.8 | |
| 2.50 | -7.00 | 1.58 | -7.00 | 9.56 | 55.73 | -38.28 | 79.10 | 0.6244 | -548.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 12.37 | 55.30 | -38.71 | 74.77 | 0.6354 | -625.0 | -502.8 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 8.93 | 55.70 | -38.31 | 80.12 | 0.6239 | 121.0 | 40.2 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 7.29 | 55.69 | -38.32 | 82.76 | 0.6223 | 528.0 | 403.8 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 12.04 | 53.06 | -40.95 | 75.80 | 0.6636 | 221.0 | 122.7 | |
| 4.66 | 5.69 | 3.12 | 3.81 | 9.61 | 51.81 | -42.20 | 79.63 | 0.6757 | -753.4 | -558.2 | |
| 0.00 | 1.81 | 0.00 | 1.21 | 8.83 | 51.84 | -42.17 | 80.77 | 0.6744 | -720.0 | -534.9 | |
| 2.41 | 4.74 | 1.62 | 3.18 | 9.13 | 51.63 | -42.38 | 80.37 | 0.6773 | -661.8 | -714.5 | |
| 2.76 | 4.23 | 1.86 | 2.85 | 9.51 | 51.41 | -42.60 | 79.83 | 0.6805 | -612.2 | -385.6 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 14.22 | 50.27 | -43.74 | 73.25 | 0.7022 | 508.0 | 443.6 | |
| 0.00 | 2.59 | 0.00 | 1.75 | 9.64 | 51.15 | -42.87 | 79.67 | 0.6841 | -636.0 | -383.1 | |
| 0.00 | 2.85 | 0.00 | 1.96 | 9.30 | 50.08 | -43.93 | 80.29 | 0.6970 | -663.0 | -515.7 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 13.91 | 47.25 | -46.76 | 74.31 | 0.7369 | 520.0 | 445.8 | |
| 0.00 | 1.38 | 0.00 | 1.04 | 11.73 | 45.29 | -48.72 | 77.52 | 0.7559 | 637.0 | 548.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
