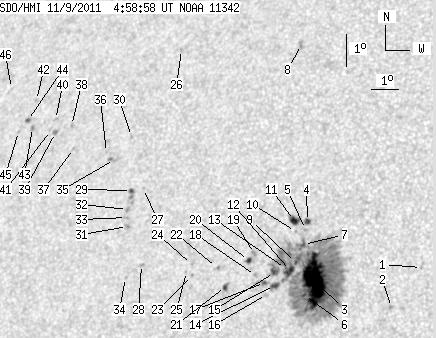

SDO HMI 2011-11-09 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.70 | 493.23 | 60.51 | 285.97 | 16.55 | 64.50 | -28.96 | 63.38 | 0.5205 | -616.3 | -338.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.53 | 16.64 | 69.19 | -24.27 | 59.55 | 0.4588 | -885.0 | -599.2 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 15.39 | 68.33 | -25.13 | 62.76 | 0.4624 | -894.0 | -708.8 | |
| 69.51 | 412.67 | 39.82 | 236.75 | 16.11 | 65.57 | -27.89 | 63.47 | 0.5043 | -1253.2 | -431.9 | |
| 3.02 | 3.54 | 1.75 | 2.05 | 17.93 | 65.03 | -28.44 | 60.59 | 0.5222 | -763.5 | -445.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 17.69 | 65.00 | -28.46 | 61.04 | 0.5211 | -831.0 | -674.8 | |
| 1.47 | -3.00 | 0.84 | -3.00 | 15.68 | 65.29 | -28.17 | 64.48 | 0.5058 | -589.5 | 999999 | |
| 1.55 | -3.00 | 0.90 | -3.00 | 17.23 | 65.01 | -28.46 | 61.85 | 0.5182 | -706.2 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.40 | 23.42 | 63.65 | -29.81 | 52.72 | 0.5756 | -743.0 | -475.7 | |
| 0.69 | -3.00 | 0.40 | -3.00 | 16.67 | 64.82 | -28.65 | 62.98 | 0.5176 | -809.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 17.62 | 64.66 | -28.81 | 61.41 | 0.5251 | -573.0 | -475.4 | |
| 5.61 | 7.59 | 3.27 | 4.42 | 17.95 | 64.56 | -28.90 | 60.90 | 0.5283 | -774.5 | -454.7 | |
| 5.17 | -3.00 | 2.99 | -3.00 | 16.42 | 64.68 | -28.78 | 63.52 | 0.5181 | -824.7 | 999999 | |
| 1.38 | -3.00 | 0.80 | -3.00 | 16.48 | 64.49 | -28.97 | 63.55 | 0.5208 | -518.9 | 999999 | |
| 3.71 | -3.00 | 2.15 | -3.00 | 15.95 | 64.19 | -29.27 | 64.70 | 0.5221 | -788.3 | 999999 | |
| 3.10 | -3.00 | 1.80 | -3.00 | 16.35 | 64.13 | -29.34 | 64.03 | 0.5251 | -680.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 15.67 | 63.95 | -29.51 | 65.36 | 0.5239 | -342.0 | -249.0 | |
| 1.55 | 6.12 | 0.90 | 3.57 | 16.03 | 63.82 | -29.64 | 64.79 | 0.5275 | -625.2 | -382.5 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 16.23 | 63.47 | -30.00 | 64.65 | 0.5333 | -561.0 | -546.2 | |
| 0.00 | 2.67 | 0.00 | 1.57 | 16.90 | 63.32 | -30.15 | 63.57 | 0.5388 | -709.0 | -596.9 | |
| 2.33 | 2.76 | 1.37 | 1.62 | 16.68 | 63.14 | -30.33 | 64.06 | 0.5400 | -641.4 | -461.5 | |
| 1.81 | 3.62 | 1.07 | 2.14 | 15.87 | 62.45 | -31.01 | 65.89 | 0.5451 | 694.4 | 534.2 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 16.43 | 62.03 | -31.44 | 65.16 | 0.5535 | -743.0 | -649.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 16.16 | 61.20 | -32.26 | 66.08 | 0.5631 | -636.0 | -607.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 16.50 | 61.10 | -32.36 | 65.57 | 0.5659 | 537.0 | 365.3 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 16.28 | 60.96 | -32.51 | 66.01 | 0.5668 | -470.0 | -441.0 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 23.12 | 59.14 | -34.32 | 56.38 | 0.6250 | -639.0 | -576.0 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 18.76 | 58.83 | -34.64 | 63.14 | 0.6056 | 697.0 | 512.2 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 16.44 | 59.26 | -34.21 | 66.61 | 0.5897 | -677.0 | -487.1 | |
| 1.90 | 6.90 | 1.18 | 4.30 | 18.68 | 58.38 | -35.08 | 63.49 | 0.6107 | 748.5 | 695.1 | |
| 0.00 | 1.21 | 0.00 | 0.76 | 20.34 | 57.97 | -35.50 | 61.18 | 0.6238 | 802.0 | 626.0 | |
| 0.00 | 1.38 | 0.00 | 0.86 | 17.57 | 58.49 | -34.98 | 65.17 | 0.6045 | 897.0 | 805.2 | |
| 0.00 | 1.81 | 0.00 | 1.13 | 18.09 | 58.37 | -35.10 | 64.41 | 0.6082 | 846.0 | 732.6 | |
| 0.00 | 2.16 | 0.00 | 1.34 | 17.85 | 58.39 | -35.08 | 64.79 | 0.6069 | 926.0 | 689.7 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 16.02 | 58.74 | -34.73 | 67.53 | 0.5948 | 674.0 | 472.3 | |
| 0.00 | 3.88 | 0.00 | 2.46 | 19.61 | 57.49 | -35.97 | 62.53 | 0.6259 | 714.0 | 684.3 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 19.81 | 57.13 | -36.34 | 62.41 | 0.6313 | 604.0 | 526.4 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 19.89 | 55.80 | -37.67 | 62.95 | 0.6475 | 699.0 | 516.3 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 20.60 | 55.51 | -37.95 | 62.06 | 0.6540 | 792.0 | 651.6 | |
| 0.00 | 2.76 | 0.00 | 1.81 | 20.36 | 54.94 | -38.53 | 62.68 | 0.6596 | 867.0 | 718.4 | |
| 0.00 | 1.98 | 0.00 | 1.31 | 20.76 | 54.82 | -38.65 | 62.16 | 0.6628 | 721.0 | 599.9 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 20.41 | 54.72 | -38.75 | 62.70 | 0.6624 | 480.0 | 485.9 | |
| 0.00 | 1.38 | 0.00 | 0.93 | 21.32 | 53.86 | -39.60 | 61.81 | 0.6762 | 382.0 | 208.1 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 20.48 | 53.96 | -39.50 | 62.95 | 0.6715 | 779.0 | 644.2 | |
| 1.90 | 2.16 | 1.27 | 1.44 | 20.69 | 53.69 | -39.78 | 62.77 | 0.6755 | 635.0 | 588.3 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 20.33 | 53.43 | -40.04 | 63.39 | 0.6770 | 632.0 | 510.2 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 21.65 | 52.70 | -40.76 | 61.86 | 0.6906 | 483.0 | 339.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
