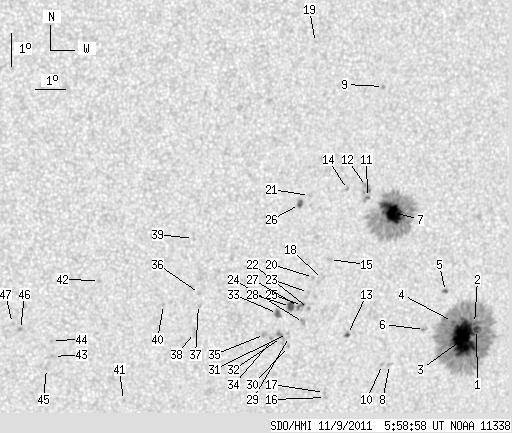

SDO HMI 2011-11-09 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.44 | 540.02 | 55.11 | 321.03 | -13.80 | 121.68 | 28.77 | 238.05 | 0.5526 | 483.9 | 276.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.76 | 302.02 | 1.69 | 183.99 | -14.91 | 123.89 | 30.98 | 238.22 | 0.5873 | 781.5 | 337.0 | |
| 2.59 | -1.00 | 1.58 | -1.00 | -14.72 | 123.79 | 30.87 | 238.42 | 0.5848 | 803.9 | 999999 | |
| 48.55 | -1.00 | 29.57 | -1.00 | -15.18 | 123.47 | 30.55 | 237.48 | 0.5841 | 1216.5 | 999999 | |
| 0.95 | -1.00 | 0.57 | -1.00 | -14.64 | 122.99 | 30.07 | 237.91 | 0.5745 | 1207.0 | 999999 | |
| 1.55 | 1.72 | 0.93 | 1.03 | -13.69 | 122.61 | 29.69 | 239.06 | 0.5632 | 825.8 | 884.5 | |
| 0.00 | 1.98 | 0.00 | 1.19 | -14.86 | 122.03 | 29.12 | 236.77 | 0.5645 | 833.0 | 685.3 | |
| 22.85 | 156.96 | 13.22 | 90.87 | -11.19 | 120.46 | 27.55 | 241.39 | 0.5189 | 1231.3 | 364.9 | |
| 0.00 | 2.16 | 0.00 | 1.29 | -15.92 | 120.97 | 28.05 | 234.19 | 0.5598 | 777.0 | 556.7 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -7.33 | 119.83 | 26.92 | 247.92 | 0.4865 | 802.0 | 687.9 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -15.91 | 120.72 | 27.80 | 233.97 | 0.5568 | 840.0 | 746.1 | |
| 0.34 | 2.67 | 0.20 | 1.53 | -10.70 | 119.56 | 26.65 | 241.46 | 0.5037 | 966.5 | 845.6 | |
| 0.00 | 4.83 | 0.00 | 2.76 | -10.36 | 119.50 | 26.58 | 242.01 | 0.5005 | 772.0 | 722.3 | |
| 1.38 | 2.93 | 0.81 | 1.71 | -14.93 | 119.37 | 26.45 | 234.17 | 0.5329 | 766.6 | 547.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -10.44 | 118.87 | 25.95 | 241.31 | 0.4926 | 853.0 | 677.0 | |
| 0.00 | 2.24 | 0.00 | 1.28 | -12.58 | 118.47 | 25.55 | 237.15 | 0.5032 | 733.0 | 508.6 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -16.90 | 118.89 | 25.97 | 230.66 | 0.5439 | -612.0 | -454.9 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -16.74 | 118.83 | 25.91 | 230.84 | 0.5418 | -561.0 | -437.6 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -13.19 | 118.30 | 25.38 | 235.94 | 0.5059 | -409.0 | -362.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -5.94 | 117.49 | 24.58 | 248.94 | 0.4452 | 775.0 | 538.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -13.12 | 117.99 | 25.07 | 235.74 | 0.5014 | -830.0 | -613.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -10.58 | 117.61 | 24.69 | 239.84 | 0.4769 | 693.0 | 591.0 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -14.08 | 117.93 | 25.01 | 234.07 | 0.5085 | -678.0 | -541.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.58 | 117.87 | 24.96 | 234.84 | 0.5037 | -753.0 | -599.7 | |
| 0.00 | 2.59 | 0.00 | 1.49 | -14.51 | 117.81 | 24.90 | 233.24 | 0.5108 | -537.0 | -543.2 | |
| 1.12 | 3.97 | 0.64 | 2.27 | -13.98 | 117.72 | 24.80 | 234.01 | 0.5051 | -746.8 | -707.9 | |
| 0.95 | 3.28 | 0.53 | 1.84 | -10.85 | 117.30 | 24.38 | 239.03 | 0.4748 | 1020.6 | 910.5 | |
| 1.12 | -25.00 | 0.64 | -25.00 | -14.01 | 117.58 | 24.67 | 233.82 | 0.5037 | -845.4 | 999999 | |
| 4.74 | 5.78 | 2.71 | 3.30 | -14.00 | 117.31 | 24.40 | 233.54 | 0.5004 | -967.4 | -820.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -14.94 | 117.39 | 24.47 | 232.09 | 0.5094 | -363.0 | -223.9 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -15.25 | 117.40 | 24.48 | 231.59 | 0.5122 | -519.0 | -449.2 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -14.84 | 117.31 | 24.39 | 232.16 | 0.5076 | -469.0 | -311.8 | |
| 0.00 | 5.61 | 0.00 | 3.22 | -14.96 | 117.12 | 24.21 | 231.75 | 0.5064 | -748.0 | -649.9 | |
| 3.54 | 3.97 | 2.02 | 2.26 | -14.21 | 116.90 | 23.98 | 232.74 | 0.4971 | -896.9 | -695.4 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -15.02 | 116.83 | 23.91 | 231.33 | 0.5034 | -839.0 | -724.3 | |
| 0.00 | 3.28 | 0.00 | 1.87 | -14.85 | 116.54 | 23.62 | 231.26 | 0.4985 | -844.0 | -673.0 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -13.52 | 114.24 | 21.32 | 230.70 | 0.4588 | -688.0 | -543.7 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -13.86 | 114.24 | 21.32 | 230.11 | 0.4621 | -281.0 | -436.2 | |
| 0.00 | 3.19 | 0.00 | 1.79 | -14.73 | 114.20 | 21.28 | 228.58 | 0.4700 | -537.0 | -553.8 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -11.81 | 113.90 | 20.98 | 233.34 | 0.4387 | -610.0 | -488.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -13.84 | 113.09 | 20.18 | 228.62 | 0.4482 | -884.0 | -712.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -16.83 | 112.08 | 19.16 | 222.33 | 0.4685 | -713.0 | -605.4 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -13.05 | 110.96 | 18.04 | 226.87 | 0.4152 | -738.0 | -649.2 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -15.39 | 109.67 | 16.75 | 220.79 | 0.4272 | -788.0 | -637.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -14.89 | 109.56 | 16.65 | 221.42 | 0.4202 | -795.0 | -666.6 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -15.76 | 109.47 | 16.56 | 219.88 | 0.4296 | -753.0 | -516.0 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -14.52 | 108.54 | 15.63 | 220.25 | 0.4053 | -962.0 | -829.7 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -14.33 | 108.28 | 15.36 | 220.08 | 0.4002 | -729.0 | -548.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
