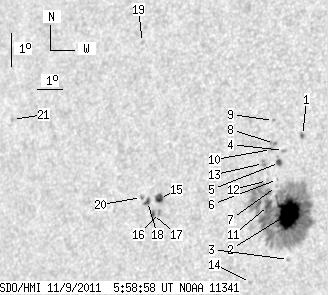

SDO HMI 2011-11-09 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.10 | 312.12 | 37.37 | 193.15 | 9.49 | 56.42 | -36.50 | 78.86 | 0.5999 | -847.9 | -363.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.29 | 1.81 | 0.80 | 1.11 | 11.70 | 57.11 | -35.81 | 75.02 | 0.5953 | 576.1 | 474.7 | |
| 41.65 | 274.94 | 25.57 | 169.28 | 9.36 | 56.90 | -36.02 | 78.99 | 0.5933 | -1263.4 | -369.2 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 7.99 | 57.05 | -35.86 | 81.28 | 0.5892 | -543.0 | -501.9 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 11.23 | 56.46 | -36.45 | 75.98 | 0.6030 | -951.0 | -690.3 | |
| 2.41 | 3.62 | 1.50 | 2.25 | 10.87 | 56.37 | -36.55 | 76.60 | 0.6035 | -854.8 | -657.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 10.36 | 56.36 | -36.56 | 77.44 | 0.6025 | -529.0 | -454.5 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 10.15 | 56.35 | -36.57 | 77.79 | 0.6023 | -540.0 | -406.4 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 11.43 | 56.09 | -36.82 | 75.75 | 0.6084 | -871.0 | -683.6 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 12.11 | 55.95 | -36.97 | 74.68 | 0.6120 | 551.0 | 488.3 | |
| 0.00 | 1.47 | 0.00 | 0.91 | 11.24 | 56.01 | -36.91 | 76.07 | 0.6092 | -639.0 | -521.9 | |
| 5.78 | -2.00 | 3.59 | -2.00 | 9.57 | 56.13 | -36.79 | 78.79 | 0.6043 | -528.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 10.31 | 55.99 | -36.93 | 77.60 | 0.6075 | -434.0 | -279.5 | |
| 0.00 | 2.67 | 0.00 | 1.67 | 10.81 | 55.77 | -37.15 | 76.83 | 0.6115 | -581.0 | -472.7 | |
| 0.00 | 1.47 | 0.00 | 0.91 | 7.25 | 55.71 | -37.21 | 82.68 | 0.6071 | 477.0 | 374.7 | |
| 4.74 | 6.04 | 3.12 | 3.97 | 9.62 | 51.89 | -41.03 | 79.44 | 0.6607 | -751.1 | -542.6 | |
| 0.00 | 1.90 | 0.00 | 1.25 | 9.20 | 51.95 | -40.97 | 80.06 | 0.6594 | -734.0 | -689.6 | |
| 1.64 | 2.50 | 1.08 | 1.65 | 9.13 | 51.68 | -41.24 | 80.20 | 0.6629 | -711.0 | -597.7 | |
| 2.59 | 3.19 | 1.71 | 2.11 | 9.51 | 51.42 | -41.50 | 79.67 | 0.6666 | -643.3 | -425.5 | |
| 0.00 | 1.38 | 0.00 | 0.94 | 14.26 | 50.31 | -42.61 | 72.92 | 0.6888 | 466.0 | 318.2 | |
| 0.00 | 1.55 | 0.00 | 1.03 | 9.62 | 51.16 | -41.76 | 79.54 | 0.6700 | -643.0 | -440.8 | |
| 0.00 | 1.21 | 0.00 | 0.89 | 11.71 | 45.26 | -47.66 | 77.40 | 0.7440 | 652.0 | 576.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
