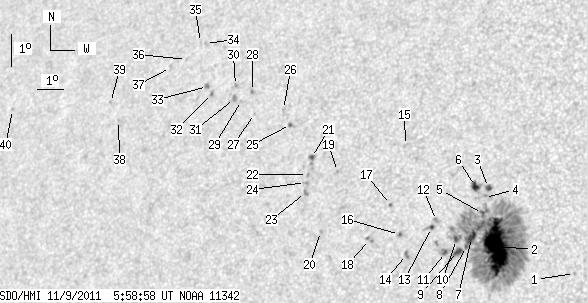

SDO HMI 2011-11-09 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.31 | 493.88 | 59.28 | 285.50 | 16.58 | 64.35 | -28.57 | 63.02 | 0.5151 | -604.2 | -317.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.53 | 15.40 | 68.36 | -24.55 | 62.25 | 0.4546 | -906.0 | -759.3 | |
| 73.65 | 403.95 | 41.99 | 230.56 | 16.15 | 65.58 | -27.34 | 62.99 | 0.4971 | -1245.2 | -426.3 | |
| 2.76 | 2.93 | 1.59 | 1.69 | 17.94 | 65.01 | -27.91 | 60.16 | 0.5154 | -761.6 | -722.5 | |
| 0.00 | 6.38 | 0.00 | 3.68 | 17.63 | 64.92 | -27.99 | 60.78 | 0.5146 | -553.0 | -442.6 | |
| 1.72 | -2.00 | 0.99 | -2.00 | 17.14 | 64.93 | -27.98 | 61.65 | 0.5115 | -625.8 | 999999 | |
| 4.57 | 7.68 | 2.65 | 4.45 | 17.96 | 64.55 | -28.37 | 60.48 | 0.5215 | -749.7 | -587.0 | |
| 7.33 | -2.00 | 4.22 | -2.00 | 16.40 | 64.67 | -28.25 | 63.19 | 0.5108 | -805.0 | 999999 | |
| 0.60 | -2.00 | 0.35 | -2.00 | 16.12 | 64.54 | -28.38 | 63.79 | 0.5111 | -788.1 | 999999 | |
| 4.31 | 5.86 | 2.49 | 3.38 | 15.96 | 64.24 | -28.67 | 64.28 | 0.5141 | -797.3 | -588.9 | |
| 1.98 | -2.00 | 1.15 | -2.00 | 16.32 | 64.15 | -28.77 | 63.68 | 0.5174 | -668.3 | 999999 | |
| 1.64 | 9.23 | 0.95 | 5.35 | 15.92 | 63.83 | -29.09 | 64.63 | 0.5196 | -592.9 | -435.9 | |
| 0.00 | 2.76 | 0.00 | 1.61 | 16.88 | 63.35 | -29.57 | 63.22 | 0.5311 | -735.0 | -604.3 | |
| 1.38 | 3.88 | 0.81 | 2.27 | 16.66 | 63.21 | -29.71 | 63.70 | 0.5318 | -703.9 | -446.4 | |
| 0.00 | 3.02 | 0.00 | 1.77 | 15.82 | 62.45 | -30.46 | 65.66 | 0.5375 | 870.0 | 764.7 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 19.14 | 61.79 | -31.13 | 60.42 | 0.5638 | -526.0 | -419.1 | |
| 0.52 | 1.72 | 0.31 | 1.02 | 16.42 | 62.10 | -30.82 | 64.82 | 0.5452 | -798.0 | -635.5 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 17.32 | 61.61 | -31.31 | 63.57 | 0.5562 | 705.0 | 544.1 | |
| 0.00 | 3.45 | 0.00 | 2.06 | 16.23 | 61.04 | -31.87 | 65.74 | 0.5583 | -634.0 | -589.2 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 18.26 | 59.45 | -33.47 | 63.27 | 0.5886 | 836.0 | 638.6 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 16.41 | 59.20 | -33.72 | 66.40 | 0.5833 | -623.0 | -510.2 | |
| 1.47 | 3.79 | 0.91 | 2.35 | 18.66 | 58.38 | -34.54 | 63.23 | 0.6039 | 803.1 | 722.3 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 18.14 | 58.35 | -34.57 | 64.07 | 0.6019 | 807.0 | 722.1 | |
| 0.00 | 2.67 | 0.00 | 1.65 | 17.58 | 58.39 | -34.52 | 64.92 | 0.5988 | 893.0 | 751.7 | |
| 0.00 | 2.16 | 0.00 | 1.33 | 17.89 | 58.33 | -34.59 | 64.47 | 0.6010 | 827.0 | 683.2 | |
| 1.38 | 2.50 | 0.87 | 1.58 | 19.65 | 57.33 | -35.59 | 62.27 | 0.6215 | 733.2 | 694.8 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 20.10 | 56.94 | -35.98 | 61.79 | 0.6284 | 571.0 | 482.9 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 19.94 | 55.84 | -37.08 | 62.59 | 0.6408 | 705.0 | 553.3 | |
| 0.00 | 1.81 | 0.00 | 1.17 | 20.61 | 55.57 | -37.35 | 61.73 | 0.6471 | 779.0 | 577.6 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 20.32 | 55.21 | -37.71 | 62.34 | 0.6499 | 650.0 | 561.4 | |
| 0.00 | 1.47 | 0.00 | 0.96 | 20.77 | 54.83 | -38.08 | 61.86 | 0.6563 | 744.0 | 635.3 | |
| 0.00 | 3.19 | 0.00 | 2.08 | 20.37 | 54.91 | -38.00 | 62.40 | 0.6536 | 873.0 | 750.1 | |
| 0.00 | 2.24 | 0.00 | 1.48 | 20.49 | 53.94 | -38.97 | 62.68 | 0.6655 | 751.0 | 546.7 | |
| 0.00 | 2.85 | 0.00 | 1.89 | 20.70 | 53.72 | -39.20 | 62.49 | 0.6690 | 855.0 | 590.3 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 22.03 | 53.20 | -39.72 | 60.86 | 0.6805 | 536.0 | 393.4 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 22.05 | 52.98 | -39.93 | 60.93 | 0.6830 | 456.0 | 337.5 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 21.50 | 52.58 | -40.33 | 61.87 | 0.6852 | 519.0 | 401.9 | |
| 0.00 | 1.98 | 0.00 | 1.35 | 21.23 | 52.00 | -40.92 | 62.50 | 0.6906 | 578.0 | 499.7 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 19.51 | 50.36 | -42.56 | 65.51 | 0.7029 | 651.0 | 466.7 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 20.05 | 49.83 | -43.08 | 64.96 | 0.7106 | 598.0 | 491.8 | |
| 0.00 | 1.29 | 0.00 | 0.97 | 19.65 | 45.57 | -47.35 | 66.85 | 0.7557 | 561.0 | 518.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
