SDO HMI 2011-11-09 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.91 | 521.87 | 52.95 | 311.82 | -13.82 | 121.68 | 29.31 | 238.51 | 0.5593 | 529.6 | 282.1 | |
|
previous
or next observation for the same group /

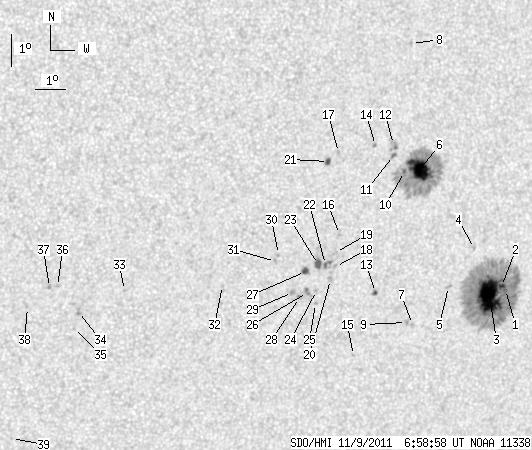

back to the solar disc SDO HMI 2011-11-09 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 289.67 | 0.16 | 177.40 | -15.01 | 124.01 | 31.64 | 238.61 | 0.5958 | 415.3 | 374.0 | |
| 1.72 | -1.00 | 1.06 | -1.00 | -14.91 | 123.85 | 31.48 | 238.63 | 0.5932 | 847.8 | 999999 | |
| 42.95 | -1.00 | 26.31 | -1.00 | -15.18 | 123.46 | 31.09 | 237.93 | 0.5904 | 1221.7 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.83 | -13.68 | 122.70 | 30.32 | 239.59 | 0.5710 | 901.0 | 706.3 | |
| 0.00 | 1.98 | 0.00 | 1.19 | -14.84 | 121.95 | 29.57 | 237.19 | 0.5699 | 537.0 | 609.3 | |
| 26.65 | 151.52 | 15.49 | 88.17 | -11.18 | 120.47 | 28.09 | 241.88 | 0.5259 | 1199.2 | 336.8 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -16.00 | 120.85 | 28.48 | 234.47 | 0.5655 | 799.0 | 590.2 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -7.33 | 119.86 | 27.49 | 248.36 | 0.4945 | 771.0 | 622.5 | |
| 0.00 | 2.33 | 0.00 | 1.39 | -15.93 | 120.63 | 28.26 | 234.37 | 0.5623 | 845.0 | 647.1 | |
| 1.21 | -6.00 | 0.70 | -6.00 | -11.22 | 119.96 | 27.58 | 241.37 | 0.5196 | 866.9 | 999999 | |
| 1.55 | 2.41 | 0.89 | 1.39 | -10.72 | 119.53 | 27.16 | 241.88 | 0.5106 | 834.1 | 860.1 | |
| 0.00 | 7.33 | 0.00 | 4.21 | -10.38 | 119.50 | 27.13 | 242.45 | 0.5079 | 761.0 | 711.4 | |
| 1.72 | 2.33 | 1.01 | 1.37 | -14.95 | 119.41 | 27.04 | 234.72 | 0.5401 | 784.3 | 778.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -10.40 | 118.89 | 26.52 | 241.90 | 0.4999 | 829.0 | 696.5 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -16.92 | 118.93 | 26.56 | 231.25 | 0.5507 | -672.0 | -499.2 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -13.11 | 117.95 | 25.58 | 236.28 | 0.5076 | -711.0 | -556.6 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -10.58 | 117.66 | 25.29 | 240.45 | 0.4847 | 814.0 | 550.9 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -14.10 | 117.93 | 25.56 | 234.61 | 0.5153 | -609.0 | -471.5 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -13.66 | 117.88 | 25.51 | 235.28 | 0.5111 | -462.0 | -511.3 | |
| 0.00 | 2.76 | 0.00 | 1.59 | -14.50 | 117.81 | 25.44 | 233.84 | 0.5172 | -594.0 | -504.4 | |
| 3.02 | 3.10 | 1.70 | 1.75 | -10.84 | 117.35 | 24.98 | 239.66 | 0.4826 | 937.1 | 924.0 | |
| 1.21 | 15.09 | 0.69 | 8.67 | -14.03 | 117.58 | 25.21 | 234.37 | 0.5105 | -857.4 | -683.1 | |
| 4.83 | -22.00 | 2.77 | -22.00 | -14.02 | 117.34 | 24.97 | 234.13 | 0.5075 | -925.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -14.83 | 117.37 | 25.00 | 232.84 | 0.5147 | -399.0 | -274.5 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -15.24 | 117.39 | 25.02 | 232.21 | 0.5184 | -557.0 | -422.9 | |
| 0.00 | 4.05 | 0.00 | 2.33 | -14.89 | 117.08 | 24.70 | 232.43 | 0.5116 | -815.0 | -681.5 | |
| 3.79 | 4.74 | 2.17 | 2.72 | -14.23 | 116.93 | 24.56 | 233.34 | 0.5042 | -824.9 | -549.4 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -15.04 | 116.82 | 24.45 | 231.92 | 0.5099 | -902.0 | -793.7 | |
| 0.00 | 3.36 | 0.00 | 1.93 | -14.88 | 116.57 | 24.20 | 231.89 | 0.5055 | -861.0 | -683.1 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -13.68 | 115.96 | 23.59 | 233.19 | 0.4877 | -667.0 | -652.7 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -13.89 | 115.88 | 23.51 | 232.74 | 0.4886 | -756.0 | -600.4 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -14.60 | 114.20 | 21.83 | 229.53 | 0.4750 | -675.0 | -577.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -14.68 | 111.00 | 18.63 | 224.94 | 0.4392 | -702.0 | -577.4 | |
| 0.00 | 3.19 | 0.00 | 1.75 | -15.31 | 109.57 | 17.19 | 221.66 | 0.4308 | -781.0 | -734.8 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -15.84 | 109.45 | 17.08 | 220.63 | 0.4357 | -437.0 | -398.8 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -14.52 | 108.83 | 16.46 | 221.73 | 0.4138 | -826.0 | -692.5 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -14.54 | 108.57 | 16.20 | 221.25 | 0.4114 | -930.0 | -768.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -15.16 | 107.92 | 15.55 | 219.09 | 0.4120 | -710.0 | -659.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -19.31 | 107.76 | 15.39 | 212.95 | 0.4623 | -676.0 | -600.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
