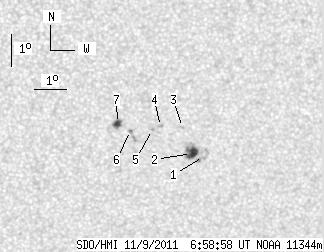

SDO HMI 2011-11-09 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.23 | 36.23 | 7.62 | 19.42 | -17.66 | 99.81 | 7.44 | 198.78 | 0.3836 | 15.4 | 60.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.38 | 0.00 | 3.44 | -18.10 | 100.87 | 8.50 | 200.89 | 0.3957 | 514.0 | 652.8 | |
| 9.14 | 14.92 | 4.92 | 8.02 | -18.00 | 100.49 | 8.12 | 200.12 | 0.3921 | 1012.3 | 606.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.17 | 100.17 | 7.80 | 200.16 | 0.3778 | -733.0 | -445.5 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -17.13 | 99.48 | 7.11 | 198.54 | 0.3735 | -923.0 | -612.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.22 | 99.23 | 6.86 | 197.86 | 0.3737 | -961.0 | -767.6 | |
| 1.21 | 4.83 | 0.64 | 2.58 | -17.25 | 98.54 | 6.17 | 196.15 | 0.3708 | -774.5 | -597.8 | |
| 3.88 | 6.04 | 2.06 | 3.21 | -17.03 | 98.13 | 5.76 | 195.29 | 0.3655 | -1069.6 | -817.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
