SDO HMI 2011-11-09 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.36 | 510.73 | 45.85 | 310.18 | -13.87 | 121.56 | 30.83 | 239.61 | 0.5783 | 354.0 | 257.3 | |
|
previous
or next observation for the same group /

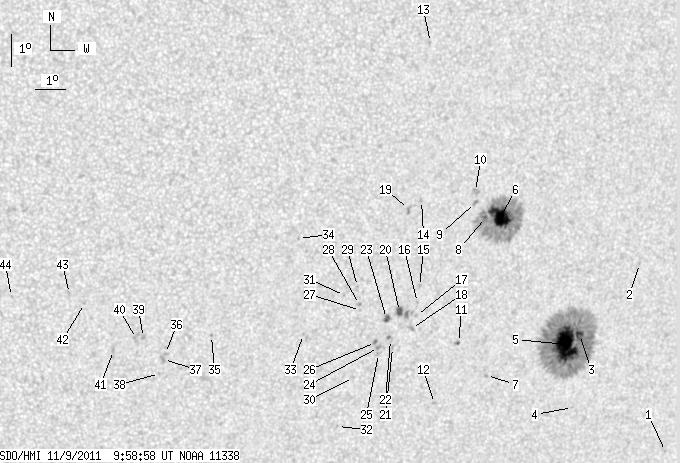

back to the solar disc SDO HMI 2011-11-09 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.52 | -18.76 | 127.95 | 37.21 | 237.32 | 0.6827 | 679.0 | 488.2 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -12.77 | 125.71 | 34.97 | 244.24 | 0.6230 | 606.0 | 489.9 | |
| 3.28 | 288.73 | 2.05 | 180.04 | -14.91 | 123.85 | 33.11 | 239.85 | 0.6127 | 754.5 | 353.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -17.21 | 124.02 | 33.29 | 236.69 | 0.6296 | -609.0 | -384.0 | |
| 39.40 | -3.00 | 24.56 | -3.00 | -15.21 | 123.42 | 32.69 | 239.11 | 0.6096 | 1188.1 | 999999 | |
| 22.85 | 147.94 | 13.50 | 87.47 | -11.15 | 120.48 | 29.75 | 243.25 | 0.5473 | 1174.3 | 351.3 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -16.09 | 120.68 | 29.95 | 235.65 | 0.5832 | 705.0 | 612.3 | |
| 1.12 | -6.00 | 0.66 | -6.00 | -11.16 | 119.96 | 29.23 | 242.83 | 0.5406 | 876.0 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.51 | -10.69 | 119.56 | 28.83 | 243.32 | 0.5324 | 909.0 | 720.8 | |
| 0.00 | 3.62 | 0.00 | 2.11 | -10.35 | 119.53 | 28.80 | 243.88 | 0.5299 | 623.0 | 686.7 | |
| 1.12 | 1.21 | 0.67 | 0.72 | -15.02 | 119.52 | 28.78 | 236.26 | 0.5615 | 671.5 | 820.0 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -16.92 | 118.97 | 28.24 | 232.90 | 0.5697 | -683.0 | -517.0 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -5.79 | 117.65 | 26.92 | 251.00 | 0.4784 | 702.0 | 512.4 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -10.58 | 117.70 | 26.97 | 242.00 | 0.5070 | 776.0 | 555.3 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -13.23 | 117.92 | 27.19 | 237.66 | 0.5286 | -595.0 | -424.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -13.73 | 117.92 | 27.18 | 236.84 | 0.5322 | -636.0 | -522.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -14.13 | 117.93 | 27.20 | 236.21 | 0.5355 | -604.0 | -466.5 | |
| 0.00 | 2.59 | 0.00 | 1.52 | -14.53 | 117.81 | 27.08 | 235.45 | 0.5372 | -598.0 | -477.8 | |
| 0.00 | 2.76 | 0.00 | 1.58 | -10.84 | 117.29 | 26.55 | 241.17 | 0.5032 | 1021.0 | 756.5 | |
| 4.31 | 10.95 | 2.51 | 6.38 | -13.99 | 117.33 | 26.60 | 235.86 | 0.5270 | -951.5 | -661.1 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -15.11 | 117.24 | 26.50 | 233.98 | 0.5348 | -713.0 | -517.7 | |
| 0.00 | 2.93 | 0.00 | 1.71 | -14.86 | 117.13 | 26.40 | 234.28 | 0.5315 | -518.0 | -611.7 | |
| 3.28 | 3.71 | 1.90 | 2.15 | -14.19 | 116.91 | 26.18 | 235.11 | 0.5235 | -818.3 | -737.8 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -15.09 | 116.75 | 26.02 | 233.51 | 0.5289 | -852.0 | -775.3 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -15.28 | 116.78 | 26.05 | 233.24 | 0.5308 | -672.0 | -481.2 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -14.94 | 116.63 | 25.90 | 233.64 | 0.5261 | -920.0 | -801.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -13.92 | 115.99 | 25.26 | 234.63 | 0.5100 | -621.0 | -456.2 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -13.73 | 115.94 | 25.20 | 234.88 | 0.5078 | -830.0 | -671.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.17 | 115.81 | 25.07 | 235.69 | 0.5016 | -595.0 | -469.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -16.02 | 116.02 | 25.29 | 231.31 | 0.5281 | -646.0 | -537.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -13.44 | 115.40 | 24.67 | 234.81 | 0.4987 | -688.0 | -461.2 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -17.56 | 115.69 | 24.96 | 228.64 | 0.5382 | -666.0 | -481.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -14.62 | 114.16 | 23.42 | 231.45 | 0.4938 | -676.0 | -591.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -11.63 | 113.69 | 22.96 | 236.10 | 0.4622 | -595.0 | -469.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.58 | 111.11 | 20.37 | 227.66 | 0.4577 | -784.0 | -596.9 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -15.11 | 109.66 | 18.92 | 224.71 | 0.4469 | -708.0 | -590.1 | |
| 0.00 | 2.93 | 0.00 | 1.62 | -15.30 | 109.61 | 18.88 | 224.33 | 0.4484 | -873.0 | -773.9 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -15.73 | 109.52 | 18.79 | 223.50 | 0.4522 | -692.0 | -544.9 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -14.59 | 108.90 | 18.16 | 224.41 | 0.4329 | -770.0 | -622.6 | |
| 0.00 | 3.19 | 0.00 | 1.75 | -14.62 | 108.67 | 17.94 | 224.01 | 0.4308 | -738.0 | -776.5 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -14.98 | 107.96 | 17.23 | 222.27 | 0.4272 | -834.0 | -612.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -13.50 | 106.92 | 16.19 | 223.03 | 0.3989 | -842.0 | -659.7 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -13.18 | 106.42 | 15.69 | 222.72 | 0.3898 | -754.0 | -618.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -13.24 | 104.60 | 13.86 | 219.13 | 0.3712 | -646.0 | -456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
