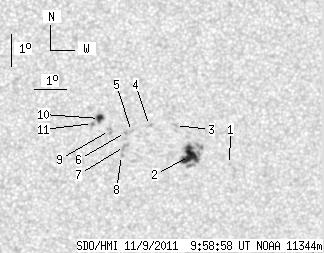

SDO HMI 2011-11-09 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.34 | 53.28 | 10.98 | 28.72 | -17.77 | 100.11 | 9.38 | 203.10 | 0.3961 | 76.2 | 11.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.34 | 102.17 | 11.43 | 206.88 | 0.4180 | 627.0 | 528.4 | |
| 16.55 | 32.42 | 8.96 | 17.55 | -18.07 | 100.88 | 10.14 | 204.52 | 0.4052 | 1029.1 | 654.0 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -17.07 | 100.38 | 9.65 | 204.53 | 0.3875 | -691.0 | -426.7 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -17.07 | 99.56 | 8.83 | 202.69 | 0.3820 | -834.0 | -674.7 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -17.25 | 99.00 | 8.27 | 201.21 | 0.3814 | -844.0 | -696.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.28 | 98.82 | 8.08 | 200.74 | 0.3808 | -867.0 | -847.8 | |
| 0.00 | 3.19 | 0.00 | 1.71 | -17.73 | 98.81 | 8.07 | 200.29 | 0.3875 | -865.0 | -704.9 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -18.01 | 98.72 | 7.99 | 199.83 | 0.3913 | -672.0 | -561.7 | |
| 0.00 | 2.59 | 0.00 | 1.38 | -17.21 | 98.31 | 7.58 | 199.61 | 0.3770 | -891.0 | -754.5 | |
| 3.79 | 4.74 | 2.02 | 2.53 | -16.83 | 97.98 | 7.25 | 199.18 | 0.3693 | -1026.5 | -792.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -16.99 | 97.77 | 7.04 | 198.51 | 0.3706 | -587.0 | -597.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
