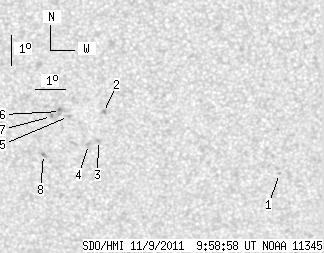

SDO HMI 2011-11-09 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.80 | 0.00 | 9.54 | -25.10 | 85.39 | -5.34 | 169.99 | 0.4889 | -172.9 | -110.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | -26.64 | 91.80 | 1.07 | 181.90 | 0.5047 | -619.0 | -503.4 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -24.57 | 86.03 | -4.70 | 171.00 | 0.4786 | 804.0 | 641.3 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -25.52 | 85.83 | -4.91 | 170.97 | 0.4934 | 500.0 | 466.0 | |
| 0.00 | 2.41 | 0.00 | 1.38 | -25.66 | 85.49 | -5.24 | 170.41 | 0.4963 | 820.0 | 608.5 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -24.71 | 84.88 | -5.86 | 168.91 | 0.4838 | -420.0 | -233.2 | |
| 0.00 | 4.40 | 0.00 | 2.48 | -24.55 | 84.62 | -6.11 | 168.36 | 0.4821 | -879.0 | -597.9 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -24.72 | 84.32 | -6.42 | 167.88 | 0.4856 | -711.0 | -445.5 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -26.01 | 83.98 | -6.75 | 167.89 | 0.5058 | -878.0 | -715.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
