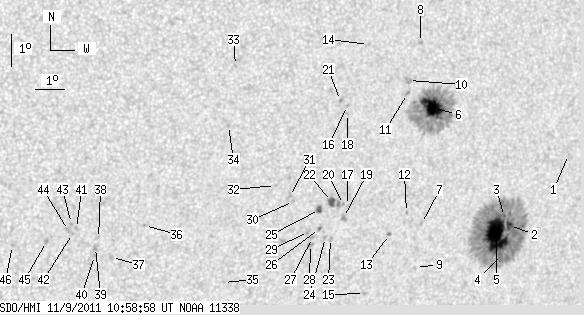

SDO HMI 2011-11-09 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.29 | 510.22 | 51.68 | 311.41 | -13.86 | 121.50 | 31.31 | 240.00 | 0.5842 | 401.5 | 248.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-09 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.66 | -12.79 | 125.65 | 35.46 | 244.51 | 0.6290 | 484.0 | 436.3 | |
| 4.14 | 284.55 | 2.60 | 178.50 | -14.93 | 123.81 | 33.63 | 240.19 | 0.6190 | 718.2 | 336.7 | |
| 0.95 | -2.00 | 0.59 | -2.00 | -14.64 | 123.58 | 33.39 | 240.45 | 0.6144 | 788.9 | 999999 | |
| 0.60 | -2.00 | 0.38 | -2.00 | -15.84 | 123.68 | 33.50 | 238.80 | 0.6231 | 274.9 | 999999 | |
| 44.82 | -2.00 | 28.11 | -2.00 | -15.23 | 123.39 | 33.20 | 239.46 | 0.6158 | 1172.0 | 999999 | |
| 23.10 | 150.25 | 13.73 | 89.34 | -11.17 | 120.46 | 30.27 | 243.62 | 0.5542 | 1142.9 | 340.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -14.76 | 120.59 | 30.41 | 238.03 | 0.5791 | 245.0 | 226.7 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -9.16 | 119.87 | 29.68 | 246.59 | 0.5348 | 714.0 | 532.8 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -16.14 | 120.60 | 30.42 | 235.98 | 0.5890 | 803.0 | 558.9 | |
| 0.00 | 4.40 | 0.00 | 2.58 | -10.31 | 119.56 | 29.38 | 244.39 | 0.5373 | 683.0 | 672.9 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -10.71 | 119.57 | 29.38 | 243.72 | 0.5398 | 961.0 | 799.5 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -14.40 | 120.00 | 29.82 | 238.10 | 0.5695 | -451.0 | -450.5 | |
| 1.38 | 1.64 | 0.83 | 0.98 | -15.07 | 119.50 | 29.32 | 236.65 | 0.5682 | 727.2 | 548.7 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -9.17 | 118.08 | 27.89 | 245.28 | 0.5105 | 702.0 | 519.1 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -16.91 | 118.91 | 28.73 | 233.38 | 0.5752 | -690.0 | -523.3 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -11.02 | 117.54 | 27.35 | 241.56 | 0.5149 | 689.0 | 620.1 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -14.12 | 117.90 | 27.71 | 236.71 | 0.5417 | -350.0 | -428.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -11.26 | 117.56 | 27.38 | 241.15 | 0.5169 | 719.0 | 498.7 | |
| 0.00 | 3.79 | 0.00 | 2.23 | -14.49 | 117.81 | 27.62 | 236.04 | 0.5434 | -671.0 | -491.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -14.08 | 117.76 | 27.57 | 236.64 | 0.5396 | -715.0 | -610.2 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -10.86 | 117.28 | 27.10 | 241.62 | 0.5105 | 916.0 | 790.9 | |
| 4.91 | 8.53 | 2.87 | 4.99 | -13.97 | 117.33 | 27.14 | 236.41 | 0.5336 | -916.8 | -728.8 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -15.13 | 117.45 | 27.26 | 234.69 | 0.5440 | -430.0 | -395.9 | |
| 0.00 | 1.55 | 0.00 | 0.91 | -15.10 | 117.27 | 27.08 | 234.57 | 0.5416 | -718.0 | -505.2 | |
| 3.36 | 3.53 | 1.96 | 2.06 | -14.21 | 116.95 | 26.76 | 235.66 | 0.5307 | -812.5 | -767.0 | |
| 1.03 | 2.16 | 0.61 | 1.26 | -14.81 | 117.02 | 26.84 | 234.79 | 0.5364 | -715.2 | -525.4 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -15.08 | 116.82 | 26.63 | 234.15 | 0.5361 | -882.0 | -711.6 | |
| 0.00 | 2.33 | 0.00 | 1.36 | -15.30 | 116.78 | 26.59 | 233.77 | 0.5374 | -669.0 | -517.3 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -14.89 | 116.66 | 26.47 | 234.30 | 0.5326 | -922.0 | -728.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -13.94 | 116.02 | 25.84 | 235.20 | 0.5172 | -745.0 | -614.8 | |
| 0.00 | 3.97 | 0.00 | 2.29 | -13.78 | 115.87 | 25.68 | 235.30 | 0.5140 | -718.0 | -453.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.42 | 115.35 | 25.17 | 235.36 | 0.5048 | -480.0 | -364.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -9.69 | 113.67 | 23.49 | 240.36 | 0.4539 | 719.0 | 509.0 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -11.52 | 113.59 | 23.41 | 236.81 | 0.4670 | -767.0 | -595.7 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -16.42 | 113.96 | 23.77 | 229.01 | 0.5143 | -672.0 | -509.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -14.56 | 111.11 | 20.93 | 228.45 | 0.4639 | -843.0 | -639.1 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -15.54 | 110.13 | 19.94 | 225.49 | 0.4627 | -693.0 | -476.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -14.93 | 109.64 | 19.46 | 225.79 | 0.4509 | -749.0 | -572.1 | |
| 0.00 | 3.10 | 0.00 | 1.72 | -15.21 | 109.57 | 19.39 | 225.22 | 0.4531 | -967.0 | -771.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -15.47 | 109.56 | 19.38 | 224.81 | 0.4557 | -792.0 | -661.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -14.61 | 108.90 | 18.71 | 225.23 | 0.4391 | -881.0 | -692.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -14.76 | 108.78 | 18.60 | 224.80 | 0.4395 | -733.0 | -609.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -14.45 | 108.72 | 18.54 | 225.23 | 0.4354 | -897.0 | -769.1 | |
| 0.00 | 3.02 | 0.00 | 1.66 | -14.66 | 108.64 | 18.46 | 224.75 | 0.4369 | -804.0 | -738.3 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -14.99 | 107.96 | 17.78 | 223.14 | 0.4331 | -906.0 | -654.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -15.10 | 106.88 | 16.69 | 221.20 | 0.4228 | -774.0 | -561.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
